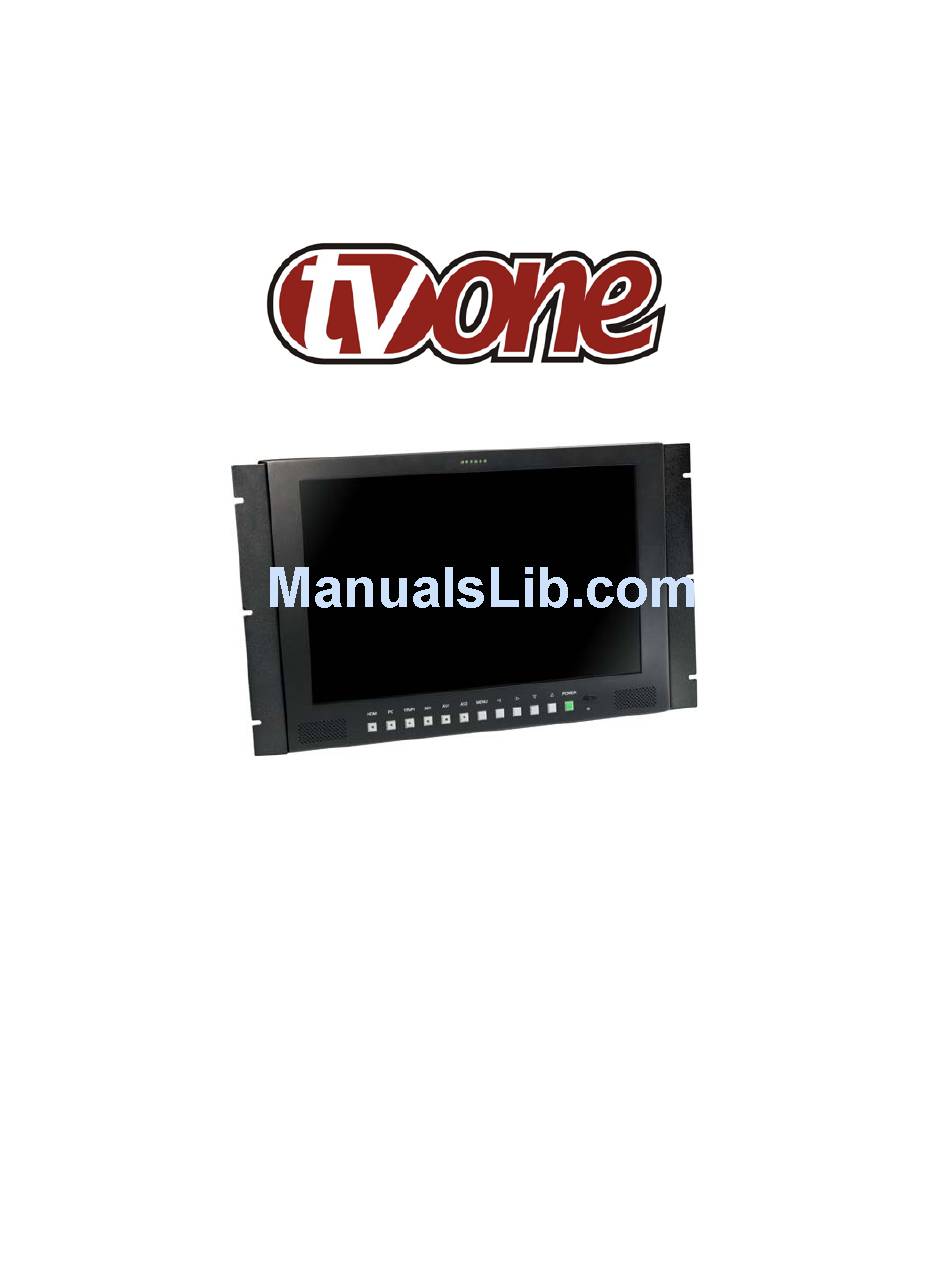

Page 1: Instruction Manual
Instruction Manual LM-1750HD Multiple Format 17” Color LCD Monitor... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
Task, AV Toolbox Logo and CORIO are the registered Trademarks of TV One. All other trademarks are the property of their respective holders. Features The LM-1750HD has many features that enable it to perform in a superior manner: • Inputs: SD/HD-SDI, HDMI, Analog RGBHV, Component, Composite and YC (S-Video) •... -
Page 5: Specifications
SPECIFICATIONS LCD Panel Display Size - Diagonal 17.1” (434mm) Display Area 14.45”x 9” (367.2 x 229.5mm) Panel Resolution 1440x900 Dot Pitch 0.255mm Color Resolution 16.7 Million Colors Contrast Ratio 800:1 Brightness 250 cd/m2 Response Time 8 msec Left/Right View Angle 130°... - Page 6 1152x864 60, 70, 72, 85Hz 1440x900 60, 70, 72, 85Hz Composite & S-Video Input Range Vert. Frequency NTSC 60Hz, PAL 50Hz Horiz. Frequency NTSC 15.75KHz, PAL 15.625KHz Audio Inputs Stereo Audio 4x via 2 RCA Connectors (R/L) Computer Audio 1x via 3.5mm Mini-Stereo Jack Tally Control Tally Input 1x via DB9 Connector...
-
Page 7: Checking Package Contents
Have the Model Number, Serial Number and Invoice available for reference when you call. CONNECTING THE HARDWARE Refer to the illustrations below. The first drawing is the front view of the LM-1750HD. This drawing will allow familiarization with the overall layout the unit. - Page 8 Four (4) pre-drilled and threaded attach points are provided in the center to allow mounting of the LM-1750HD directly to a wall or other structure using VESA 100mm standard mounts available from third party vendors. Please note that the rack ears remain in place, even when a VESA mount is used.
-
Page 9: Operating The Unit
OPERATION OF THE LM-1750HD After mounting the LM-1750HD in a rack and connecting the appropriate cables and the AC adapter, press the power button, select the appropriate input and adjust the vertical viewing angle if desired. Input selection is made by pressing the appropriate button on the front panel. The possible selections are HDMI, PC, YPbPr, SDI, AV1 (either Composite Video or S- Video, but not both at the same time) and AV2 (Composite Video). - Page 10 5.1.1 Menu Navigation: To utilize the menu and the OSD, press the Menu button. This makes the Menu list appear and you will then use the four arrow buttons to navigate the list and make adjustments. The up and down arrow buttons allow you to scroll through the list and the left and right arrow buttons allow an adjustment or selection to be made.
-
Page 11: Troubleshooting
If the signal is present under those conditions, make certain that power is present to the LM-1750HD. If it is, check all cables for damage. Cables should be undamaged, as short as possible and should be premium quality. -
Page 12: Regulatory Compliance
REGULATORY COMPLIANCE The LM-1750HD has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product... -
Page 13: Contacts
San-Min Rd, Panchiao City No.518 Shangcheng Road Taipei Hsien 220 Pudong, Shanghai Taiwan R.O.C. China 200120 Tel +886 2 8951-0674 Tel +86 21 5830-2960 Fax +886 2 8951-0675 Fax +86 21 5878-0161 sales.asia@tvone.com Email: sales.china@tvone.com www.tvoneasia.com Website: www.tvonechina.com End of Manual...
