Page 1: Instruction Manual

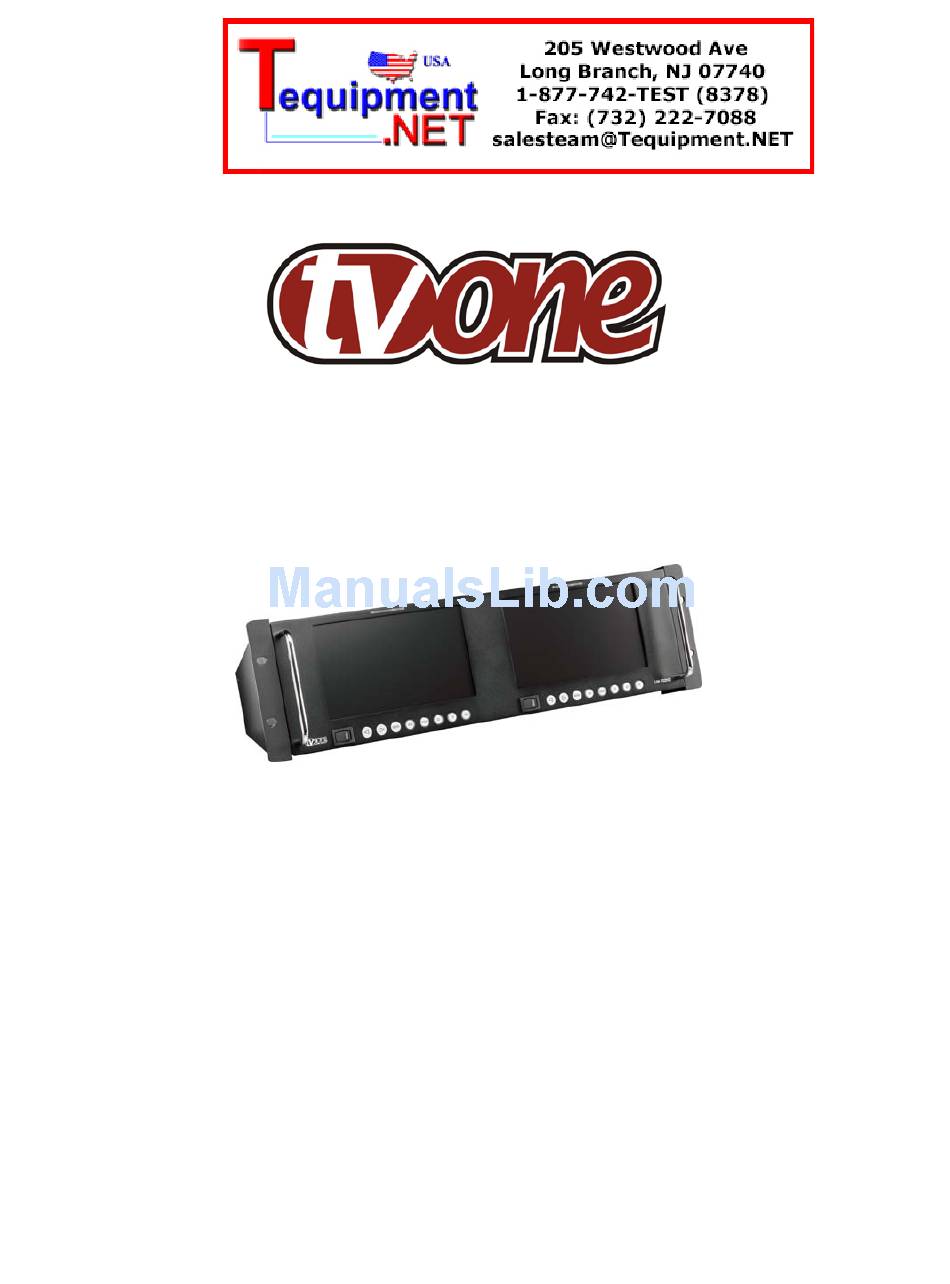

Instruction Manual LM-702HD High Definition Multiple Format Dual 7” Color LCD Monitor... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
INTRODUCTION The LM-702HD is a High Definition, Multi-format, Dual 7” Color LCD Monitor for the broadcast and professional market. A multitude of video signal formats may be accurately monitored. The high brightness, wide viewing angle, excellent contrast ratio and high definition color result in an outstanding image. Each monitor features 1x BNC... -
Page 5: Specifications
SPECIFICATIONS (Each Monitor) LCD Panel Panel Display Size – Diagonal 7.0” (434mm) Display Area 6.03”x 3.54” (153 x 90mm) Panel Resolution 1024x600 (16x9) Dot Pitch 0.15 mm Color Resolution 262,000 Colors Contrast Ratio 400:1 Brightness 250 cd/m2 Response Time 20 msec Left/Right View Angle 140°... -
Page 6: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1x LM-702HD Dual 7” Color LCD Monitor • 1x Operations Manual • 4x Rackmount Screws •... -
Page 7: Connecting The Hardware
CONNECTING THE HARDWARE Refer to the illustrations below. The first drawing is the front view of the LM-702HD. This drawing will allow familiarization with the overall layout the unit. The next drawing shows the Input and Output connectors plus the DC Power Input. -
Page 8: Operating The Unit
OPERATION OF THE LM-702HD After mounting the LM-702HD in a rack and connecting the appropriate cables and the AC adapter, press the power button on each monitor and select the appropriate inputs. Adjust the vertical viewing angle if desired and then use the On Screen Display (OSD) and Menu structure to make any changes you desire to the functionality of the individual monitors. -
Page 9: 6.0 Troubleshooting
6.0 TROUBLESHOOTING If either or both of the LM-702HD Dual 7” LCD Monitors do not appear to be functioning properly, be certain that the source and any other device connected to the unit is functioning correctly by connecting each device currently connected to the LM-702HD to another monitor. -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE The LM-702HD Dual 7” Monitor has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or...
