Summary of Contents for TV One LM-1750HD
-

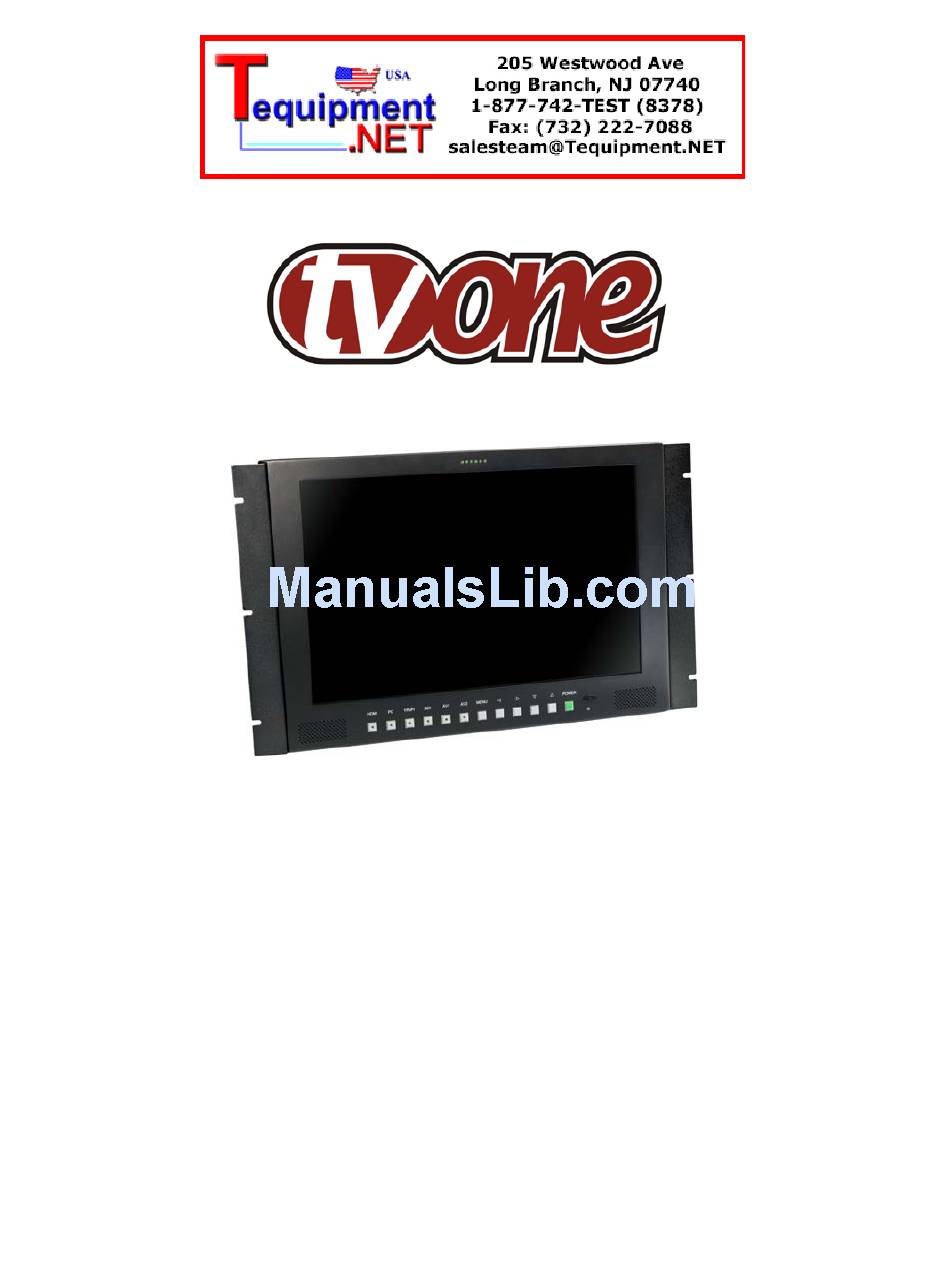

Page 1: Instruction Manual
Instruction Manual LM-1750HD Multiple Format 17” Color LCD Monitor... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
Switchers, Signal Distribution Amplifiers and Cat.5 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. -
Page 5: Specifications
SPECIFICATIONS LCD Panel Display Size - Diagonal 17.1” (434mm) Display Area 14.45”x 9” (367.2 x 229.5mm) Panel Resolution 1440x900 Dot Pitch 0.255mm Color Resolution 16.7 Million Colors Contrast Ratio 800:1 Brightness 250 cd/m2 Response Time 8 msec Left/Right, Up/Down View Angle 160°... - Page 6 Composite & S-Video Input Vert. Frequency NTSC 60Hz, PAL 50Hz Horiz. Frequency NTSC 15.75KHz, PAL 15.625KHz Audio Inputs Stereo Audio 4x via 2 RCA Connectors (R/L) Computer Audio 1x via 3.5mm Mini-Stereo Jack Tally Control Tally Input 1x via DB9 Connector General Display Element Active Matrix TFT...
-
Page 7: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. - Page 8 Four (4) pre-drilled and threaded attach points are provided in the center to allow mounting of the LM-1750HD directly to a wall or other structure using VESA 100mm standard mounts available from third party vendors. Please note that the rack ears remain in place, even when a VESA mount is used.
-
Page 9: Operating The Unit
OPERATION OF THE LM-1750HD After mounting the LM-1750HD in a rack and connecting the appropriate cables and the AC adapter, press the power button, select the appropriate input and adjust the vertical viewing angle if desired. Input selection is made by pressing the appropriate button on the front panel. The possible selections are HDMI, PC, YPbPr, SDI, AV1 (either Composite Video or S- Video, but not both at the same time) and AV2 (Composite Video). - Page 10 5.1.1 Menu Navigation: To utilize the menu and the OSD, press the Menu button. This makes the Menu list appear and you will then use the four arrow buttons to navigate the list and make adjustments. The up and down arrow buttons allow you to scroll through the list and the left and right arrow buttons allow an adjustment or selection to be made.
-
Page 11: Troubleshooting
If the signal is present under those conditions, make certain that power is present to the LM-1750HD. If it is, check all cables for damage. Cables should be undamaged, as short as possible and should be premium quality. -
Page 12: Regulatory Compliance
TV One makes no other representation of warranty as to fitness for the purpose or merchantability or otherwise in respect of any of the products sold. The liability of TV One with respect to any defective products will be limited to the repair or replacement of such products.
