Page 1: Instruction Manual

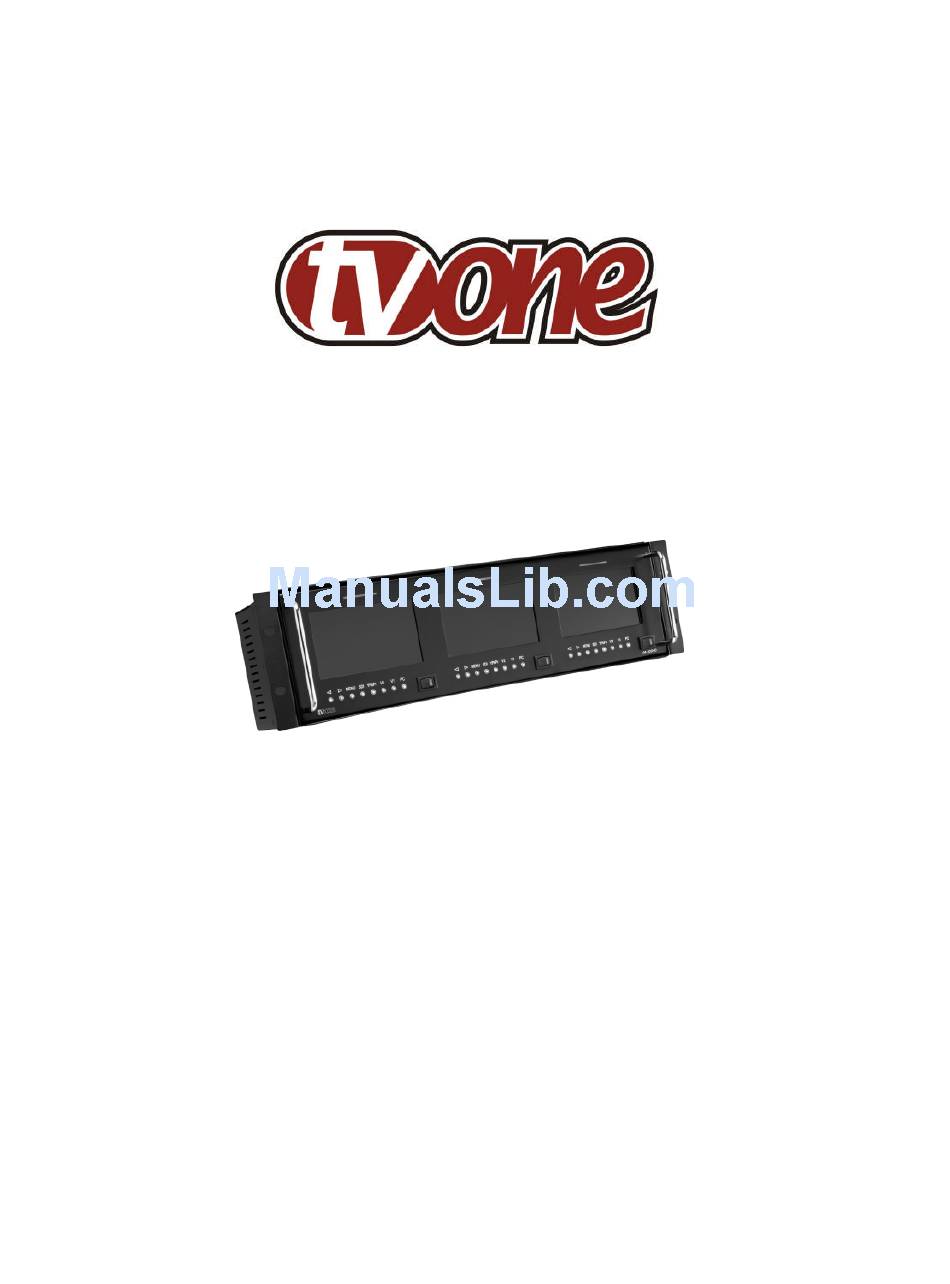

Instruction Manual LM-503HD High Definition Multiple Format Triple 5” Color LCD Monitors... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
Front panel Tally LED’s for each monitor can be activated externally via the DB9 connector. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 5: Specifications
Specifications LCD Panel Display Size – Diagonal 5.0” (127mm) Display Area 4.25”x 2.55” (108 x 64.8mm) Panel Resolution 800x480 (16x9) Dot Pitch 0.135mm Color Resolution 16.7 Million Colors Contrast Ratio 600:1 Brightness 300 cd/m2 Response Time 25 msec Left/Right View Angle 170... -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you... -
Page 7: Connecting The Hardware
CONNECTING THE HARDWARE Refer to the illustrations below. The first drawing is the front view of the LM-503HD. This drawing will allow familiarization with the overall layout the unit. The next drawing shows the Input and Output connectors plus the DC Power Input. -
Page 8: Operating The Unit
OPERATION OF THE LM-503HD After mounting the LM-503HD in a rack and connecting the appropriate cables and the AC adapter, press the power button on each monitor and select the appropriate inputs. Adjust the vertical viewing angle if desired and then use the On Screen Display (OSD) and Menu structure to make any changes you desire to the functionality of the individual monitors. -
Page 9: 6.0 Troubleshooting
6.0 TROUBLESHOOTING If any of the LM-503HD’s 5” LCD Monitors do not appear to be functioning properly, be certain that the source and any other device connected to the unit is functioning correctly by connecting each device currently connected to the LM-503HD to another monitor. -
Page 10: Regulatory Compliance
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. -
Page 11: Contacts
Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.eu TV One Latin America TV One Mercosur 6991 NW 82 Avenue #8 Av. Diaz Velez 3965 #PB Miami, FL 33166 (1200) Capital Federal Buenos Aires, Argentina...
