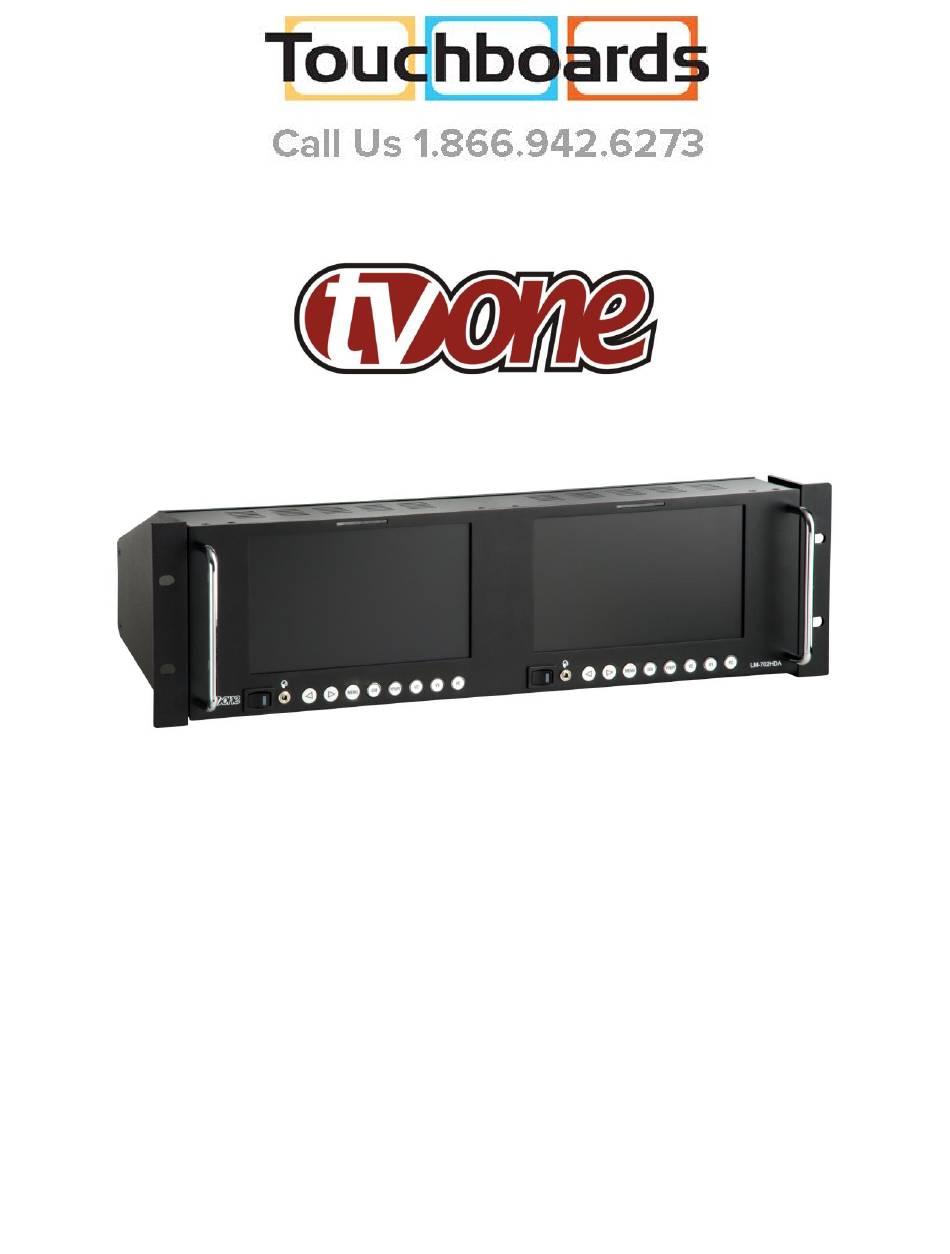

- Page 1 Instruction Manual LM-702HDA High Definition Multiple Format Dual 7” Color LCD Monitors With Audio...
-
Page 4: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 5: Introduction
Front panel Tally LED’s for each monitor can be activated externally via the DB9 connector. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 6: Specifications
SPECIFICATIONS (Each Monitor) LCD Panel Panel Display Size – Diagonal 7.0” (177mm) 6.03” x 3.54” (153 x 90mm) Display Area Panel Resolution 1024 x 600 (16:9) Dot Pitch 0.15 mm Color Resolution 262,000 Colors Contrast Ratio 400:1 Brightness 250 cd/m2 Response Time 20 msec Left/Right View Angle... -
Page 7: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you... -
Page 8: Connecting The Hardware
CONNECTING THE HARDWARE Refer to the illustrations below. The first drawing is the front view of the LM-702HDA. This drawing will allow familiarization with the overall layout of the unit. The next drawing shows the Input and Output connectors plus the DC Power Input. -
Page 9: Operating The Unit
OPERATION OF THE LM-702HDA After mounting the LM-702HDA in a rack and connecting the appropriate cables and the AC adapter, press the power button on each monitor and select the appropriate inputs. Adjust the vertical viewing angle if desired and then use the On Screen Display (OSD) and Menu structure to make any changes you desire to the functionality of the individual monitors. -
Page 10: 6.0 Troubleshooting
Resets the settings back to the factory default 6.0 TROUBLESHOOTING If either or both of the LM-702HDA Dual 7” LCD Monitors do not appear to be functioning properly, be certain that the source and any other device connected to the unit is functioning correctly by connecting each device currently connected to the LM- 702HDA to another monitor. -
Page 11: Limited Warranty
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. -
Page 12: Regulatory Compliance
REGULATORY COMPLIANCE The LM-702HDA Dual 7” Monitor has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant.
