BAFFLE SETTINGS

Each baffle is factory set base on the type of appliance under the hood.
REV-LOW MAINTENANCE INSTRUTIONS
Hood with Spring Air Systems RPD Controller
At the start of the day
1. Rotate the occupied/Unoccupied switch to the occupied position to start the exhaust system.
The exhaust fan(s) will turn on and after a minute time delay the supply unit(s) will turn on.
2. Check each hood for air movement in the slot. Put your hand up to the entrance of the slot
and feel if there is air movement. The air movement should feel the strongest over the heavy
appliances. (broilers)
Check Air Flow in slot
3. If there is no air movement check if the green fan light on the Spring Air remote panel is on (If
not check the breaker panel or fuse), check if the motor starters have pulled in (Press the red
reset button), and finally check fan belts in exhaust fan(s) on the roof. Then call a
serviceman.
4. Go to the makeup air diffusers and check for air movement from the supply unit. If no air
movement check, motor starter (push red reset button), check fan belts on unit on roof, call a
serviceman.
5. Check that all the grease inserts are in the hoods and installed properly.

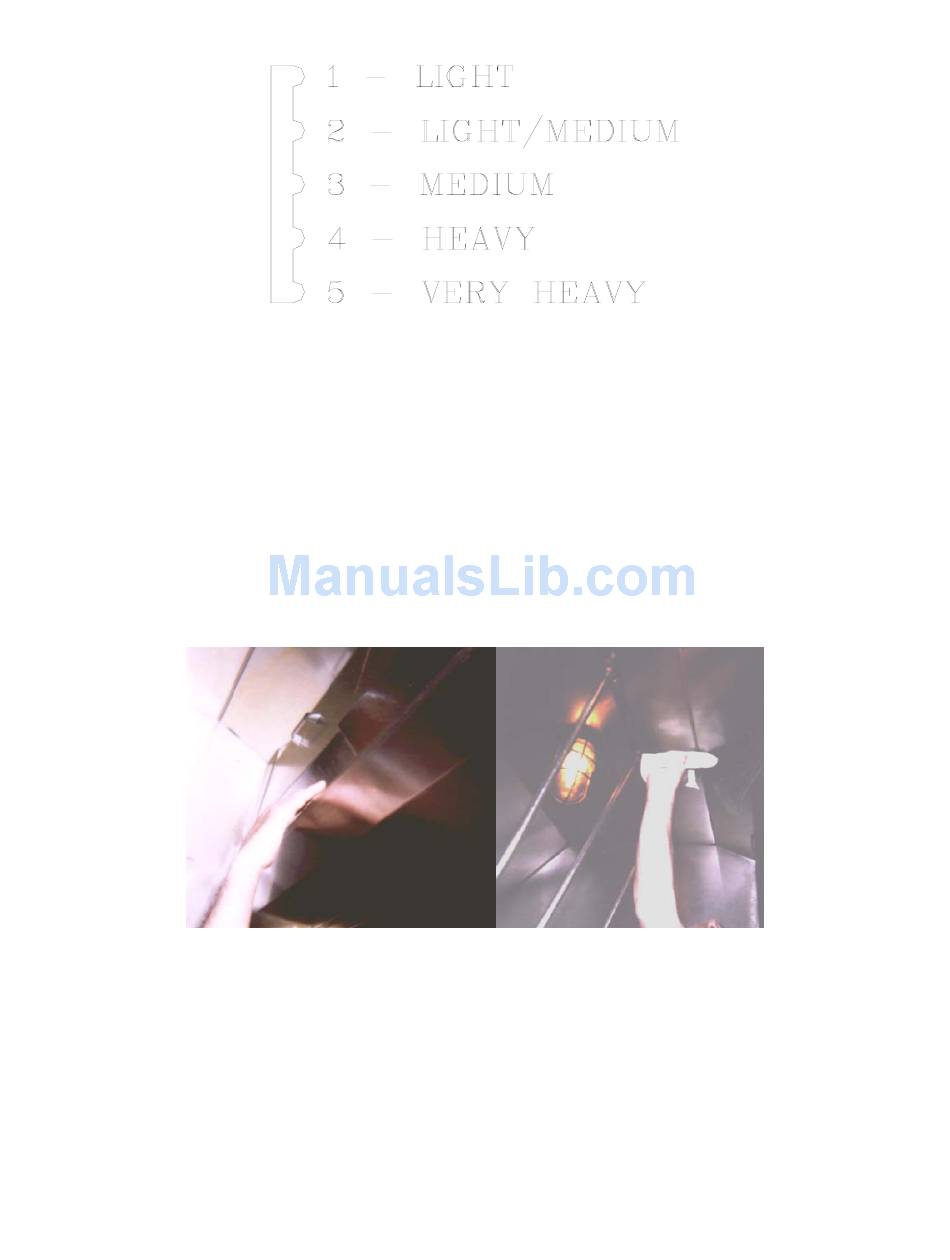

Vary-flow Baffle labeling
Figure 5
DN-Rev-LOW Maintenance and Operating
Wiping Interior of Hood
Manual
