DN REV-LOW Maintenance and Operating Manual
ULC/UL Listed Exhaust Hood without Exhaust Fire Damper

INTRODUCTION

Thank you for selecting a SPRING AIR SYSTEMS INC. Commercial kitchen exhaust Rev-Low
dry extractor. Your system consists of a dry extractor, exhaust fan and on/off switch. Others may
have supplied the exhaust fan and on/off operator.
Your SPRING AIR SYSTEMS INC. Dry extractor model was selected to best meet the design
requirements of your commercial kitchen application.
The DN series dry ventilator is a UL/ULC listed "Exhaust Hood without Exhaust Fire Damper".

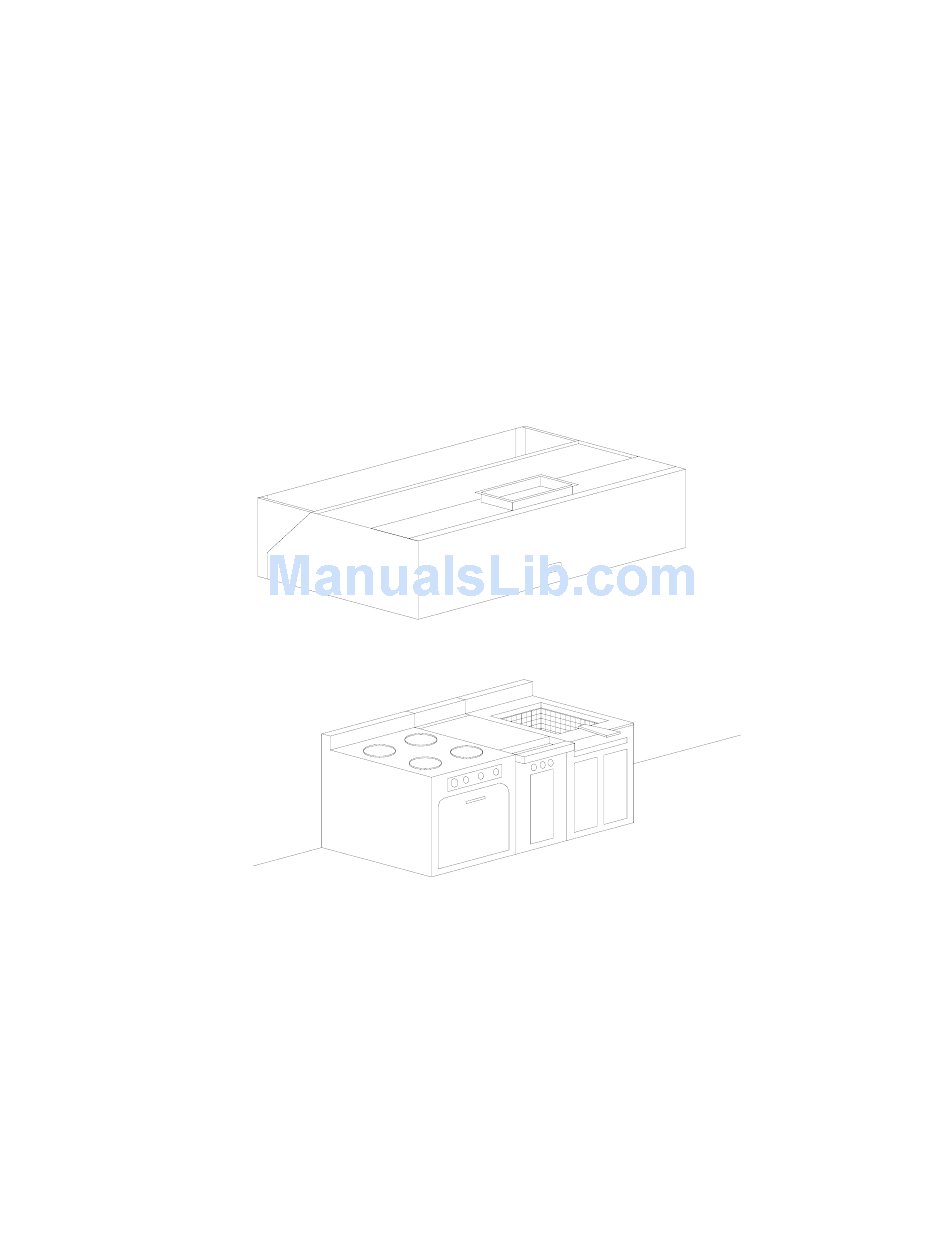

Typical SPRING AIR SYSTEMS Dry Rev-Low Ventilator Installation
Figure 1
An ON/OFF selector switch located in the kitchen area or mounted on the exhaust fan starter coil
electrical enclosure normally controls the exhaust fan.
Manual
1
DN-Rev-LOW Maintenance and Operating
