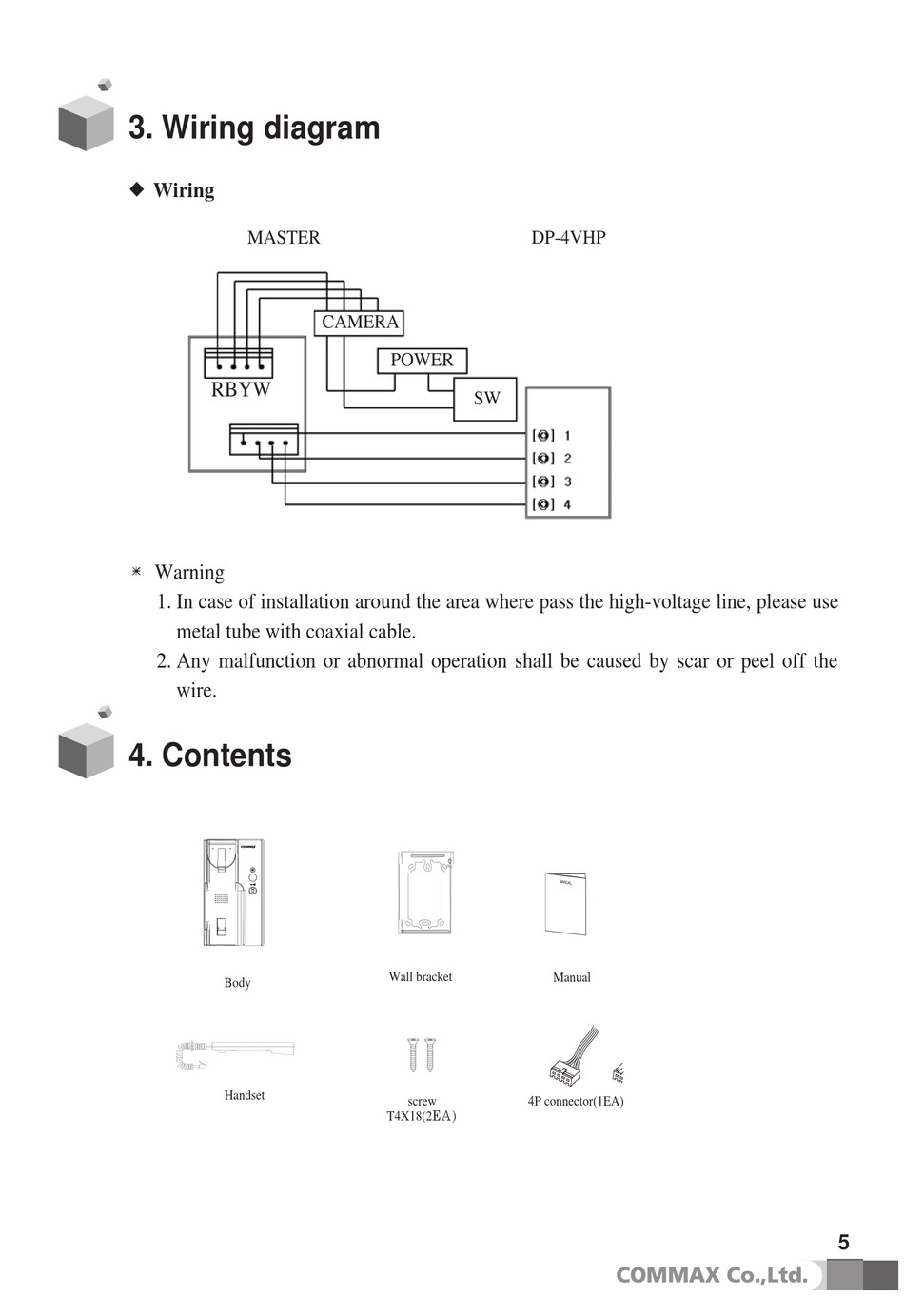

3. Wiring diagram
Wiring
MASTER
RBYW
Warning
1. In case of installation around the area where pass the high-voltage line, please use
metal tube with coaxial cable.
2. Any malfunction or abnormal operation shall be caused by scar or peel off the
wire.
4. Contents
Body
Handset
CAMERA
POWER
SW
Wall bracket
screw
T4X18(2EA)
DP-4VHP
Manual
4P connector(1EA)
