User Manual of Network Camera
2. Check the checkbox of Enable IP Address Filter.
3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed
are selectable.
4. Set the IP Address Filter list.
 Add an IP Address
Steps:
(1) Click the Add to add an IP.
(2) Input the IP Adreess.
(3) Click the OK to finish adding.
 Modify an IP Address
Steps:
(1) Left-click an IP address from filter list and click Modify.
Lo-Call 1890 866 900

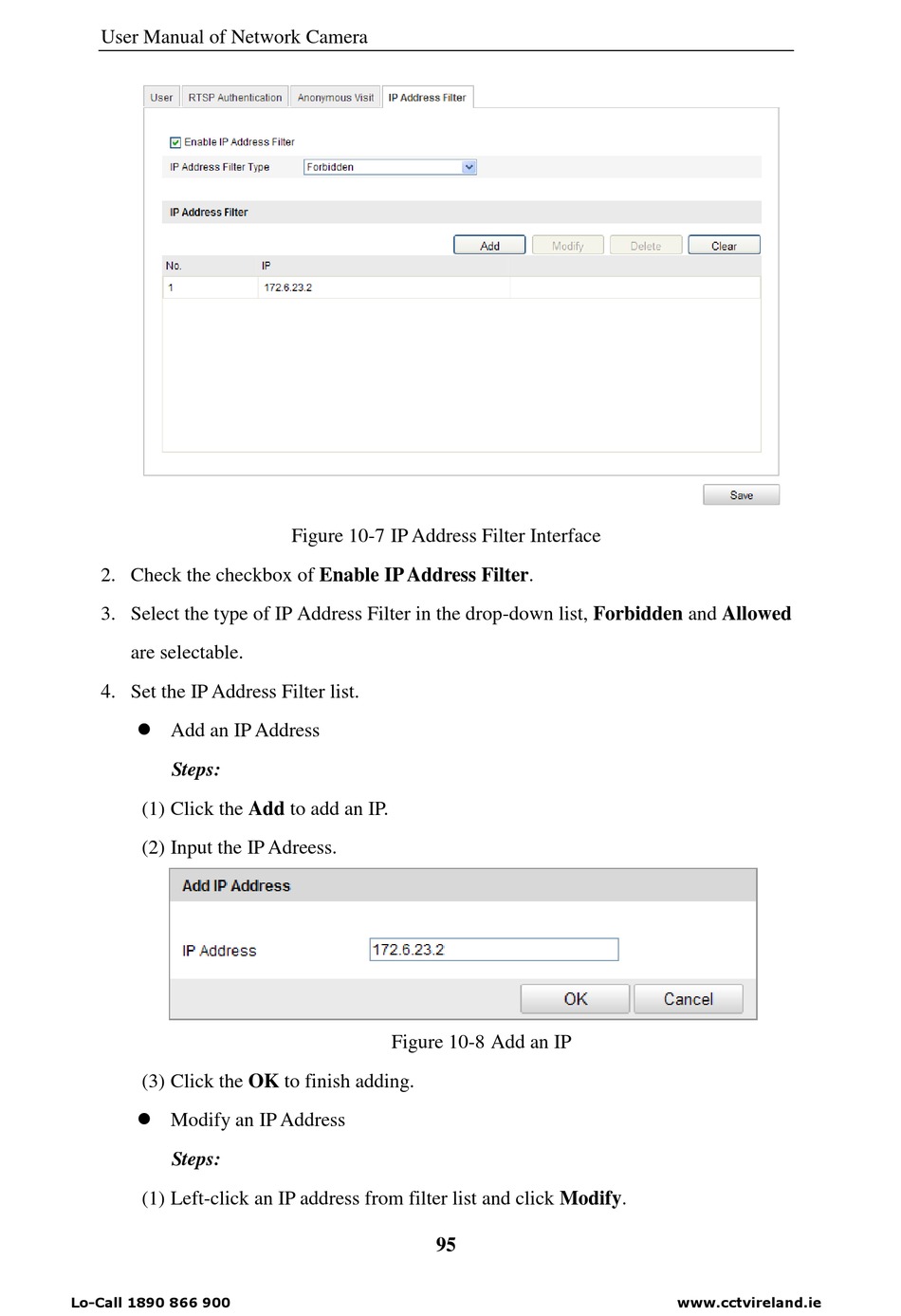

Figure 10-7 IP Address Filter Interface
Figure 10-8 Add an IP
95
