HIKVISION DS-2DF6A436X-AEL User Manual

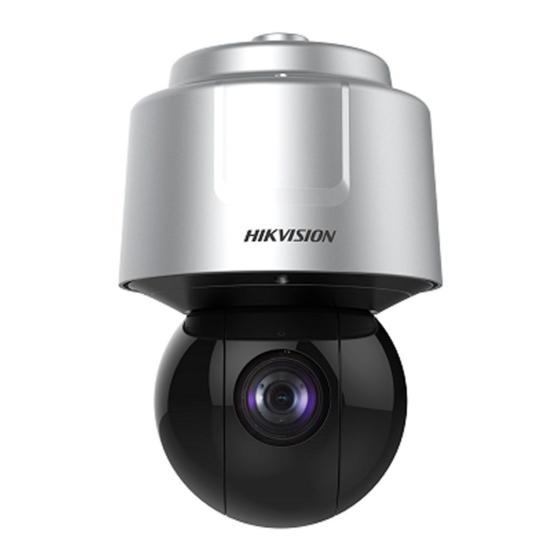

Network speed dome
Hide thumbs Also See for DS-2DF6A436X-AEL:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Speed Dome
User Manual
UD11248B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2DF6A436X-AEL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-2DF6A436X-AEL

Summary of Contents for HIKVISION DS-2DF6A436X-AEL

  • Page 1 Network Speed Dome User Manual UD11248B...
  • Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
  • Page 3 IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. 0505081080803 © Hikvision...
  • Page 4 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements. © Hikvision...
  • Page 5  Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on vibratory surface or places.  Do not expose it to high electromagnetic radiating environment. © Hikvision...
  • Page 6  Use a soft and dry cloth when clean inside and outside surfaces of the product cover. Do not use alkaline detergents.  Improper use or replacement of the battery may result in hazard of explosion. Use the manufacturer recommended battery type. © Hikvision...

  • Page 7: Table Of Contents

    Configuring Recording Schedule ..................33 5.1.2 Configuring Capture Schedule ................... 35 5.1.3 Configuring Net HDD ......................36 ....................... 38 ASIC VENT ONFIGURATION 5.2.1 Configuring Motion Detection ................... 39 5.2.2 Configuring Video Tampering Alarm ................. 44 5.2.3 Configuring Alarm Input ....................45 © Hikvision...
  • Page 8 Configuring Text Overlay Settings ..................98 6.3.4 Configuring Image Parameters Switch................98 ....................100 ONFIGURING YSTEM ETTINGS 6.4.1 System Settings ........................ 100 6.4.2 Maintenance ........................104 6.4.3 Security ..........................107 6.4.4 User Management ......................109 APPENDIX ............................113 © Hikvision...
  • Page 9 SADP S ......................113 OFTWARE NTRODUCTION © Hikvision...

  • Page 10: Chapter 1 Overview

    This function allows you to block or mask certain area of a scene, for preventing the personal privacy from recording or live viewing. A masked area will move with pan and tilt functions and automatically adjust in size as the lens zooms telephoto and wide.  3D Positioning © Hikvision...
  • Page 11  Scheduled Task A time task is a preconfigured action that can be performed automatically at a specific date and time. The programmable actions include: auto scan, random scan, patrol 1-8 ,pattern 1-4, preset © Hikvision...
  • Page 12 Comparing with the general 2D digital noise reduction, the 3D digital noise reduction function processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer. © Hikvision...

  • Page 13: Chapter 2 Network Connection

    Figure 2-1.  Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router. Network Cable Network Speed Dome Computer Figure 2-1 Connecting Directly © Hikvision...

  • Page 14: Activating The Camera

    The password should be something of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product. © Hikvision...
  • Page 15  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. © Hikvision...
  • Page 16 Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera. Steps: Run the client software and the control panel of the software pops up, as shown in Figure 2-6. © Hikvision...
  • Page 17 Figure 2-7 Device Management Interface Check the device status from the device list, and select an inactive device. Click Activate to pop up the Activation interface. Create a password and input the password in the password field, and confirm the password. © Hikvision...
  • Page 18 Figure 2-9 Modifying the Network Parameters Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the Enable DHCP checkbox. Input the password to activate your IP address modification. © Hikvision...

  • Page 19: Optional) Setting Security Question

    Connecting the network camera with static IP directly You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the camera. © Hikvision...

  • Page 20: Dynamic Ip Connection

    This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 6.1.1 Configuring PPPoE Settings for detailed configuration. © Hikvision...
  • Page 21 1. Apply a domain name from a domain name provider. 2. Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 6.1.1 Configuring DDNS Settings for detailed configuration. 3. Visit the camera via the applied domain name. © Hikvision...

  • Page 22: Chapter 3 Accessing To The Network Speed Dome

    6. Install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in. You may have to close the web browser to install the plug-in. Reopen the web browser and log in again after installing the plug-in. © Hikvision...

  • Page 23: Accessing By Client Software

    Follow the installation prompts to install the client software and WinPcap. The configuration interface and live view interface of client software are shown in Figure 3-2. Figure 3-2 iVMS-4200 Control Panel Figure 3-3 iVMS-4200 Main Interface © Hikvision...
  • Page 24 If you use third party VMS software, contact technical support of our branch for camera firmware.  For detailed information about client software of our company, refer to the user manual of the software. This manual mainly introduces accessing to the network camera by web browser. © Hikvision...

  • Page 25: Chapter 4 Basic Operations

    Display POS Information: Enable the function, feature information of the detected target is dynamically displayed near the target in the live image.  Image Format: The captured pictures can be saved as different format. JPEG and BMP are available. © Hikvision...

  • Page 26: Live View Page

    Log in the network camera to enter the live view page, or you can click on the menu bar of the main page to enter the live view page. The functions vary depeding on different camera models. Refer to the actual interface as standard. Descriptions of the live view page: © Hikvision...

  • Page 27: Starting Live View

    Configure the image size, stream type, plug-in type, and two-way audio of the live video. 4.4 Starting Live View In the live view window as shown in Figure 4-3, click on the toolbar to start the live view of the network. © Hikvision...
  • Page 28 4:3/16:9/ original/self-adaptive window size.  Click to select from and display live video with the main/ sub/third stream. The main stream is with a relatively high resolution and needs much bandwidth. The default setting of stream type is © Hikvision...

  • Page 29: Operating Ptz Control

    Section 6.2.1 Configuring Video Settings.  Setting the OSD text on live video in Section 6.3.2 Configuring OSD Settings. 4.5 Operating PTZ Control Purpose: In the live view interface, you can use the PTZ control buttons to control panning, tilting and zooming. © Hikvision...

  • Page 30: Ptz Control Panel

    Click and the camera keeps PTZ Control Panel panning, the icon turns into Click the icon again to stop the camera. Click , the lens zooms in, click Zoom out/in , and the lens zooms out. © Hikvision...

  • Page 31: Auxiliary Functions

    Table 4-3 Descriptions of Buttons Buttons Description Start the selected patrol/pattern. Stop current patrol/pattern. Set the selected preset/patrol. Delete the selected preset/patrol/pattern. Start recording a pattern. Stop recording the pattern. 4.5.2 Auxiliary Functions The Auxiliary functions panel is shown in Figure 4-5. © Hikvision...
  • Page 32 For detailed information of setting one-touch patrol, refer to 4.5.5 One-touch Patrol.  One-touch Park Click to save the current view as the preset No. 32 and start park at the the current position. © Hikvision...

  • Page 33: Setting/Calling A Preset

    In the PTZ control panel, select a defined preset from the list and click to call the preset. Figure 4-7 Calling a Preset For convenient preset selection, refer to the following steps to navigate to the preset you want. © Hikvision...
  • Page 34 Call patrol 8 Figure 4-8 Special Preset Note: You may need to use the OSD (On Screen Display) menu when controlling the camera remotely. To display the OSD menu on the live view screen, you can call the preset number © Hikvision...

  • Page 35: Setting/Calling A Patrol

    6. Repeat the steps from 3 to 5 to add more presets. 7. Click OK to save all the patrol settings.  Calling a Patrol: In the PTZ control panel, select a defined patrol from the list and click to call the patrol, as shown in Figure 4-10. © Hikvision...

  • Page 36: One-Touch Patrol

    2. Call preset No. 45, and the camera moves as patrol path 8. 3. Click to enter the patrol settings interface and start/stop one-touch patrol, edit the patrol time and the speed. 4. You can click of the PTZ control panel to start one-touch patrol. Figure 4-11 Patrol Path 8 © Hikvision...

  • Page 37: Setting/Calling A Pattern

     Buttons on the Patterns interface: Buttons Description Start the selected patrol/pattern. Stop current patrol/pattern. Set the selected preset/patrol. Delete the selected preset/patrol/pattern. Start recording a pattern. Stop recording the pattern. Note: © Hikvision...

  • Page 38: Playback

    Internet Explorer 8.0 and its above version. 4.6.1 Play Back Video Files Steps: Click on the menu bar to enter playback interface. Figure 4-13 Playback Interface Select the date and click © Hikvision...
  • Page 39 Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the Set playback time field. You can also click to zoom out/in the progress bar. Figure 4-16 Set Playback Time © Hikvision...

  • Page 40: Downloading Video Files

    Check the checkbox in front of the video files that you need to download. Click to download the video files. 4.7 Pictures Purpose: This section explains how to view the captured picture files stored in the network disks or the memory cards and download the captured pictures. © Hikvision...
  • Page 41 Select the file type of capturing the pictures from the list as timing, alarm, motion, etc. Set the start time and end time. Click Search. The corresponding picture files will be listed. Check the checkbox in front of the files that you need to download. Click to download the files. © Hikvision...

  • Page 42: Chapter 5 System Configuration

    Configuration > Storage > Schedule Settings > Record Schedule Figure 5-1 Recording Schedule Interface 2. Check the checkbox of Enable to enable scheduled recording. 3. To set the advanced settings of the camera, click to enter the advanced settings interface. © Hikvision...
  • Page 43 Channel in the Linkage Method of Alarm Input settings interface. For detailed information, refer to Section Alarm Input.  Record Triggered by Motion & Alarm: If you select Motion & Alarm, the video will be recorded when the motion and alarm are triggered at the same time. Besides © Hikvision...

  • Page 44: Configuring Capture Schedule

    After you set the scheduled task, you can click and copy the task to other days (optional). After setting the capture schedule, you can click a capture segment to display the segment capture settings interface to edit the segment capture parameters. (optional) © Hikvision...

  • Page 45: Configuring Net Hdd

    Check Upload to FTP checkbox in Motion Detection Settings or Alarm Input interface. Refer to Section 5.2.1 Configuring Motion Detection. Check the Enable Event-triggered Snapshot checkbox. 5.1.3 Configuring Net HDD Before you start: The network disk should be available within the network and properly configured to store the © Hikvision...
  • Page 46 After having saved successfully, you need to reboot the camera to activate the settings.  Initialize the added network disk. 1. Enter the HDD settings interface (Configuration > Storage > Storage Management > HDD Management), in which you can view the capacity, free space, status, type and property of the disk. © Hikvision...

  • Page 47: Basic Event Configuration

    Up to 8 NAS disks can be connected to the camera.  To initialize and use the memory card after insert it to the camera, refer to the steps of NAS disk initialization 5.2 Basic Event Configuration Purpose: © Hikvision...

  • Page 48: Configuring Motion Detection

    You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view. Select the configuration mode as Normal or Expert and set the corresponding motion detection parameters.  Normal © Hikvision...
  • Page 49 (2) Click to finish drawing. Note: You can click to clear all of the areas. (3) Move the slider to set the sensitivity of the detection.  Expert © Hikvision...
  • Page 50 (2) Select Area from the dropdown list to configure. (3) Set the value of sensitivity. Sensitivity: The greater the value is, the easier the alarm will be triggered. Set the Arming Schedule for Motion Detection. (1) Click tab to enter the arming schedule setting interface. © Hikvision...
  • Page 51 (optional). Figure 5-12 Arming Time Schedule (4) After setting the arming schedule, you can click a segment to display the segment arming settings interface to edit the segment record parameters (optional). Figure 5-13 Segment Arming Settings © Hikvision...
  • Page 52 To send the Email when an event occurs, you need to refer to Section Configuring Email Settings to set the Email parameters.  Upload to FTP/Memory/NAS Capture the image when an alarm is triggered and upload the picture to a FTP server. Note: © Hikvision...

  • Page 53: Configuring Video Tampering Alarm

    You can configure the camera to trigger the alarm actions when the lens is covered. Steps: 1. Enter the Video Tampering settings interface : Configuration > Event > Basic Event > Video Tampering Figure 5-15 Tampering Alarm 2. Check Enable checkbox to enable the tampering detection. © Hikvision...

  • Page 54: Configuring Alarm Input

    Figure 5-16 Alarm Input Settings 4. Click tab to enter the arming schedule setting interface. The arming schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection. © Hikvision...

  • Page 55: Configuring Alarm Output

    5. Click tab to enter the arming schedule setting interface. The time schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection. © Hikvision...

  • Page 56: Handling Exception

    Steps: Enter the Exception settings interface: Configuration > Event > Basic Event > Exception 2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Section 5.2.1 Configuring Motion Detection. © Hikvision...

  • Page 57: Smart Event Configuration

    5.3.1 Detecting Audio Exception Purpose: When you enable this function and audio exception occurs, the alarm actions will be triggered. Steps: Enter the video audio exception detection interface: Configuration > Event > Smart Event > Audio Exception Detection © Hikvision...
  • Page 58 6. Click tab to select the linkage method taken for the audio input exception, Notify Surveillance Center, Send Email, Trigger Alarm Output and Trigger Recording are selectable. Refer to Section 5.2.1 Configuring Motion Detection. Click to save the settings. © Hikvision...

  • Page 59: Configuring Face Detection

    Intrusion detection can set an area in the surveillance scene and once the area is entered, a set of alarm action is triggered. Steps: 1. Enter the intrusion detection interface: Configuration > Events > Smart Event >Intrusion Detection 2. Check the Enable checkbox. © Hikvision...
  • Page 60 0, alarm is triggered immediately after the object entering the region.  Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which can trigger the alarm, when the sensitivity is high, a very small object can trigger the alarm. © Hikvision...

  • Page 61: Configuring Line Crossing Detection

    4. The event triggered and park action related PTZ movement will be locked for 180 seconds after you enter the line crossing detection interface. Optionally, you can click the button to manually activate the movement, or lock the movement when the button turns to by clicking it. © Hikvision...
  • Page 62 1 region and save it. Then continue to set and save the next region. 7. Click tab to enter the arming schedule setting interface. The time schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection. © Hikvision...

  • Page 63: Configuring Region Entrance Detection

    Configuration> Event > Smart Event> Region Entrance Detection 2. Check the checkbox of Enable to enable the Region Entrance Detection function. Figure 5-24 Configuring Region Entrance Detection 3. The event triggered and park action related PTZ movement will be locked for 180 seconds © Hikvision...

  • Page 64: Configuring Region Exiting Detection

    Steps: 1. Enter the Region Exiting Detection settings interface: Configuration> Event > Smart Event> Region Exiting Detection 2. Check the checkbox of Enable to enable the Region Exiting Detection function. © Hikvision...
  • Page 65 The time schedule configuration is the same as the settings of the arming schedule for motion detection. Refer to Section 5.2.1 Configuring Motion Detection. 10. Click tab to select the linkage method taken for the region exiting alarm, © Hikvision...

  • Page 66: Unattended Baggage Detection

    Optionally, you can click the button to manually activate the movement, or lock the movement when the button turns to by clicking it. Select the region from the dropdown list for detection settings. © Hikvision...

  • Page 67: Object Removal Detection

    Click on the live video to specify the four vertexes of the detection region, and right click to complete drawing. Repeat the step to configure other regions. Up to 4 regions can be set. You can click the button to clear all pre-defined regions. © Hikvision...

  • Page 68: Ptz Configuration

    The functions vary depending on different camera models. 5.4.1 Configuring Basic PTZ Parameters You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc. 1. Enter the Basic Settings interface: Configuration > PTZ > Basic Settings © Hikvision...
  • Page 69  Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor vehicles.  Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.  Auto: You are recommended to set it as Auto when the application scene of the speed dome is complicated. © Hikvision...

  • Page 70: Configuring Ptz Limits

    3. Click to save the settings. 5.4.2 Configuring PTZ Limits Purpose: The speed dome can be programmed to move within the configurable PTZ limits (left/right, up/down). Steps: Enter the Limit configuration interface: Configuration > PTZ > Limit © Hikvision...

  • Page 71: Configuring Initial Position

    The initial position is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial position according to your own demand.  Customize an Initial Position: Steps: Enter the Initial Position configuration interface: Configuration > PTZ > Initial Position © Hikvision...

  • Page 72: Configuring Park Actions

    6. Click to save the settings. 5.4.5 Configuring Privacy Mask Purpose: Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. © Hikvision...
  • Page 73 Active Zoom Ratio on your demand, and then the mask will only appear when the zoom ratio is greater than the predefined value. Figure 5-32 Privacy Mask List Check the checkbox of Enable Privacy Mask to enable this function. © Hikvision...

  • Page 74: Configuring Scheduled Tasks

    5. Select the timeline of a certain day, and drag the mouse to set the recording schedule (the start time and end time of the recording task). 6. After you set the scheduled task, you can click and copy the task to other days (optional). © Hikvision...

  • Page 75: Clearing Ptz Configurations

    Steps: 1. Enter the Clearing Configuration interface: Configuration > PTZ > Clear Config 2. Check the checkbox of the items you want to clear. Figure 5-35 Clear Config 3. Click to clear the settings. © Hikvision...

  • Page 76: Configuring Smart Tracking

    If the returned resemblance is lower than the set value, the camera stops tracking. You can set the resemblance thresholds for different targets at different tracking stages. © Hikvision...

  • Page 77: Prioritize Ptz

    2. Manually find the north position for the speed dome in Live View interface, and click Set at North to set the north direction. 3. After the speed dome changes its direction, you can click Point to North and the speed dome © Hikvision...

  • Page 78: Rapid Focus

    Check Enable to enable the function. Calibrate the camera. Add scenes for calibration. Adjust the camera to a desired scene via PTZ control buttons. Click Add to add the scene, and input Rate and Calibration Point Amount of the © Hikvision...
  • Page 79 The red line is recommended to stay in the center of the scene and to cover ground at the same time. • If the line is not in the center, use PTZ control to adjust the scene. Click Start Calibration. Calibration status displays on the live image. Save the settings after successful calibration. © Hikvision...

  • Page 80: Chapter 6 Camera Configuration

    Enter TCP/IP settings interface: Configuration > Network > Basic Settings > TCP/IP Figure 6-1 TCP/IP Settings 2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet Mask and IPv4(IPv6) Default Gateway. 3. Click to save the above settings © Hikvision...
  • Page 81 Configuration > Network > Basic Settings > DDNS 2. Check the Enable DDNS checkbox to enable this feature. 3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.  DynDNS: Steps: (1) Enter Server Address of DynDNS (e.g. members.dyndns.org). © Hikvision...
  • Page 82 Configuration > Network > Basic Settings > PPPoE Figure 6-4 PPPoE Settings 2. Check the Enable PPPoE checkbox to enable this feature. 3. Enter User Name, Password, and Confirm password for PPPoE access. Note: The User Name and Password should be assigned by your ISP. © Hikvision...
  • Page 83 WebSocket Port: The default port number is 7681. WebSockets Port: The default server port number is 7682. Note: WebSocket and WebSockets protocol are used for plug-in free live view. For detailed information, see Network Service in Section 6.1.2. © Hikvision...

  • Page 84: Advanced Settings

    And you can customize the value of the port number by yourself. Figure 6-6 Port Mapping Mode Click to save the settings. 6.1.2 Advanced Settings Configuring SNMP Settings Purpose: You can use SNMP to get camera status and parameters related information. © Hikvision...
  • Page 85 2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to enable the feature. 3. Configure the SNMP settings. Note: The configuration of the SNMP software should be the same as the settings you configure here. 4. Click to save and finish the settings. © Hikvision...
  • Page 86  Root directory: The files will be saved in the root of FTP server.  Parent directory: The files will be saved in a folder in FTP server. The name of folder can be defined as shown in Figure 6-9. © Hikvision...
  • Page 87 Before you start: Configure the DNS Server settings under Configuration> Network > Basic Settings > TCP/IP before using the Email function. Steps: 1. Enter the Email settings interface: Configuration> Network > Advanced Settings > Email © Hikvision...
  • Page 88  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured. © Hikvision...
  • Page 89 4. You can use the default server address. Or you can check the Custom checkbox on the right and input a desired server address. 5. Click to save the settings. Note: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so on. © Hikvision...
  • Page 90 Configuration > Network > Advanced Settings > HTTPS 2. Create the self-signed certificate or authorized certificate. Figure 6-13 Create Certificate OPTION 1: Create the self-signed certificate Select Create Self-signed Certificate. Click Create to create the following dialog box. Figure 6-14 Create Self-signed Certificate © Hikvision...
  • Page 91 QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending. Steps: 1. Enter the QoS settings interface: Configuration >Advanced Configuration > Network > QoS Figure 6-16 QoS Settings © Hikvision...
  • Page 92 For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including © Hikvision...
  • Page 93 If you need to access to the camera through the third party platform, you can enable Hikvision-CGI function. And if you need to access to the device through ONVIF protocol, you can configure ONVIF user in this interface. Refer to ONVIF standard for detailed configuration rules.
  • Page 94 Figure 6-19 Integration Protocol Settings 2. Check the Enable Hikvision-CGI checkbox and then select the authentication from the dropdown list. Then you can access to the camera through the third party platform. 3. Check the Enable ONVIF checkbox to enable the function.
  • Page 95 When the proportion is 100, the redundant data will be as large as the original data, and the bandwidth is twice required. Note: Be sure the bandwidth is sufficient in Error Correction mode. 5. Save the settings. © Hikvision...

  • Page 96: Configuring Video And Audio Settings

    Refer to the Section 4.2 Configuring Local Parameters for switching the main stream and sub-stream for live viewing. 3. You can customize the following parameters for the selected stream. Note: The parameters vary depending on different camera models. © Hikvision...
  • Page 97 SVC: Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC function. Select Auto, and the device will automatically extract frames from the original video when the network bandwidth is insufficient. Smoothing: © Hikvision...

  • Page 98: Configuring Audio Settings

    There are two different ROI methods: Fixed Region and Dynamic Region. When Fixed Region is enabled, image quality of ROI area will be enhanced and image quality of other areas will be reduced. When Dynamic Region is enabled, image quality of tracking target will be enhanced. Note: © Hikvision...
  • Page 99 Select a stream type. You can set the ROI function for main stream, sub-stream or third stream. Click and then drag the mouse to draw a red frame in the live view image. You can click to clear it. © Hikvision...

  • Page 100: Display Info. On Stream

    You can double click the live view to enter full screen mode and double click it again to exit. Steps: 1. Enter the Display Settings interface: Configuration > Image> Display Settings 2. You can select the Scene in the dropdown list with different predefined image parameters. 3. Set the image parameters of the speed dome. © Hikvision...
  • Page 101 The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment. You can limit the changing range of iris in Shutter Priority mode for better exposure effect. © Hikvision...
  • Page 102 The Focus Mode can be set to Auto, Manual, and Semi-auto.  Auto: The speed dome focuses automatically at any time according to objects in the scene.  Semi-auto: The speed dome focuses automatically only once after panning, tilting and zooming.  Manual: © Hikvision...
  • Page 103 IR Light Mode/Laser Mode: It controls the On/Off status of supplememt light. Brightness Limit: It controls the the upper limit of supplement light power. Note: To use supplement light, you have to enable the supplement light first. Go to Configuration > System > Maintenance > System Service. © Hikvision...
  • Page 104 You can select this mode when the speed dome is installed in outdoor environment.  Indoor You can select this mode when the speed dome is installed in indoor environment.  Fluorescent Lamp You can select this mode when there are fluorescent lamps installed near the speed dome. © Hikvision...
  • Page 105 You can set theEIS to ON or OFF as you need. Figure 6-36 Electronic Image Stabilization  OIS (Optical Image Stabilization) You can set the OIS to NORMAL, EXPERT, or OFF as you need. Figure 6-37 Optical Image Stabilization © Hikvision...

  • Page 106: Configuring Osd Settings

    4. Select from the dropdown list to set the time format, date format, display mode, OSD size， Font color and alignment. 5. You can use the mouse to drag the text frame IPdome in the live view window to adjust the OSD position. © Hikvision...

  • Page 107: Configuring Text Overlay Settings

    Scheduled-Switch: Set the time period and linked scene and it will go to the linked scene in the configured time period when you check the © Hikvision...
  • Page 108 4. When you enable the function of Scheduled-Switch, check the corresponding checkbox, set the time period and the linked scene. Figure 6-41 Schedule-Switch 5. Click to save the settings. Note: The two functions are not enabled by default. © Hikvision...

  • Page 109: Configuring System Settings

    There are Time Zone, Time Synchronization, and Daylight Saving Time (DST) functions for setting the time. Time Synchronization consists of auto mode by Network Time Protocol (NTP) server and manual mode. Enter the Time Settings interface: Configuration > System > System Settings > Time Settings © Hikvision...
  • Page 110 NTP server for time synchronization.  Configuring Time Synchronization Manually Steps: (1) Check the Manual Time Sync radio button. (2) Click to set the system time from the pop-up calendar. (3) Click to save the settings. © Hikvision...
  • Page 111 Steps: 1. Enter the DST interface by Configuration > Advanced Configuration > System > DST Figure 6-47 DST Settings 2. Check the Enable DST checkbox to enable the DST function. 3. Set the date of the DST period. © Hikvision...
  • Page 112 The RS-485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit. Note: RS-485 function varies depending on different speed dome models. Steps: 1. Enter RS-485 Port Setting interface: Configuration> Advanced Configuration> System > RS-485 © Hikvision...

  • Page 113: Maintenance

    Enter the Maintenance interface: Configuration > System > Maintenance > Upgrade & Maintenance: 2. Click to restore the default settings. Note: Clicking restores all the parameters to default settings including the IP address and user information. Use this button with caution. © Hikvision...
  • Page 114 The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand. Before you start: Configure network storage for the camera or insert a memory card in the camera. Steps: © Hikvision...
  • Page 115 3. Input a number in text field as the upper limit of the remote connection number. E.g. when you specify the remote connection number as 10, then the 11th remote connection cannot be established. Figure 6-52 Live View Connection Settings 4. Click button to activate the settings. © Hikvision...

  • Page 116: Security

    2. Check the checkbox of Enable IP Address Filter. 3. Select the type of IP Address Filter in the dropdown list, Forbidden and Allowed are selectable. 4. Set the IP Address Filter list.  Add an IP Address © Hikvision...
  • Page 117 Check the checkbox to enable the Illegal Login Lock function. Illegal Login Lock: Enabling illegal login lock function is to automatically lock the device IP after the admin user performing 7 failed password attempts (5 attempts for the user/operator). Click to save the settings. © Hikvision...

  • Page 118: User Management

    The level indicates the permissions you give to the user. You can define the user as Operator or User. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions for the new user. Click to finish the user addition. © Hikvision...
  • Page 119 1. Left-click to select the user from the list and click 2. Modify the User Name, Level or Password. 3. In the Basic Permission field and Camera Configuration field, you can check or uncheck the permissions. 4. Click to finish the user modification. © Hikvision...
  • Page 120 You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list. © Hikvision...
  • Page 121 LAN. Steps: Enter login interface via web browser. Click Forget Password. Answer security question. Create new password. Note: User IP address is locked for 30 minutes after 7 failed attempts of answering security questions. © Hikvision...

  • Page 122: Appendix

    Device can be searched and displayed in the list in 15 seconds after it went online; it will be removed from the list in 45 seconds after it went offline.  Search online devices manually You can also click to refresh the online device list manually. The newly searched devices will be added to the list. © Hikvision...
  • Page 123  Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. © Hikvision...
  • Page 124 Figure A.1.2 Modify Network Parameters © Hikvision...
