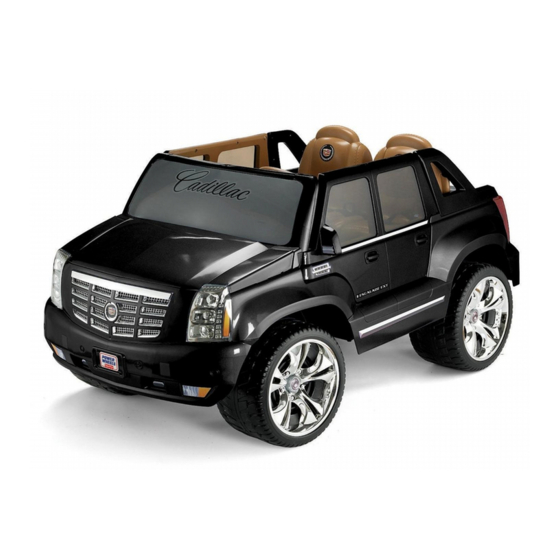

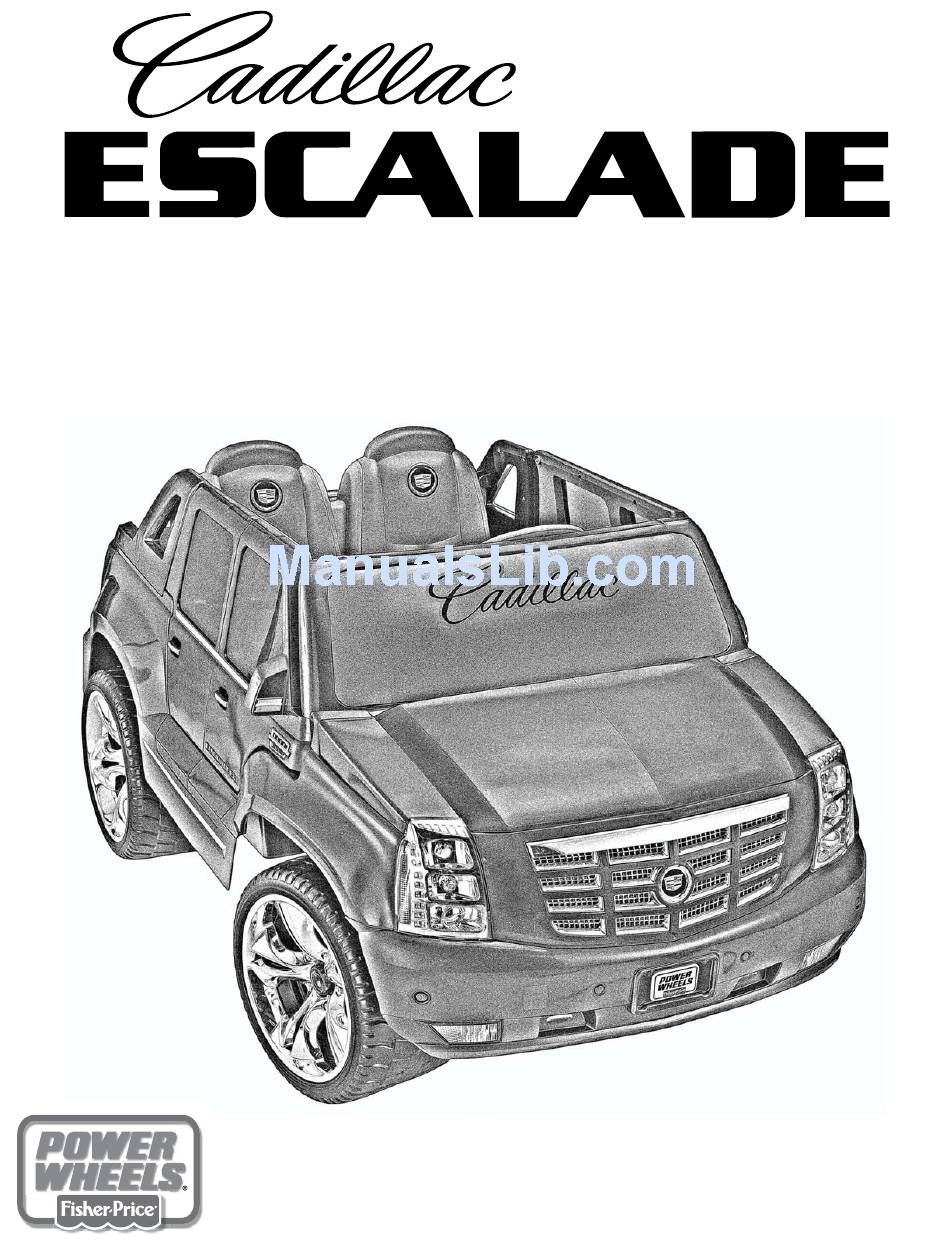

CUSTOM EDITION
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver
(not included); Assembly Tool (included). Use only with a
Power Wheels
®
12 Volt Lead Acid Rechargeable Battery
with Built-in Thermal Fuse and Power Wheels
®
12 Volt Charger with Type 12V Connector (both included).
Requires four "C" (LR14) alkaline batteries (not included)
for FM Radio operation.
Product features may vary
from the picture above.
Owner's Manual
with Assembly
Instructions
For Model N8417

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N8417 and is the answer not in the manual?

Questions and answers

Related Manuals for Power Wheels N8417

Summary of Contents for Power Wheels N8417

  • Page 1 (not included); Assembly Tool (included). Use only with a Power Wheels ® 12 Volt Lead Acid Rechargeable Battery with Built-in Thermal Fuse and Power Wheels ® 12 Volt Charger with Type 12V Connector (both included). Requires four "C" (LR14) alkaline batteries (not included) for FM Radio operation.

  • Page 2: Table Of Contents

    Please see page 26 for detailed instructions. your vehicle for the first time. We recommend that you start charging your battery before beginning assembly. Please see • If you have any questions about your Power Wheels ® vehicle, Battery Charging beginning on page 8 for detailed instructions.

  • Page 3: B Warnings And Cautions

    ® ® - Use of Power Wheels components in products other than Power Wheels vehicles could cause overheating, fire or explosion. • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte).

  • Page 4: C Parts

    PARTS Meijer.com • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 PARTS Meijer.com Steering Column 2 Front Wheels (Left and Right) Steering Wheel 2 Wheel Covers Steering Wheel Cap Truck Bed 2 Wings (Left and Right) 2 Headlight Covers 2 Headlights (Left and Right) (Left and Right) 2 Door Plates Steering Column Cap 2 Bushings 2 Hubcaps 2 Taillights...
  • Page 6 PARTS Meijer.com 12 Volt Battery 2 Short Seat Belts 12 Volt Charger " Washer – 2 " -16 Lock Nut – 2 Long Seat Belt " x 1 " Pin – 1 #8 x " Screw – 34 Assembly Tool "...

  • Page 7: Parts Picture

    PARTS PICTURE Meijer.com Note: Some parts shown are assembled on both sides of the vehicle. Parts Not Shown Vehicle Door Plates - 2 Bushing - 2 Steering Column Cap Front End Seat Truck Bed Steering Wheel Cap "-16 Lock Nuts - 2 Bumper Short Seat Belts - 2 Steering Wheel...
  • Page 8 If a thermal fuse in a battery continually trips under normal • The battery must be handled by adults driving conditions, please contact your local Power Wheels ® only. The battery is heavy and contains Authorized Service Center. For the location of the Authorized Service Center nearest to you, visit us on-line at sulfuric acid (electrolyte).

  • Page 9: Ebattery Charging

    BATTERY CHARGING ASSEMBLY Meijer.com WARNING Power Indicator Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking Battery and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 10 ASSEMBLY Meijer.com " -16 Lock Nut Front Axle Front Wheel Assembly Tool • Place a " -16 lock nut (rounded side out) onto a front axle. Hint: There is a right and a left front wheel. Place the right wheel IMPORTANT: Tighten the lock nut firmly using the closed end of (marked R) on the passenger side of the vehicle, and the left the assembly tool.
  • Page 11 ASSEMBLY Meijer.com Front End Battery Compartment TOP VIEW Vehicle " x 1 " screws inside of the battery • Insert two compartment and into the front end of the vehicle. Tighten the screws. • Fit the front end onto the vehicle. •...
  • Page 12 ASSEMBLY Meijer.com Bumper " screws into the bumper and tighten. • Insert eight #8 x • "Snap" each headlight into the headlight cover. Hint: There is a left and right headlight and headlight cover. Headlights • Apply the labels to the headlights. •...
  • Page 13 ASSEMBLY Meijer.com Plates Headlights " screw into the top edge of each headlight. • Fit the large hole on the plates to the door posts. • Insert one #8 x Tighten the screws. • Align the holes in the plates with the holes in the top side of the vehicle.
  • Page 14 ASSEMBLY Meijer.com Windshield/ Motor Harness Dash Connector Front FRONT VIEW BACK VIEW • Fit the tabs on the windshield/dash into the slots in the front end of the vehicle. • Position the motor harness connector towards the front of the vehicle and into the battery compartment.
  • Page 15 ASSEMBLY Meijer.com Steering Column Dash Steering DASH VIEW " screws into the sides of the • Insert two #8 x windshield/dash. Tighten the screws. • Close the doors on the vehicle. IMPORTANT! Turn the vehicle on its side or over to complete assembly steps 23-28.
  • Page 16 ASSEMBLY Meijer.com Steering Column Cap Press Wheel Press Wheel Press Wheel • Fit the steering column cap Lift Steering onto the end of the Column steering column. " screw through the large opening in the • While pressing down on the steering wheel, grasp the steering •...
  • Page 17 ASSEMBLY Meijer.com Loosen This Screw Hood • Locate the FM Radio on the dash. • Loosen both screws in the battery compartment door. • Remove the battery compartment door. • Insert four, new "C" (LR14) alkaline batteries. Hint: We recommend using alkaline batteries for longer battery life.
  • Page 18 ASSEMBLY Meijer.com Short Seat Belts Seat Seat Long Seat Belt • Insert the fastener end of a short seat belt strap through the BACK VIEW slot near the outer edge of the seat. Make sure the side of the seat belt with the fastener faces the outer edge of the seat. "...
  • Page 19 ASSEMBLY Meijer.com Wings Truck Bed Taillight Tabs • Position the truck bed over the back end of the vehicle. • Fit the wing tabs into the slots in the top edge near the rear of the vehicle. Hints: • There is a left and right wing. They are designed to be assembled one way.
  • Page 20 DECORATION Meijer.com Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...

  • Page 21: Gdecoration

    DECORATION Meijer.com RIGHT SIDE LEFT SIDE DASH VIEW N8417pr-0920...

  • Page 22: Battery Installation

    IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ® 12 volt Power Wheels ®...

  • Page 23: Ibattery Care And Disposal

    • After the first charge, recharge the battery for at least 14 hours • Return an exhausted battery to a federal or state approved after each use. Never charge the battery longer than 30 hours. lead-acid battery recycler, such as a Power Wheels ® authorized Charge the battery after each use, regardless of how long the service center or a local seller of automotive batteries.

  • Page 24: Safe Driving Rules

    SAFE DRIVING RULES Meijer.com Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills WARNING are still very immature. Unsupervised driving by children can lead to serious injury.

  • Page 25: Vehicle Operation

    VEHICLE OPERATION Meijer.com IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor-ing can be damaged by riding this vehicle indoors. Fisher-Price will not be responsible for damage to the floor ® if the vehicle is used indoors. Beginner Use - Low Speed Drive •...

  • Page 26: L Fm Radio Use

    FM RADIO USE Meijer.com Volume Scan Reset Power Scan Main Reset Power/Volume • Press the power button to turn on or off. • Turn the volume dial to adjust to a comfortable listening level. Hint: The FM Radio will turn off automatically after about one hour of non-use. FM Radio •...

  • Page 27: Mvehicle Care

    (1) this device may recommend that you periodically have your vehicle checked by not cause harmful interference and (2) this device must accept a Power Wheels ® authorized service center. For the location of...

  • Page 28: P Limited Warranty

    ® ) against defects in materials and workmanship. The six month limited warranty applies only to the 12 volt battery included by Power Wheels ® Cet appareil numérique de la classe Best conforme à la norme with the original purchase of the vehicle. This warranty NMB-003 du Canada.

  • Page 29: Qproblems And Solutions Guide

    Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM and 7 PM (EST) Monday through Friday and 11 AM and 5 PM (EST) Saturday. Or, contact your local Power Wheels ® authorized service center.

  • Page 30: Problem Possible Cause

    Do not charge the battery longer than 30 hours. If you suspect that your battery is damaged as a result of ® overcharging, contact your local Power Wheels authorized service center. They can test the battery for you. Battery is old and will not...
  • Page 31 Check all wires around the motors and all connectors to run, but other times it does make sure they are tight. ® Motor or electrical switch damage Contact your local Power Wheels authorized service center for diagnosis and repair. When the foot pedal is pressed, Loose wire or connector Check all wires around the motors and all connectors the vehicle won’t run without...
  • Page 32 Do not return your vehicle to the store! Or contact your local independently owned and operated ® Power Wheels Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Cadillac, the Wreath & Crest Emblem, Escalade, all related Emblems and vehicle body designs are General Motors Trademarks used under license to Fisher-Price.
