TM
Please read this manual and save it with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver,
Adjustable Wrench (or Pliers) and Safety Scissors (all not included).
Use only with a Power Wheels
®
12 Volt Lead Acid Rechargeable Battery
and Power Wheels
®
12 Volt Charger with Type 12V Connector
(both included). Requires four "C" (LR14) alkaline batteries for
FM Radio operation (batteries not included).

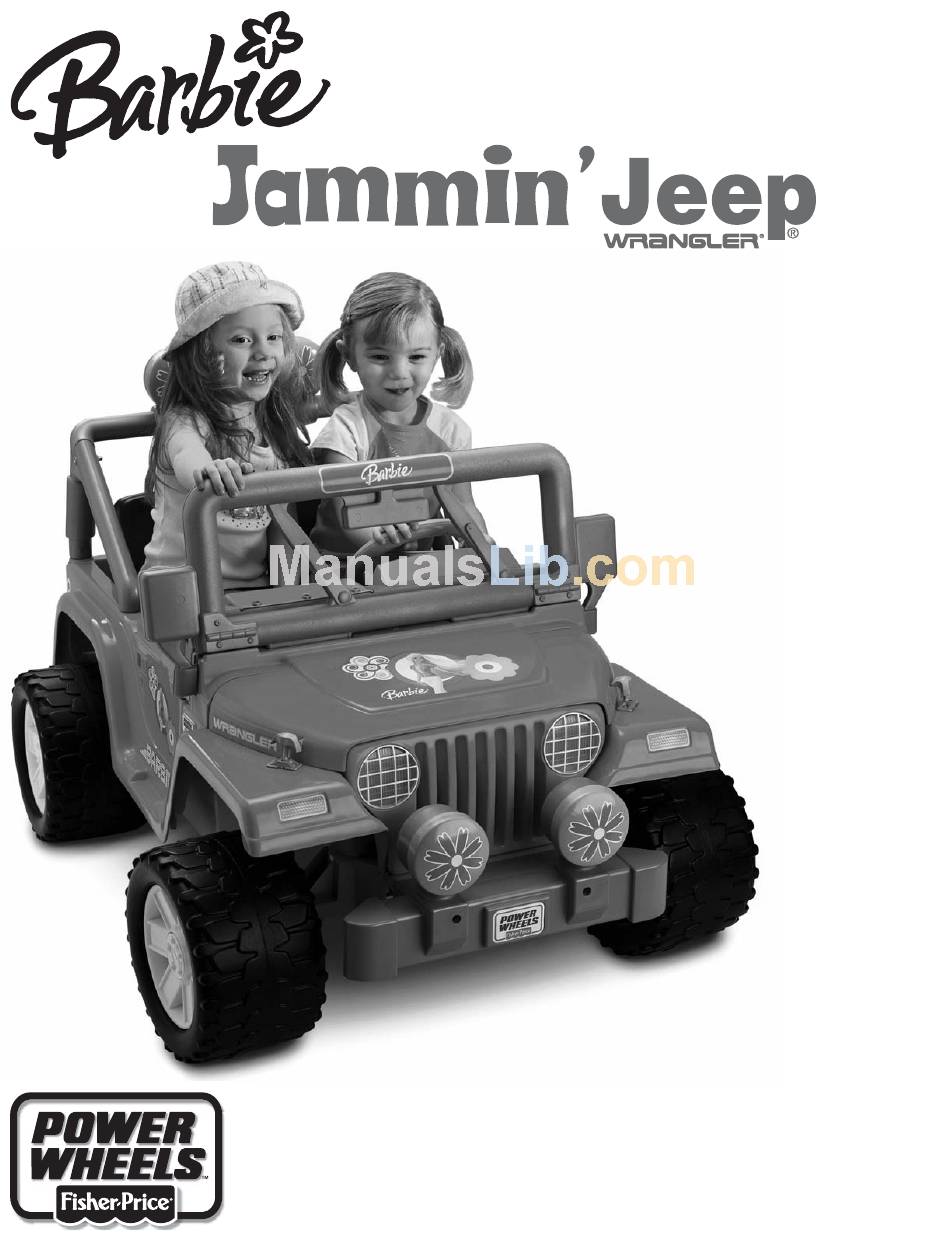

Product features may vary from the picture above.
Owner's Manual
with Assembly Instructions
For Model L7820
Advertisement
Table of Contents
Related Manuals for Power Wheels Barbie Jammin' Jeep L7820
Summary of Contents for Power Wheels Barbie Jammin' Jeep L7820
- Page 1 Power Wheels ® 12 Volt Charger with Type 12V Connector (both included). Requires four "C" (LR14) alkaline batteries for FM Radio operation (batteries not included). Product features may vary from the picture above. Owner's Manual with Assembly Instructions For Model L7820...
-
Page 2: Table Of Contents
A Important Information ..................2 B Warnings and Cautions . -
Page 3: B Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 4: C Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •... - Page 5 12 Volt Battery Taillight Lens Set Taillight Housing Set Lens Guard - 2 Light Cover – 4 Key Assembly Spacer - 2 Part Not Shown: Label Sheet L7820pr-0920 TABLE OF CONTENTS PARTS 12 Volt Charger Headlight Lens - 2 #8 Acorn Lock Nut – 2 Hood Latch –...
-
Page 6: Parts Picture
Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Dash Steering Column Headlight Lens - 2 Hood Latch - 2 Lens Guard - 2 12 Volt Battery Short Seat Belt Strap - 2 12 Volt Charger Windshield Key Assembly Brush Guard... - Page 7 ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
-
Page 8: Ebattery Charging
BATTERY CHARGING Battery • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Notes: - Use the charger only in a wall outlet. Do not plug the charger into a ceiling outlet. - If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”. -
Page 9: Bottom View
DASH VIEW • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustration. • For best results, avoid repositioning a label once it has been applied to the vehicle. - Page 10 " x 1 " Pin • Insert the " x 1 " pin through the hole in the end of the steering column. • Lower the steering column so that the pin fits inside the center of the steering wheel. •...
- Page 11 Lens Guard Wide Tab Lens Wide Notch Lens Guard • Fit the wide notch in the side of a headlight lens under the wide tab on a lens guard. • Press firmly on the inside of the headlight lens to snap it into the lens guard.
- Page 12 Wipers Large Large Slots • Position the windshield so that the molded detail on the wipers faces the front end of the vehicle. • Insert and “snap” the two large tabs on the windshield into the large slots in the dash. •...
-
Page 13: Back View
Short Seat Belt Strap T-Loop (Pull through slot) T-Loops Slot Seat Slot • Turn the seat upside down. • Insert the fastener end of a short seat belt strap through the slot near the outer edge of the seat. Make sure the side of the seat belt with the fastener faces the outer edge of the seat. - Page 14 • Fit a support to one side of the sport bar. " screw through the support, the sport bar • Insert a #8 - 32 x 1 and out through the support. • Fit a #8 acorn lock nut to the end of the screw. •...
- Page 15 Taillight Housing Taillight Lens #8 x 1" Screws BACK VIEW • Turn the vehicle upright. • Using safety scissors, remove the taillight lenses and the taillight housings from the plastic connectors. Dispose of the plastic connectors. • Face the rear of the vehicle. •...
-
Page 16: Fassembly
ASSEMBLY DASH VIEW • Locate the FM Radio on the dash. Loosen both screws in the battery compartment door. Remove the battery compartment door. • Remove the exhausted batteries and throw them away. • Insert four, new "C" (LR14) alkaline batteries. Hint: We recommend using alkaline batteries for longer battery life. -
Page 17: Front Left Side
DECORATION FRONT LEFT SIDE FRONT RIGHT SIDE L7820pr-0920 L7820pr-0920... -
Page 18: Battery Installation
IMPORTANT! Use only a Power Wheels of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ® 12 volt charger before operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle. -
Page 19: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. -
Page 20: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, steep inclines, cars, roads and alleys. -
Page 21: Vehicle Operation
IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Beginner Use - Low Speed Drive As assembled, your vehicle is ready to roll in low speed mph, maximum). - Page 22 Volume Power Main Reset Power/Volume • Press the power button to turn on or off. • Turn the volume dial to adjust to a comfortable listening level. Hint: The FM Radio will turn off automatically after about one hour of non-use. FM Radio •...
-
Page 23: Mvehicle Care
VEHICLE CARE • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. -
Page 24: L7820Pr-0920 L7820Pr
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels (EST) Monday through Friday and 11 AM and 5 PM (EST) Saturday. Or, contact your local Power Wheels For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751. -
Page 25: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE Vehicle was running but Loose wires or loose connectors suddenly stopped Tripped thermal fuse Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs in low speed, but... - Page 26 PROBLEMS AND SOLUTIONS GUIDE PROBLEM Vehicle runs sluggishly Sometimes the vehicle doesn’t run, but other times it does When the foot pedal is pressed, the vehicle won’t run without a push Battery’s thermal fuse constantly "trips", but the vehicle is not overloaded nor the driving conditions too severe Loud clacking or grinding...
- Page 27 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE FM Radio does not function at all Power is off Batteries are weak or dead FM Radio station Poor reception changes automatically Power was turned off and the radio reset back to the first station FM Radio functions erratically Electronic lock-up If, after reviewing the Problems and Solutions Guide, the vehicle still fails to operate, please contact your nearest authorized service center.
- Page 28 Before first-time use, you must charge the battery 18 hours! Charge the battery immediately after each use. Charge the battery once a month, even if the vehicle is not used or stored. Do not return your vehicle to the store! Or contact your local independently owned and operated ®...
