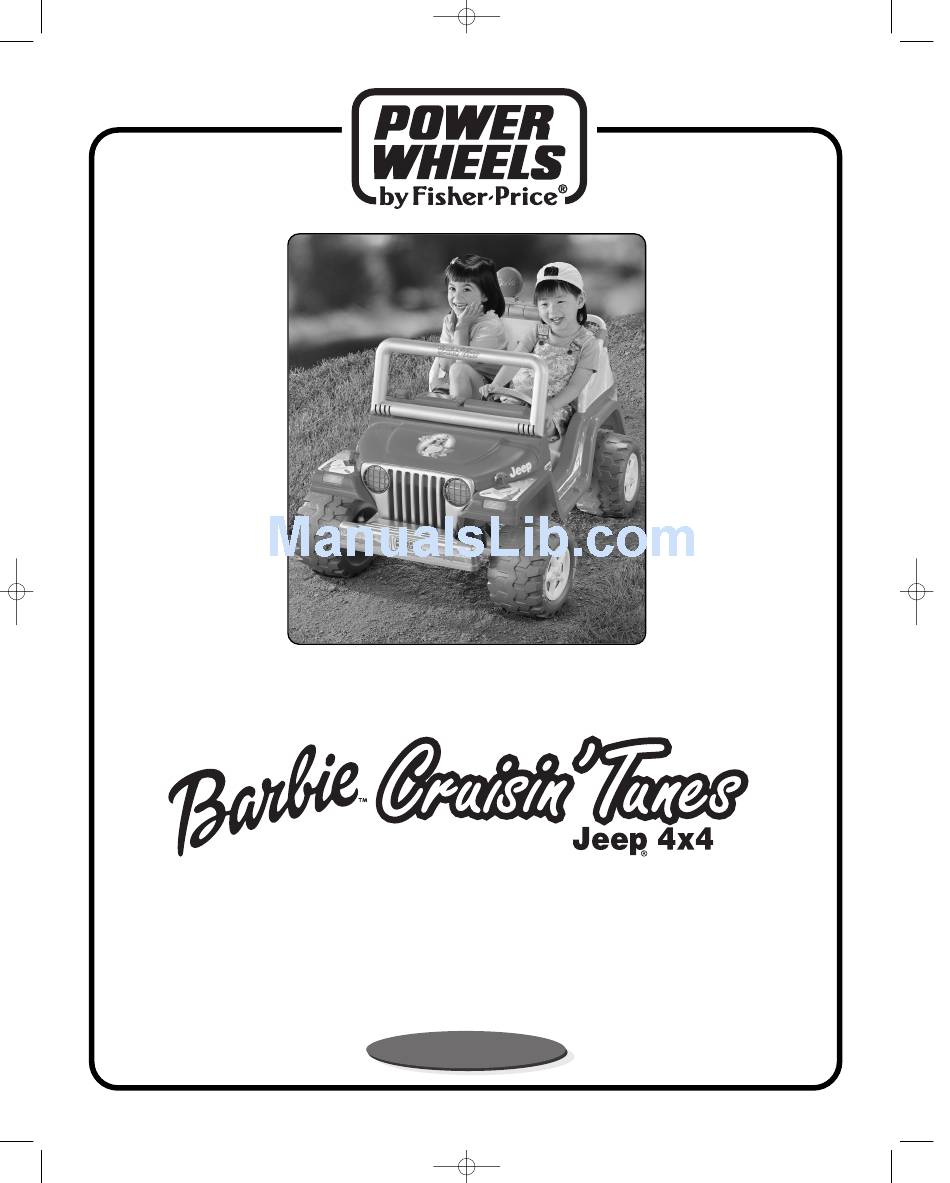

Page 1
Product features and decoration may vary from the picture above.
JEEP and the Jeep grille design are registered trademarks of DaimlerChrysler Corporation and are used under license. ©DaimlerChrysler Corporation.
Fisher-Price, Power Wheels by Fisher-Price, BARBIE, Cruisin' Tunes, Power Lock and Power Stick are U.S. trademarks of Mattel Inc.
Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 74340
Tools needed for assembly: Phillips Screwdriver, Hammer, and Safety Scissors (tools not included).
Use only with a Power Wheels
®
12 Volt Lead-Acid Rechargeable Battery and Power Wheels
®
12 Volt Charger
with Type "12V" Connector (included).
"Radio" requires three "AA" (LR6) alkaline batteries (not included) for operation.
www.powerwheels.com
