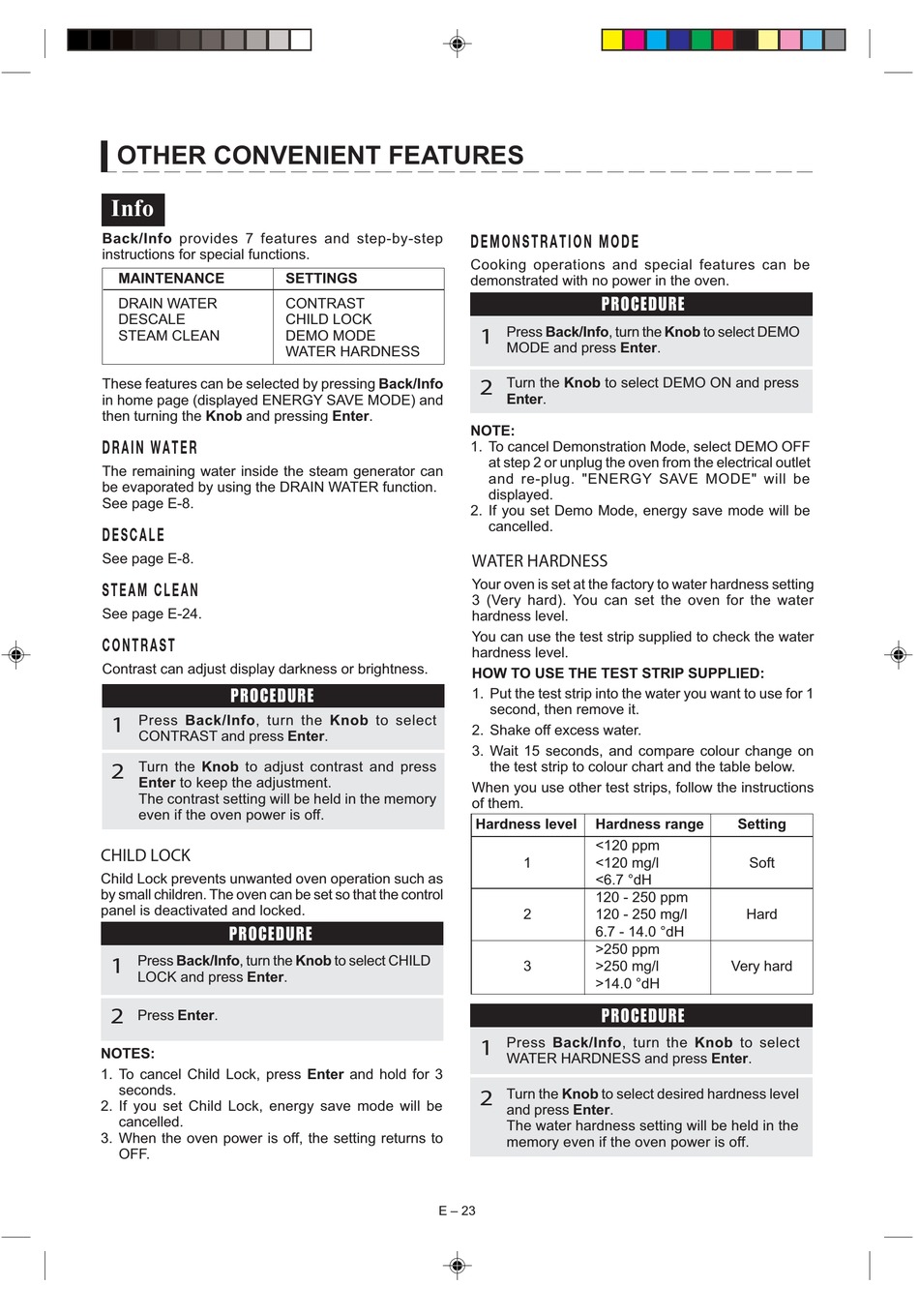

Child Lock; Water Hardness - Sharp AX-600X(R) Operation Manual

OTHER CONVENIENT FEATURES
Info
Back/Info provides 7 features and step-by-step
instructions for special functions.
MAINTENANCE
DRAIN WATER
DESCALE
STEAM CLEAN
These features can be selected by pressing Back/Info
in home page (displayed ENERGY SAVE MODE) and
then turning the Knob and pressing Enter.
D R A I N W A T E R
The remaining water inside the steam generator can
be evaporated by using the DRAIN WATER function.
See page E-8.
D E S C A L E
See page E-8.
S T E A M C L E A N
See page E-24.
C O N T R A S T
Contrast can adjust display darkness or brightness.
PROCEDURE
Press Back/Info, turn the Knob to select
1
CONTRAST and press Enter.
Turn the Knob to adjust contrast and press
2
Enter to keep the adjustment.
The contrast setting will be held in the memory
even if the oven power is off.

CHILD LOCK

Child Lock prevents unwanted oven operation such as
by small children. The oven can be set so that the control
panel is deactivated and locked.
PROCEDURE
Press Back/Info, turn the Knob to select CHILD
1
LOCK and press Enter.
2
Press Enter.
NOTES:
1. To cancel Child Lock, press Enter and hold for 3
seconds.
2. If you set Child Lock, energy save mode will be
cancelled.
3. When the oven power is off, the setting returns to
OFF.
SETTINGS
CONTRAST
CHILD LOCK
DEMO MODE

WATER HARDNESS

E – 23
D E M O N S T R A T I O N M O D E
Cooking operations and special features can be
demonstrated with no power in the oven.
PROCEDURE
Press Back/Info, turn the Knob to select DEMO
1
MODE and press Enter.
Turn the Knob to select DEMO ON and press
2
Enter.
NOTE:
1. To cancel Demonstration Mode, select DEMO OFF
at step 2 or unplug the oven from the electrical outlet
and re-plug. "ENERGY SAVE MODE" will be
displayed.
2. If you set Demo Mode, energy save mode will be
cancelled.
WATER HARDNESS
Your oven is set at the factory to water hardness setting
3 (Very hard). You can set the oven for the water
hardness level.
You can use the test strip supplied to check the water
hardness level.
HOW TO USE THE TEST STRIP SUPPLIED:
1. Put the test strip into the water you want to use for 1
second, then remove it.
2. Shake off excess water.
3. Wait 15 seconds, and compare colour change on
the test strip to colour chart and the table below.
When you use other test strips, follow the instructions
of them.
Hardness level Hardness range
<120 ppm
1 <120 mg/l
<6.7 °dH
120 - 250 ppm
2 120 - 250 mg/l
6.7 - 14.0 °dH
>250 ppm
3 >250 mg/l
>14.0 °dH
PROCEDURE
Press Back/Info, turn the Knob to select
1
WATER HARDNESS and press Enter.
Turn the Knob to select desired hardness level
2
and press Enter.
The water hardness setting will be held in the
memory even if the oven power is off.
Setting
Soft
Hard
Very hard
