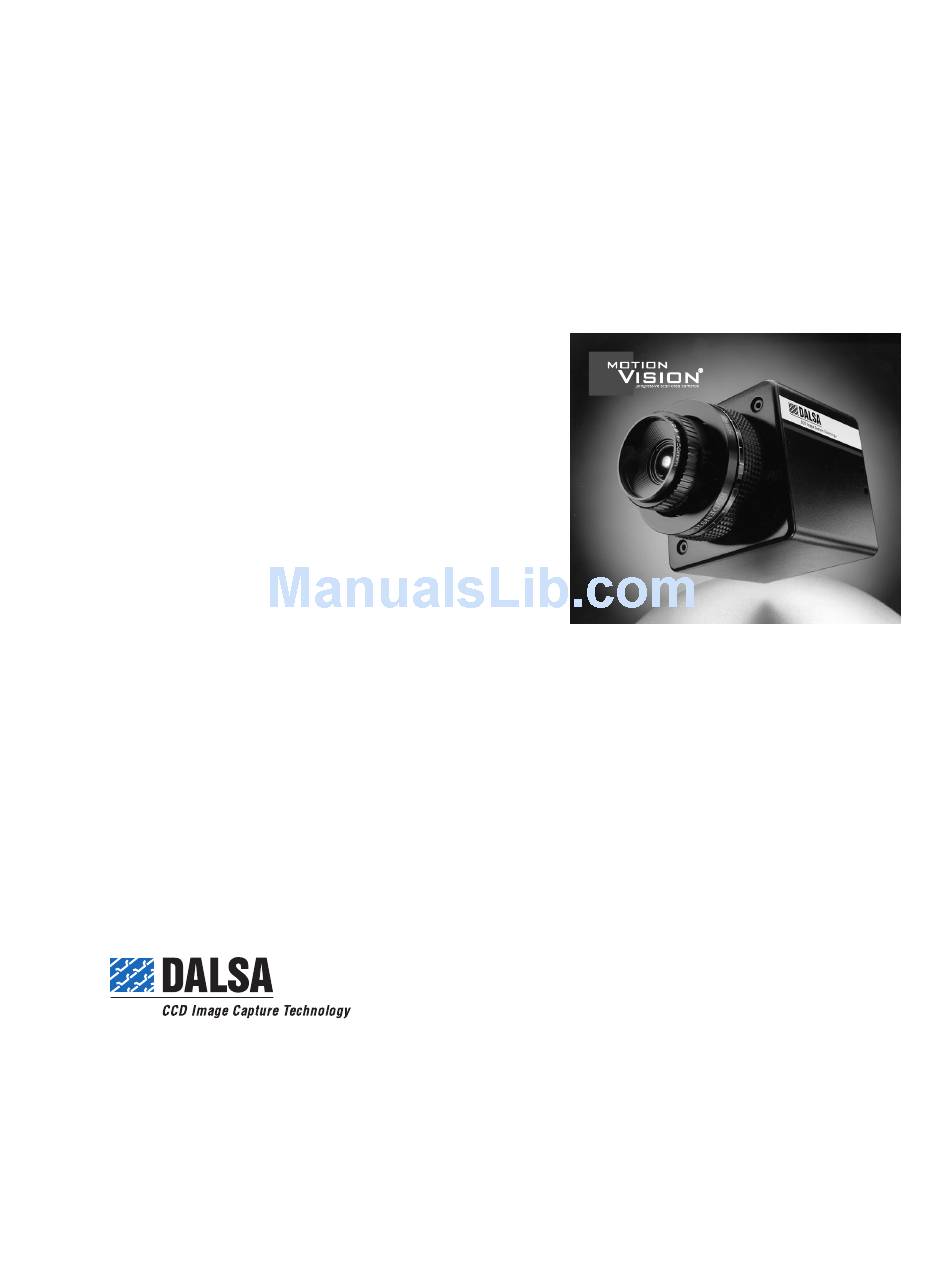

- Page 1 MotionVision® CA-D6-xxxxW High-Speed Area Scan Cameras Camera User’s Manual 03-32-00225 rev 06 Printed 03/18/99 10:00 AM...
- Page 2 Document Number 03-32-00225 Revision Level 06 © 1998 DALSA Inc. All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by DALSA for its use. DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from DALSA INC.
-
Page 3: Table Of Contents
3.1 Mechanical Interface ..................19 3.2 Optical Interface .................... 20 3.3 EMC Operation....................23 4.0 Troubleshooting 4.1 Common Solutions ..................25 4.2 Specific Solutions..................27 4.3 Product Support .................... 29 Appendix A: EIA-644 Reference Appendix B: EMC Declaration of Conformity Index DALSA INC. 03-32-00225-06... - Page 4 CA-D6-xxxxW User’s Manual 03-32-00225-06 DALSA INC.
-
Page 5: Introduction To The Ca-D6
The CA-D6-xxxxW cameras use DALSA’s patented modular architecture. This system of connecting circuit modules through standardized busses allows DALSA to build a high performance modular camera using the reliability, flexibility, and cost-effectiveness of high-volume interchangeable parts. Within the camera, a timing board (PB-D6-X205) generates all internal timing and a driver board (PB-D6-A198) provides bias voltages and clocks to the CCD image sensor. - Page 6 0 .8 0 .6 0 .4 0 .2 4 00 5 00 6 00 7 00 8 00 9 00 1 00 0 W ave le n gth (n m ) R e sp o n sivit y 03-32-00225-06 DALSA INC.
-
Page 7: Camera Performance Specifications
Notes DN = digital numbers, also known as “levels” (0-255 for 8-bit systems). All cameras use sensor grade 01. Other grades also available. Contact DALSA for information. DC light source, bulb color temp 3150K, 750nm cutoff filter. Measured at 20%, 50% and 80% of VSAT. -
Page 8: Ccd Camera Primer
8-bit cameras). These digital numbers are what the camera outputs as data to a framegrabber. For more information on terms and concepts from the digital imaging industry, see DALSA’s current Databook Glossary, CCD Technology Primer, and Application Notes. 03-32-00225-06 DALSA INC. -
Page 9: Camera Hardware Interface
3. Test and connect User Bus control signals from framegrabber. 4. Test and connect data signals output from camera. You must also set up the other components of your system, including light sources, framegrabbers, camera mounts, heat sinks, host computers, optics, and so on. 2.2 Input/Output DALSA INC. 03-32-00225-06... -
Page 10: Connectors, Pinouts, And Cables
OS1D6 OS1D5 OS1D4 OSID5B OS1D4B OS1D3B OS1D3 OS1D2 OS1D1 OS1D2B OS1D1B OS1D0B OS1D0 STROBE LVAL STROBEB LVALB not used not used not used not used not used not used not used not used not used not used 03-32-00225-06 DALSA INC. -
Page 11: Power Supplies
The companies listed below make power supplies that meet the camera’s requirements, but they should not be considered the only choices. Many high quality supplies are available from other vendors. DALSA assumes no responsibility for the use of these supplies. -
Page 12: User Bus (Inputs)
EXSYNC and optional signal PRIN. These signals must be supplied from your framegrabber to the camera using EIA-644 (differential) format, which requires the use of twisted pair cable. DALSA recommends shielded cables. Maximum cable lengths depends on environmental factors and EIA-644 limitations. See Appendix A. - Page 13 Keeping PRIN high maximizes the time the sensor is exposed to light. The exposure time is defined from the end of one frame transport to the beginning of the next frame transport. Figure 4. User-Controlled EXSYNC exposure time EXSYNC frame frame frame readout frame readout MODE transport transport PRIN DALSA INC. 03-32-00225-06...
- Page 14 To begin the effective exposure period, PRIN must be toggle low for 6.5±1µs and then high. After the desired exposure (e.g. 20 ms) EXSYNC must go low, and the exposed frame is transferred and output. cont’d... 03-32-00225-06 DALSA INC.
-
Page 15: Data Bus
LVAL high with FVAL high indicates the camera is outputting a valid line of edge. pixels. Between valid lines within a frame, LVAL goes low for 29 inactive pixels (0256 model) or 47 inactive pixels (0512 model). FVAL FVAL high indicates the camera is outputting a valid frame of data. DALSA INC. 03-32-00225-06... -
Page 16: Timing
STROBE, unlike 6 B e tw e e n line s: LVA L L O W 2 9 ST R O B Es 37 S T RO B E s previous DALSA ↓ ↓ 7 LVA L to F VA L... - Page 17 CA-D6-xxxxW User’s Manual Figure 8. CA-D6-xxxxW Detailed Timing Symbol Description Min. Typ. Max. Unit ↑LVAL to ↓STROBE ↓LVAL to ↓STROBE LSZW Data setup SETUP Data hold HOLD µs PRIN pulse EXSYNC pulse DALSA INC. 03-32-00225-06...
-
Page 18: Multi-Camera Operation
Note that toggling Data the camera outputs from tri-state to active requires a small but important amount of setup and hold time. Be sure to take this time into account when configuring your system. 03-32-00225-06 DALSA INC. -
Page 19: Optical And Mechanical Considerations
The camera’s electronics are housed in a rugged anodized aluminum case. Mounting For maximum stability and best heat sinking, DALSA recommends mounting the camera by its front plate. There are four M4 holes and seven 4-40 UNC holes tapped into the front plate for mounting the camera or attaching heat sinking. -
Page 20: Optical Interface
IMPORTANT: The camera’s Z-axis alignment is optimized for the adapter provided. Do not remove the mount adapter without contacting DALSA first, or you may misalign your lens. Illumination The amount and wavelengths of light required to capture useful images depend on the particular application. -
Page 21: Light Sources
(OD) is the distance from the first principal point to the object. Figure 9. Primary Points in a Lens System Magnification and Resolution The magnification of a lens is the ratio of the image size to the object size: DALSA INC. 03-32-00225-06... - Page 22 45 mm, and requires that 100µm in the object space correspond to each pixel in the image sensor. Using the preceding equation, the object distance must be 450 mm (0.450 m). µ 0 450 µ 03-32-00225-06 DALSA INC.
-
Page 23: Emc Operation
• Keep control and data cables as short as possible. • Control and data cables must have 95% coverage shields that include braided wire. Metallic foil shields are insufficient without braided wire. • Ensure that all cable shields have 360° electrical connection to the connector. DALSA INC. 03-32-00225-06... - Page 24 CA-D6-xxxxW User’s Manual 03-32-00225-06 DALSA INC.
-
Page 25: Troubleshooting
LOW. With EXSYNC restricted to logic HIGH, the camera will not output any data. Using an oscilloscope, check the camera end of the control signal cable and verify that EXSYNC and EXSYNCB toggle. DALSA INC. 03-32-00225-06... - Page 26 • Under varying digital data bit toggle and illumination, trigger are there continuous from LVAL while STROBE clocks? looking at each individual digital bit. Complete the table in the Product Support section and contact your DALSA representative 03-32-00225-06 DALSA INC.
-
Page 27: Specific Solutions
(±D0 - D7 on the digital output connector). The digital output data signal should change value when light is blocked from the camera lens. If any of the above signals are missing, contact DALSA product support. 4.2 Specific Solutions... - Page 28 Horizontal Lines or Patterns in Image Patterns may be caused by low frequency illumination variations. Use a DC or high frequency light source. 03-32-00225-06 DALSA INC.
-
Page 29: Product Support
If the troubleshooting flowchart indicates a problem with your camera, collect the following data about your application and situation and call your DALSA representative. Note: You may also want to photocopy this page to fax to DALSA. Customer name Organization name... - Page 30 CA-D6-xxxxW User’s Manual 03-32-00225-06 DALSA INC.
-
Page 31: Appendix A: Eia-644 Reference
IC manufacturers in a variety of fabrication technologies such as CMOS and GaAs. The EIA-644 standard does not define specific voltages, so it can migrate from 5V power supplies to 3.3V and sub-3V. DALSA recommends the use of 5V CMOS line drivers and receivers such as National Semiconductor parts DS90C0C31 quad line driver and DS90C032 quad line receiver. - Page 32 CA-D6-xxxxW User’s Manual in a DALSA camera are terminated with 100 Ohms between the (+) and (-) of a signal. Figure A-1 (a) shows an example of an EIA-644 transmission. DALSA indicates the (+) signal by the name of the signal; i.e. MCLK, while the (-)
-
Page 33: Cable Lengths
Figure 12 shows a graph of ideal communication data rate vs. cable length for the EIA-644 standard. Figure 12. EIA-644 Data Rate vs. Cable Length 1000 20% Jitter Measured at 0V Differential 20% Jitter Measured at ±0100mV Differential CAT3 Cable Typical Data Rate vs. Cable Length (National DS90C031) Cable Length (m) DALSA INC. 03-32-00225-06... - Page 34 CA-D6-xxxxW User’s Manual 03-32-00225-06 DALSA INC.
-
Page 35: Appendix B: Emc Declaration Of Conformity
’ X X X X S E R A N U A L Appendix B: EMC Declaration of Conformity DALSA INC. 605 McMurray Rd., Waterloo, ON CANADA N2V 2E9 declare under sole responsibility, that the product(s): CA-D6-0256W-ECEW CA-D6-0512W-ECEW meets the test (limits) for: Electrostatic Discharge, IEC 1000-4-2;... - Page 36 CA-D6-xxxxW User’s Manual 03-32-00225-06 DALSA INC.
-
Page 37: Index
• 21 cooling • 19 how CCD image sensors work • 8 cosmetic specifications • 7 IA-D1 image sensor • 5 DALSA User Bus Standard • 5 Illumination • 20 dark patches • 27 Input/Output • 9 Data Bus • 15 inputs (user bus) •... - Page 38 • 12 USR_EN • 16, 18 performance specifications • 7 photosensitive elements (pixels) • 8 pinout DB25 User Bus • 10 OS1 data • 10 pixels and resolution • 5 power supplies • 11 PRIN • 12 03-32-00225-06 DALSA INC.
