Summary of Contents for Hyundai ImageQuest HQL170WR

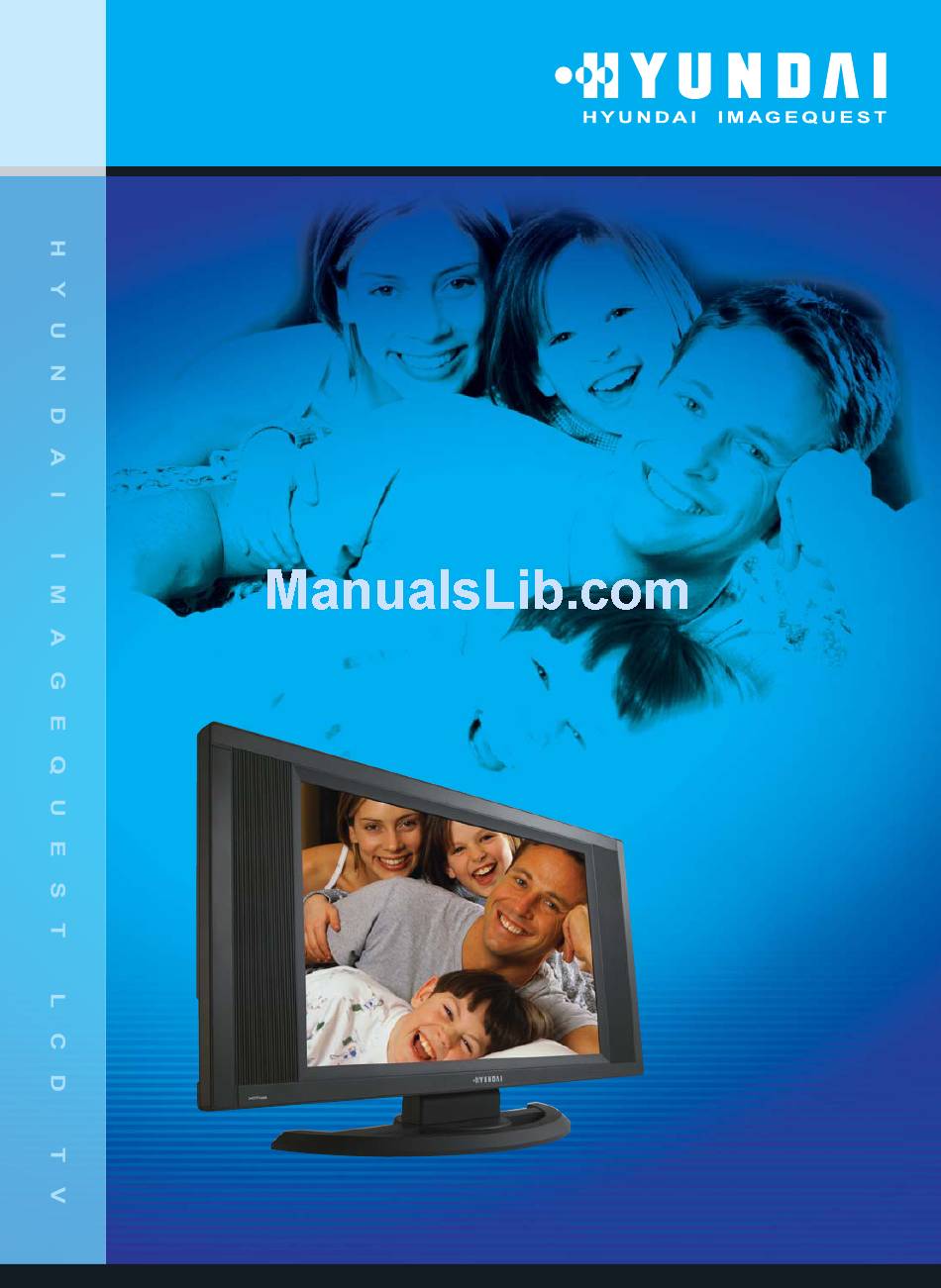

- Page 1 Model. HQL170WR/200NR User's Guide * The above image may look different from the real product.
-
Page 2: Fcc Information
FCC Information User Instructions The Federal Communications Commission Radio Frequency Interference Statement includes the following warning : NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Declaration Of Conformity
DECLARATION OF CONFORMITY HYUNDAI ImageQuest CO., LTD. Ami-ri Bubal-Eub Ichon-Si Kyungki-Do 467-860 KOREA declare under our sole responsibility that the product: Kind of equipment : LCD TV Type-Designation to which this declaration relates is in conformity with the following standard(s) or other normative document(s) -
Page 4: Important Tips
Important Tips Image Retention Effect(Image Sticking) 1. Cause : - If LCD TV displays the same pattern for a long period of time, Image Retention Effect may develop due to the LCD structure. - This is a common phenomenon that occurs in all LCD products on current market. 2. - Page 5 - This Matter(Image Sticking) is same thing under the other LCD TV's Company. - Still Image/Letter in watching TV also will be effect to Image sticking. *This matter(Image Sticking) is out of warranty. HYUNDAI LCD TV HQL170WR/200NR Wide, 4:3 aspect ratio Box or Still image...
-
Page 6: Teletext Function
Features A Wide Array of Screen Settings You can choose different screen settings depending on the type of program you are watching or the surrounding conditions (the lighting or the outside weather conditions). You can switch among Dynamic, Mild and Standard, or you can configure the screen settings for yourself. -
Page 7: Table Of Contents
How to Select the Aspect Ratio ...39 Audio Setup How to Select the Volume, Balance and Mute ...41 HYUNDAI LCD TV HQL170WR/200NR How to Set the Audio Mode(Equalize) ...42 How to Set the Desired Audio ...43 How to Listen to Stereo Sound / Dual Sound ...44 How to Select the Surround ...46... -
Page 8: Safety Precaution
Safety Precaution The contents of this section are provided for the safety of users and their property. Please read the instructions carefully before using. WARNING WARNING Do not connect multiple electrical appliances to a single outlet. - It may cause a fire due to overheating from the outlet. - Page 9 - This may cause the LCD TV to fall, resulting in serious injury to a child or adult. HYUNDAI LCD TV HQL170WR/200NR Never touch the power plug or outlet with wet hands. - This may cause electric shock.
- Page 10 Safety Precaution The contents of this section are provided for the safety of users and their property. Please read the instructions carefully before using. WARNING WARNING ...Continued from previous page Make the antenna cable loop at the entrance of the building. Any necessary action such as making the antenna cable loop at the entrance of the building should be taken to prevent rainwater on the outdoor antenna...
- Page 11 - Electric shock or fire may be caused. Do not install the product on the floor. - If it falls over, your child may be injured. HYUNDAI LCD TV HQL170WR/200NR When the LCD TV produces abnormal noise, burning smell, or smoke, unplug the LCD TV immediately and call a service center.
- Page 12 Safety Precaution The contents of this section are provided for the safety of users and their property. Please read the instructions carefully before using. WARNING ALERT ...Continued from previous page Do not allow children to climb or play on the LCD TV. - If it falls over on children, it may cause serious injury.
- Page 13 - Injury or damage may be caused when the LCD TV falls. HYUNDAI LCD TV HQL170WR/200NR When replacing batteries, make sure to match the batteries to the (+) and (-) marks in the battery compartment.
-
Page 14: Contents Of The Package
Contents of the Package To purchase additional parts, consult a distributor or selling agent. Remote Control/2 Batteries (1.5V AAA) PC signal Cable(D-SUB) Separately Sold Products If you want to purchase separately sold products, consult a service center, electronics shops, or parts seller. Component(Y, Pb, Pr) Cable Scart Cable Antenna Cable... -
Page 15: How To Use The Kensington Security Slot
* Kensington Technology Group • Address : 2000 Alameda de las Pulgas 2F San Mateo, California 94403-1289 • Tel : +1 650 572 2700 • Web-site : www.kensington.com HYUNDAI LCD TV HQL170WR/200NR Kensington security slot • Fax : +1 650 572 9675... -
Page 16: How To Use The Rear Cap And Cable Holder
How to Use the Rear Cap and Cable Holder The Rear Cap and Cable Holder allow you to organize the connection cables on the rear of the product. 1. Pressing and pulling two hooks on the rear downward can detach the rear cover. 2. -
Page 17: How To Adjust The View Angle
HYUNDAI LCD TV HQL170WR/200NR How to Adjust the View Angle You can adjust the angle of the view for the desired view angle. You can adjust any angle within a range of 30º to the left or right. You can adjust the tilt of the TV from -5º to 10º after the installation. -
Page 18: How To Install Wall Mount Support
How To Install Wall Mount Support 1. Caution 1. Install on the vertical wall surface only. 2. Do not install on the following places to protect the performance of LCD TV and to prevent malfunction. Near sprinkler Detector, Places where vibration or shock may be applied , 3. -
Page 19: How To Install Wall Mount Frame
(ATTENTION! Please use the supplied screws (4 x 12 mm or no longer than 12 mm.) HYUNDAI LCD TV HQL170WR/200NR 3. Fix the Base Frame Assy on the wall with screws or nails. 4. Hook the Fixing Panel Assy with the LCD TV attached on the Base Frame Assy. -
Page 20: Parts Names And Functions
Parts Names and Functions Front View * The above image may look different from the real product. Source button Use this button to switch among inputs connected to the LCD TV. Menu button Use this button to display or exit from menus. Volume buttons Use these buttons for your desired sound level. -
Page 21: Rear View
Audio input terminal for DVD or DTV Connect to the audio output terminal of DVD player/DTV receiver. S-video input terminal HYUNDAI LCD TV HQL170WR/200NR Use this for the better video quality than Composite video input terminal. Video and Audio Composite input terminal for VCR Connect to the Composite Video output terminal of VCR or DVD player. -
Page 22: Remote Control
Remote Control POWER/STANDBY Use this button to turn the TV set on or off. MUTE Use this button to turn the sound off completely. NUMERIC KEYS - Use these buttons to select programs and input digit - Enter program names using alphabets and special letters. PRE-PR Use these buttons to return to the previous program. - Page 23 How to Insert Batteries in Remote Control Press and hold part and push to open cover. *Battery type : 1.5V/BP-2KM(AAA/LR03G HYUNDAI LCD TV HQL170WR/200NR Teletext & Fastext Function Use this button to activate the teletext mode. LIST/FLOF To select LIST/FLOF mode.
-
Page 25: Connections
Connections Connecting Indoor/Outdoor TV Antenna(UHF/VHF) ...23 Connecting to the Antenna Input Connection on the External Equipment ...24 Connecting a VCR, Cable/Satellite Receiver ...25 Connecting a DTV Receiver or DVD Player ...26 Playing Back a Tape Recorded On a Camcorder ...27 Connecting to a PC ...28 Resolutions Supported in PC ...29 Scart Connection to the External Input/Output ...30... -
Page 26: Connecting Indoor/Outdoor Tv Antenna(Uhf/Vhf)
Connecting Indoor/Outdoor TV Antenna(UHF/VHF) Connection Method Ensure to connect an antenna cable to the antenna input connection. Power Cable How to Watch Turn on your LCD TV and press You can select VIDEO Press or Numeric keys to select the desired Programs. •... -
Page 27: Connecting To The Antenna Input Connection On The External Equipment
Connecting to the Antenna Input Connection on the External Equipment Connection Method Connect an antenna cable to VCR/Cable/Satellite Receiver with the antenna input. Use a coaxial cable to connect VCR/Cable/Satellite Receiver's antenna output to the antenna input on your LCD TV. HYUNDAI LCD TV HQL170WR/200NR VCR/Cable Receiver Coaxial cable... -
Page 28: Connecting A Vcr, Cable/Satellite Receiver
Connecting a VCR, Cable/Satellite Receiver Connection Method Connect Video/S-Video cable between Video/S-Video output terminal of VCR or Cable/Satellite receiver and Video/S-Video input terminal of LCD TV. (Connect cables and terminal in the same colors) Connect Audio cable (left:white color, right:red color) between Audio output terminal of VCR or cable/satellite receiver and Audio input terminal of LCD TV. -
Page 29: Connecting A Dtv Receiver Or Dvd Player
- Output terminal mark(Y, Pb, and Pr) of DVD player may be written as Y, B-Y, R-Y/Y-Cb-Cr / Y-Pb-Pr. (It depends on DVD player) - To watch digital broadcast, you have to separately purchase a digital set-top box and connect it to LCD TV. HYUNDAI LCD TV HQL170WR/200NR S-VIDEO VIDEO(Y, Pb, Pr) Cable... -
Page 30: Playing Back A Tape Recorded On A Camcorder
Playing Back a Tape Recorded On a Camcorder Connection Method Connect Video cable between Video output terminal of Camcoder/Game player and Video input terminal of LCD TV. (Connect cables and terminal in the same colors) Connect Audio cable (left:white color, right:red color) between Audio output terminal of Camcoder/Game player and Audio input terminal of LCD TV. -
Page 31: Connecting To A Pc
You can select COMPONENT Turn on the PC and use it. (Refer to next page on the back for the supported resolutions for PC) This product supports plug-and-play function. HYUNDAI LCD TV HQL170WR/200NR Audio Cable COMPONENT on remote control unit to select... -
Page 32: Resolutions Supported In Pc
Resolutions Supported in PC Resolution 720 x 400 640 x 480 800 x 600 1024 x 768 HQL200NR - Recommended Resolution is 640x480@60Hz - Max Resolution is 1024x768@75Hz Horizontal frequency(kHz) 31.5 31.5 37.9 37.9 46.9 48.4 56.5 HQL170WR - Recommended Resolution is 1024x768@60Hz - Max Resolution is 1024x768@75Hz Vertical frequency(Hz) 70.1... -
Page 33: Scart Connection To The External Input/Output
Scart mode. - Any inappropriate connection when connecting or removing your scart connector may generate a Blue Screen. If this happens, ensure that the scart connector is properly connected. HYUNDAI LCD TV HQL170WR/200NR VIDEO on remote control unit to select SCART. -
Page 34: Scart Pin Specifications
Scart Pin Specifications If you wish to connect other equipment via the scart connectors on your TV, contact your dealer or a qualified technician to wire the A/V cable as illustrated below. SIGNAL Audio Output R Audio Intput R Audio Output L Audio Intput GND Blue Intput GND Audio Intput L... -
Page 35: Picture Setup
Picture Setup How to Select the Picture Mode ...33 How to Set the Desired Picture ...34 How to Set Noise Reduction ...35 How to Set PIP [Mode] ...36 How to Set POP [Mode] ...36 How to Set Multi [Mode] ...37 How to Freeze Picture ...38 How to Select the Aspect Ratio ...39... -
Page 36: How To Select The Picture Mode
How to Select the Picture Mode Users can adjust picture mode automatically according to the input mode(TV, Video, S-Video, Scart, Component). Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “Mode”. -
Page 37: How To Set The Desired Picture
COLOR : Adjust colors into deeper or lighter colors. TINT : Adjust colors naturally. SHARPNESS : Adjust clarity of outline of objects. - COLOR, TINT, SHARPNESS is not applied to PC mode. - SHARPNESS is not applied to Component mode. HYUNDAI LCD TV HQL170WR/200NR MODE USER CONTRAST BRIGHTNESS... -
Page 38: How To Set Noise Reduction
How to Set Noise Reduction Noise Reduction is to eliminate some noise on the screen and is not applied to Component and PC mode. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “... -
Page 39: How To Set Pip [Mode]
- Main and sub pictures cannot have the same input source. - In case of TV mode, you can change the PIP TV program by “PR” Button. - In case of TV mode, you can change the POP TV program by “PR” Button. HYUNDAI LCD TV HQL170WR/200NR Right Down S-VEDIO... -
Page 40: How To Set Multi [Mode]
How to Set Multi [Mode] - You can watch all 9 screens in sequence. - You can watch another device's image in the MULTI while watching the main image in TV, VIDEO, S-VIDEO or SCART mode. - This function is available only with the remote control. MULTI Press the MULTI button. -
Page 41: How To Freeze Picture
The user can temporarily stop the playing picture. Press Still button. Playing picture is stopped. STILL * In PIP/POP mode, the main picture stops. To deselect Still function. Press Still button once more. HYUNDAI LCD TV HQL170WR/200NR Video S-Video Scart POP : O Supported, X Supported... -
Page 42: How To Select The Aspect Ratio
How to Select the Aspect Ratio - Users can adjust Aspect Ratio as users want. - This function is available only with the remote control. Press the ASPECT button, then Aspect Ratio ASPECT changes in order below. NORMAL NORMAL Normal General broadcast picture size. -
Page 43: Audio Setup
Audio Setup How to Select the Volume, Balance and Mute ...41 How to Set the Audio Mode(Equalize) ...42 How to Set the Desired Audio ...43 How to Listen to Stereo Sound / Dual Sound ...44 How to Select the Surround ...46 How to Select AVL ...47 How to Select the Sound Swap ...48... -
Page 44: How To Select The Volume, Balance And Mute
How to Select the Volume, Balance and Mute - Users can adjust the volume and Balance of left and right speakers. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “VOLUME or BALANCE”. -
Page 45: How To Set The Audio Mode(Equalize)
How To Directly Select Sound Mode : Press Users can select STANDARD MUSIC HYUNDAI LCD TV HQL170WR/200NR MUSIC MOVIE NEWS USER see the next page HYUNDAI LCD T V HQL260 SOUND button. MOVIE NEWS USER in order. VOLUME BALANCE EQUALIZE STANDARD 1.5 kHz... -
Page 46: How To Set The Desired Audio
How to Set the Desired Audio Users can manually adjust the sound in thier own ways. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “EQUALIZE”. -
Page 47: How To Listen To Stereo Sound / Dual Sound
Dual 1 : Your national language. Dual 2 : Foreign language (*Dual 1 or Dual 2 be will selected in turn whenever you press the button.) HYUNDAI LCD TV HQL170WR/200NR button on the remote control to select Mono or Stereo. S.MODE button will display the current status.) - Page 48 This S.MODE displays the current Audio signal status, and controls the processing of Audio signal. When power is switched on, the mode is automatically preset to either “Dual-I” or “Stereo”, depending on the current signal transmission condition. NICAM Stereo Stereo If the signal reception conditions deteriorate, setting to Mono will make your listening condition better.
-
Page 49: How To Select The Surround
Press Left and Right buttons to select “ON/OFF”. Press MENU button after the setting is done, and Menu goes to the previous menu. EXIT If the EXIT button is pressed, the menu disappears. HYUNDAI LCD TV HQL170WR/200NR VOLUME BALANCE EQUALIZE STANDARD 1.5 kHz... -
Page 50: How To Select Avl
How to Select AVL This function automatically gives a similar volume size to each channel. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “AVL”. -
Page 51: How To Select The Sound Swap
- After selecting the Audio Swap, when you turn the power off and back on, the sound of main-screen will come back. - After switching to the sound of sub-screen in PIP/POP mode, even if you change the input of sub-screen to other input, the sound of sub-screen will be still kept. HYUNDAI LCD TV HQL170WR/200NR button. -
Page 53: Pc Setup
PC Setup How to Select the Color Mode ...51 How to Select the Auto Adjust ...52 How to Set the Geometry ...53... -
Page 54: How To Select The Color Mode
How to Select the Color Mode This function is available only with the PC mode. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “Mode”. -
Page 55: How To Select The Auto Adjust
Press MENU button after the setting is done, and Menu goes to the previous menu. EXIT If the EXIT button is pressed, the menu disappears. HYUNDAI LCD TV HQL170WR/200NR AUTO ADJUST H-SIZE H-POSITION... -
Page 56: How To Set The Geometry
How to Set the Geometry - This is reduct image retention and noise. - This function is available only with the PC mode. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “... -
Page 57: Tv Setup
TV Setup How to Store Program Automatically ...55 How to Set Manual Store ...56 How to Directly Select the PR LIST ...59... -
Page 58: How To Store Program Automatically
How to Store Program Automatically - When you start using your TV for the first time, you must select your country to auto store. - You can scan channels available to you automatically. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “... -
Page 59: How To Set Manual Store
* If you do nothing within 5 seconds, you will automatically exit the NAME MENU. Go to next page, If the signal of current program is weak or distored. HYUNDAI LCD TV HQL170WR/200NR , ’ , % , + , ‚ , , / , ( , ) - Page 60 ... Continued from previous page. Press Up and Down buttons to move to “Fine Tune”. Press Left and Right buttons to adjust. The fine tuned programs are automatically stored. Press Up and Down buttons to move to “PR EDIT”. Press Left and Right buttons to select “Stored/Erased”, Program number is a current channel.
- Page 61 Press Left and Right buttons to select the “Yes” Press MENU button after the setting is done, and Menu goes to the previous menu. EXIT If the EXIT button is pressed, the menu disappears. HYUNDAI LCD TV HQL170WR/200NR COUNTRY WEST EURO AUTO STORE...
-
Page 62: How To Directly Select The Pr List
How to Directly Select the PR LIST PR LIST Press PR EDIT button. PR list items appear on the screen. Press Up and Down buttons to move to “Program No”. * Program No. : 00 ~ 99 Press Left button to select “Stored/Erased”. Program Number is a current channel. -
Page 63: Option Setup
Option Setup Choosing Your Language ...61 How to Set OSD(On-Screen-Display) Display Time ...62 How to Select the OSD Background ...63 How to Set Sleep Time ...64 How to Set Clock ...65 How to Set On /Off Time ...66 How to Set Key-Lock ...68 Displaying Information ...69 Teletext Feature ...71 Displaying the Teletext Information ...72... -
Page 64: Choosing Your Language
Choosing Your Language When you start using your TV for the first time, you must select your language preference in order to display main menu and sub menues, etc. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “... -
Page 65: How To Set Osd(On-Screen-Display) Display Time
If the EXIT button is pressed, the menu disappears. If you do not press the EXIT button after adjusting the OSD display time, the OSD menu will disappear automatically after the set time. HYUNDAI LCD TV HQL170WR/200NR 15 SECONDS 20 SECONDS... -
Page 66: How To Select The Osd Background
How to Select the OSD Background Users can select background type on On-Screen-Display. Press Menu button. MENU Menu items appear on the screen. Press Left and Right buttons to select “ ” Press Up and Down buttons to move to “Background”. -
Page 67: How To Set Sleep Time
The current SLEEP time is first displayed. Whenever you press the button, the setting is changed in order below. - - (OFF) SLEEP 15 MINUTES If the sleep time has been set, your TV will display “TURN OFF AFTER 1 MIN” before your TV turns off. HYUNDAI LCD TV HQL170WR/200NR 30 MINUTES 45 MINUTES 90 MINUTES 120 MINUTES... -
Page 68: How To Set Clock
How to Set Clock You can set the current time so that it may be displayed by pressing the “INFO” button. You must also set a clock if you wish to use the automatic on or off timers. Press Menu button. MENU Menu items appear on the screen. -
Page 69: How To Set On /Off Time
“Program No”. Cursors are moved to “Program No”. Press Left and Right buttons to set to “Program No”. Continued on next page ... HYUNDAI LCD TV HQL170WR/200NR LANGUAGE ENGLISH DISPLAY TIME 5 SECONDS BACKGROUND... - Page 70 ... Continued from previous page. (Set the volume level at the time when your LCD TV turns on.) Press Up and Down buttons and then go to step 7 if you need to set to “Volume”. Press Left and Right buttons to adjust “Volume”. Press Up and Down buttons and then go to step 8 if you need to set to “Off Time”.
-
Page 71: How To Set Key-Lock
- Bring up the Menu window using the remote control and switch off the Key-Lock. - When the remote control is not available, press the Power button within 0.5 second while pressing the Menu button on the top of the TV. HYUNDAI LCD TV HQL170WR/200NR Always LANGUAGE... -
Page 72: Displaying Information
Displaying Information You can view the channel information and setting status by pressing the “INFO” button on the remote control. INFO In case of applying TV input Press INFO button. INFO In case of applying VIDEO input Press INFO button. INFO In case of applying S-VIDEO input Press INFO button. - Page 73 INFO In case of applying PC input Press INFO button. HYUNDAI LCD TV HQL170WR/200NR 1024 x 768 CLOCK PM 12 : 30 ON TIME AM 7 : 20 OFF TIME PM 11 : 30...
-
Page 74: Teletext Feature
Teletext Feature Most TV channels provide written information services via teletext. Information provided includes with the next entry it is same : - TV programme times - News bulletins and weather forecasts - Sports results - Travel information Teletext information is often divided between several pages displayed in sequence, which can be accessed by : - Entering the number - Selecting a title in a list... -
Page 75: Displaying The Teletext Information
Twice press : The letter of the bottom half page enlarge to double size. Three times press : Return to the normal viewing STORE STORE To store teletext page in list mode. LIST/FLOF LIST/FLOF Return to LIST or FLOF mode. HYUNDAI LCD TV HQL170WR/200NR DISPLAY(ACTION) SOURCE EXIT MAIN INFO S.MODE SLEEP... - Page 76 BUTTON INDEX INDEX PAGE UP PAGE DOWN While viewing TTX information, PIP, POP, Multi Function is not supported. DISPLAY(ACTION) To display the index page, press the INDEX button. Displays the next page. Displays the previous page.
-
Page 77: Appendix
Appendix Troubleshooting ...75 Care and Cleaning ...77 Product Specifications ...78... -
Page 78: Troubleshooting
Troubleshooting Installation Problems Symptom How can I install an antenna? TV screen is not clear after installing an indoors antenna. How can I view cable broadcasting? Picture Problems Symptom Neither picture nor sound comes up. Picture turns on slowly after power is on. Vertical and horizontal lines and web patterns briefly appear on the... - Page 79 PC monitor but it doesn’t work. HYUNDAI LCD TV HQL170WR/200NR Ensure to use the remote control or power button on the product to turn off your TV. If you unplug the power cord, the stand-by consumption power becomes 0 (zero), which causes the programmed time to be erased.
-
Page 80: Care And Cleaning
Care and Cleaning Cabinet Cleaning Wipe a soft dry cloth. Do not use inflammables like Benzene or Thinner, or wet clothes. Do not scratch the panel of TV with a fingernail or pointed object. Screen Cleaning Clean the screen with a soft cloth moistened in mild glass detergent and dry with a soft cloth. -
Page 81: Product Specifications
Saving Dimension(W x D x H mm) Weight Control Type - Specification is subject to change without notice for performance improvement. HYUNDAI LCD TV HQL170WR/200NR HQL170WR HQL200NR 1 EA(with common A/V Audio) 1 EA(with common A/V Audio) 1 EA (Input, with Audio) - Page 83 Tel : +61 2 9773 7400 Fax : 61 2 9773 7177 Attn : Ms. Shiely Poniman GERMANY Hyundai ImageQuest Europe GmbH Geheimrat Hummel Platz 2 65239, Hochheim, Germany Tel : 06146 / 904 444 Fax : 06146 / 904 410 e-mail : service@hyundaiq.de...
