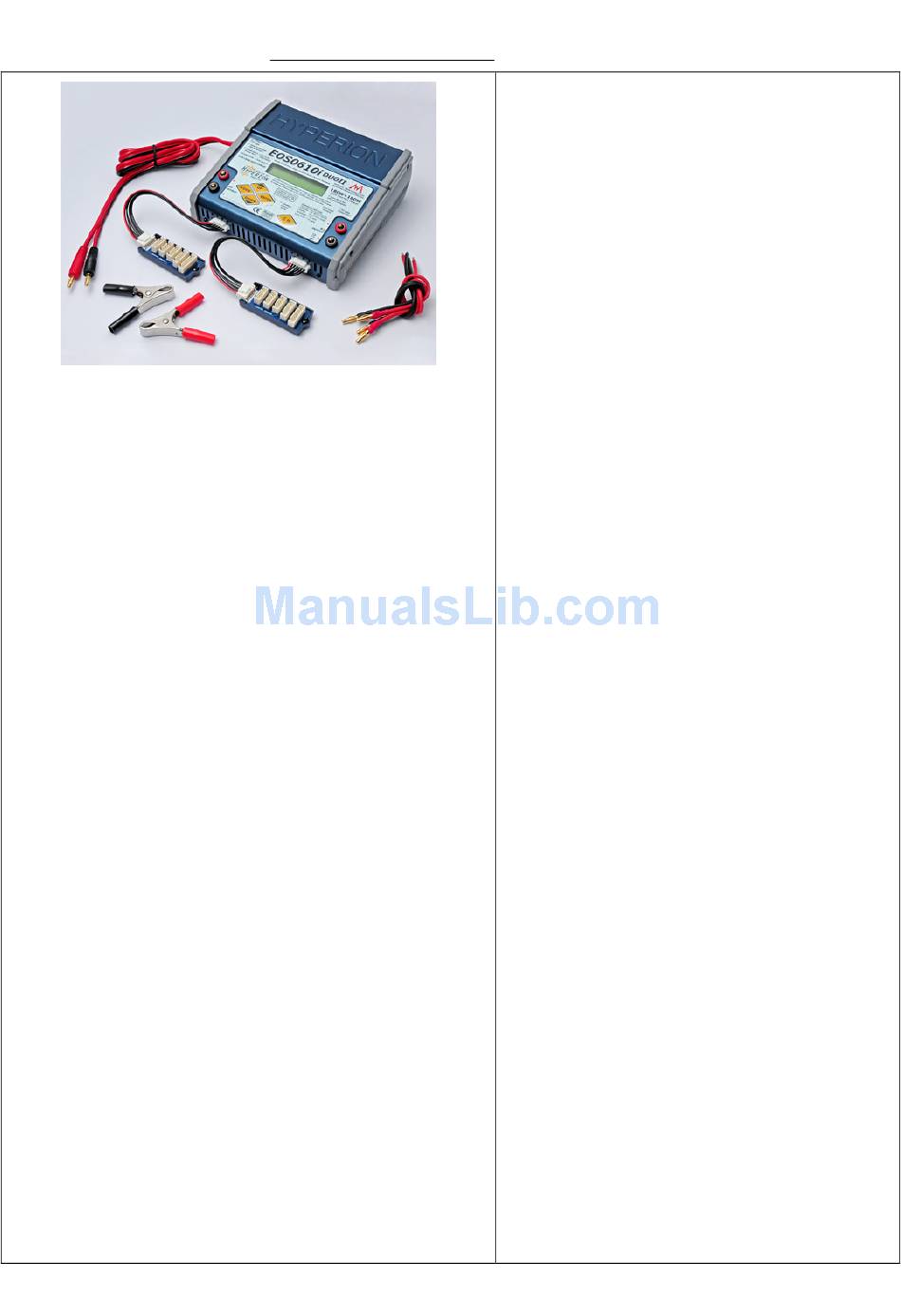

Hyperion EOS0610iDUOII Charger -
v1.2 Firmware version. Visit http://media.hyperion.hk/dn/eos for the newest manuals, firmware, and software
Warnings:
The EOS 0610i DUOII is a carefully-designed charger with many
built-in safety features, such as reverse polarity protection, input
voltage error warning, and cell-count mismatch warnings for lithium
chemistry batteries. HOWEVER, IT IS THE RESPONSIBILITY OF THE
USER TO INSURE THAT THE CHARGER IS CONFIGURED AND USED IN
A SAFE MANNER IN PROPER ENVIRONMENT.
Always be sure that the charger is properly configured for
the correct battery type
Be sure that your lithium battery pack balance connector
matches the multi-adapter type connected to the charger.
SYNC MODE charging should start with packs at nearly equal
discharge states (see more details in text)
Be sure that the batteries you charge are capable of
charging at the rate you select
Never charge batteries unattended
Charge only in a fire-resistant environment, non-flammable
surfaces such as on concrete or brick
Do not charge near easily flammable materials
Do not charge batteries inside a model
Charging outdoors is recommended whenever practical
Use only high-quality gold 4mm bullet connectors for charge
output cable connection to the charger. See "setup"
Properly insulate and regularly inspect all connectors to
eliminate the possibility of short circuit. Damage caused by
output short circuit is not covered by warranty.
Never allow the charger case to contact an AC/DC power
supply case while powered
Do not drop or cause other shock to the charger, nor subject
it to moisture, condensation or liquids
Do not attempt to charge battery packs made from different
types of cells, a mixture of old and new cells, or cells made
with chemistry not supported by the EOS 0610i DUOII
NEVER attempt to charge "non-rechargeable" cells
Do not open the case of the charger under any
circumstances. Doing so will void the warranty
Keep the charger away from children or pets at all times.
NEVER ATTEMPT TO CHARGE A SINGLE BATTERY
ACROSS BOTH PORTS.
SO WILL DAMAGE THE CHARGER, BATTERY, AND WILL VOID
YOUR WARRANTY.
DUOII is designed to charge single packs up to 6S max.
For flight packs larger than 6S, DUOII supports SYNC MODE
charging of two packs to make a single series-wired flight
pack.
(so 2x2S=4S up to 2x6S=12S series flight packs are
possible)
PUT SAFETY AHEAD OF ALL OTHER CONSIDERATIONS!
SEEK MEDICAL ATTENTION IN EVENT OF ANY INJURY!
(example: a "single unit" 10S pack)
Specifications & Features:
180W Per Port for 360 Watts Max CHARGE Output
0.1A to 10.0A max CHARGE Current in 0.1A steps
50W Per Port DISCHARGE with 10A Max Current
STORE MODE allows fast and simple
charge/discharge to 60% capacity for proper
storage of Lithium Batteries = longer battery life.
Charges/Discharges 1 to 6 cells Lithium Polymer
Batteries Per Port
Charges/Discharges 1 to 6 cells Lithium Ion
Batteries Per Port
Charges/Discharges 1 to 6 LiFePO4 (A123) cells
(LiFePO4 3.3V/cell nominal, A123 3.3v support)
Charges/Discharges/Cycles 1-16 cell NiCd/Ni-MH in
three modes: Normal, Linear, and Automatic
Charges/Discharges 1~12 cell Lead Acid Batteries
(Pb, 2V/cell)
Allows Lithium-Type batteries to 50,000mAh and
PB (lead/acid) batteries to 100Ah capacity
Two built -in Hyperion LBA10/300 Balancers with
10A max rating and 300mA max balance rate/cell
TCS - Terminal Capacity Selection
Rich Data Displays during and after charging and
balancing
PC Port for Data Logging and Firmware upgrades
Temperature Sensor Ports & Temp Stop settings*
Wide Voltage Input Range 11v~28v for higher
efficiency when charging high-voltage packs, and
compatibility with a wider selection of AC/DC
power supplies
Power Supply Amperage Control to allow reliable
charging with lower-output power supplies
Power Supply Voltage Control (PS Load Control)
works in concert with Amperage control to insure
the charger does not overload your power supply
Adjustable Power Sharing % between Outputs
Input Cable with 4mm Male Connectors + Clamps
Output Cable Set Included, with 4mm Connectors
Two, Integral, Thermostat-Controlled Cooling Fans
Rugged Aluminum Case with Insulating End Caps
2-Line, 16-Character, Yellow Backlit LCD Data
Display. Highly visible in all conditions
Total of 20 User-definable Memory Positions
DOING
Firmware upgradable via Win PC **
* Temp sensors available separate: #HP-EOSTMPSEN or EOS1210i-SEN
** Firmware upgrades require USB Adapter #HP-TI-PRGUSB and harness
#HP-EOS06-PCCBL. Firmware upgrades will only become available if and
when improvements are identified in future.
HIGH RISK CHARGING ADVISORY
Avoid charging batteries indoors. If you must charge indoors – or any
place injury to persons or damage to property could occur in the event
of fire – then be sure to:
* Keep battery well away from flammables (2 meters or more)
* Contain battery in a heavy fireproof container (such as a brick box)
* Always monitor the charge
HYPERION ACCEPTS NO RESPONSIBILITY FOR DAMAGE OR INJURY
FOR INDOOR or other HIGH RISK CHARGING ACTIVITY
User's Manual
(3.7V/cell nominal types)
(3.6V/cell nominal types)
1
