- Page 1 HYPERION EOS 5i DP AC/DC User’s Manual Power, with Ease...
-
Page 2: Specifications

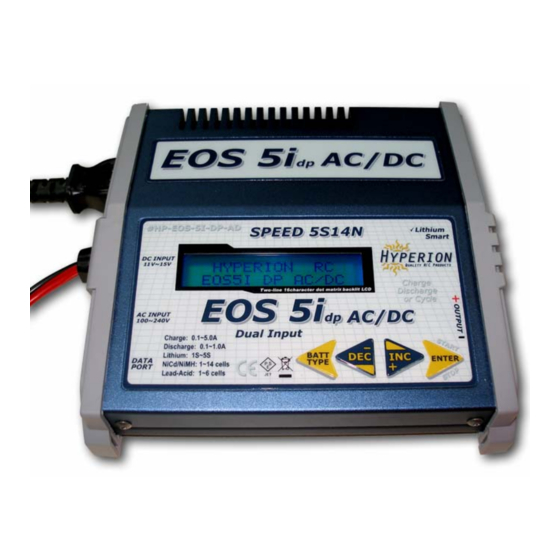

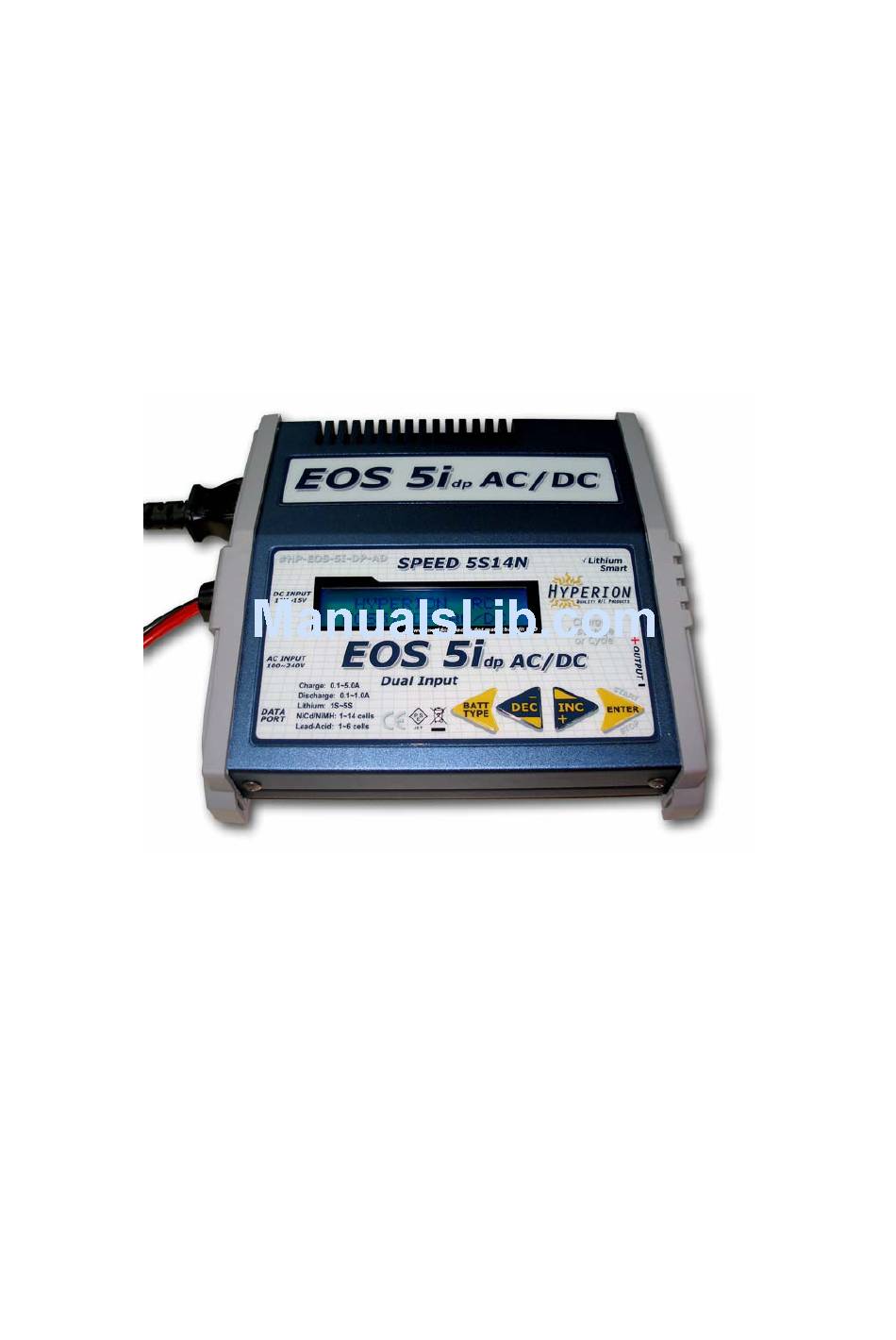

HYPERION EOS 5i DP AC/DC - User’s Manual Please read the following instructions carefully, to insure safety and convenience EOS 5i DP AC/DC Special Features *Two INPUT power choices: Use AC 100~240V at home, or DC 11~15V anywhere *Powerful, yet compact and portable with Wide support for various battery types... - Page 3 CAREFULLY FOLLOW THE BATTERY PACK MAKER’S RECOMMENDATIONS AND SAFETY ADVICE! Using the EOS 5i DP AC/DC The EOS 5i includes an Output Harness with two 4mm male “banana” connectors attached. First, solder your chosen battery connector to the bare wire ends of the harness, taking great care to observe proper polarity.
- Page 4 REVERSE POLARITY error - if the battery is connected in reverse In our NiMH charging example above, we pressed the ENTER button when “NiMH” was blinking, to go directly to charge rate setting. However, if you want to enter DISCHARGE or CYCLE modes, you can press the BATT TYPE button to start NiMH blinking, then press INC/DEC buttons to scroll through the various modes.
- Page 5 NiMH Mode BATT TYPE NiMH CHARGE NiMH DISCHARGE NiMH CYCLE D->C 5 C=3.0A D=0.50A 4.8 V C=3.0A D=0.50A SETUP ENTER ENTER NiMH CHARGE NiMH DISCHARGE NiMH CYCLE D->C 5 NiMH CYCLE C->D 5 C=3.0A D=0.50A 4.8 V C=3.0A D=0.50A C=3.0A D=0.50A ENTER SETUP...
- Page 6 Lithium Mode (for 3.7V/cell types only!) BATT TYPE LiPo CHARGE LiPo DISCHARGE C=3000mAh D=0.50 A ENTER ENTER LiPo CHARGE LiPo DISCHARGE C=3300mAh D=0.20A ENTER ENTER LiPo CHARGE LiPo DISCHARGE C=3000mAh D=0.20A START START BATTERY CHECK BATTERY CHECK WAIT PLEASE..WAIT PLEASE.
- Page 7 Pb Mode (lead-acid battery) BATT TYPE PB CHARGE PB DISCHARGE C=3.0A 12Vpack D=0.50A 12Vpack ENTER ENTER PB CHARGE PB DISCHARGE D=0.50A 12Vpack C=3.0A 12Vpack ENTER ENTER PB CHARGE PB DISCHARGE C=3.0A 12Vpack D=0.50A 12Vpack START START BATTERY CHECK BATTERY CHECK WAIT PLEASE.
-
Page 8: Data Display
Completion display If the Enter button is pressed , charge or discharge will be stopped. END 030:00 00000 NC 100mA 10.75V In order to move back to the main display, press the Enter button. Data display INPUT = 12.00V ChgCAPA=00000mAh CHG PEAK = 12.00V OUTPUT = 13.18V DchCAPA=00000mAh... - Page 9 LBA DATAPORT FEATURE The DataPort is a 3-pin output which fits the option cable #HP-EOSLBA10-DPC. See top label to locate the DataPort on the top left side of your EOS charger. There are two main functions of the DataPort connection to LBA10 balance adapter: *The LBA communicates with the charger, giving notification when balance charging is completed,or when an error is detected.
