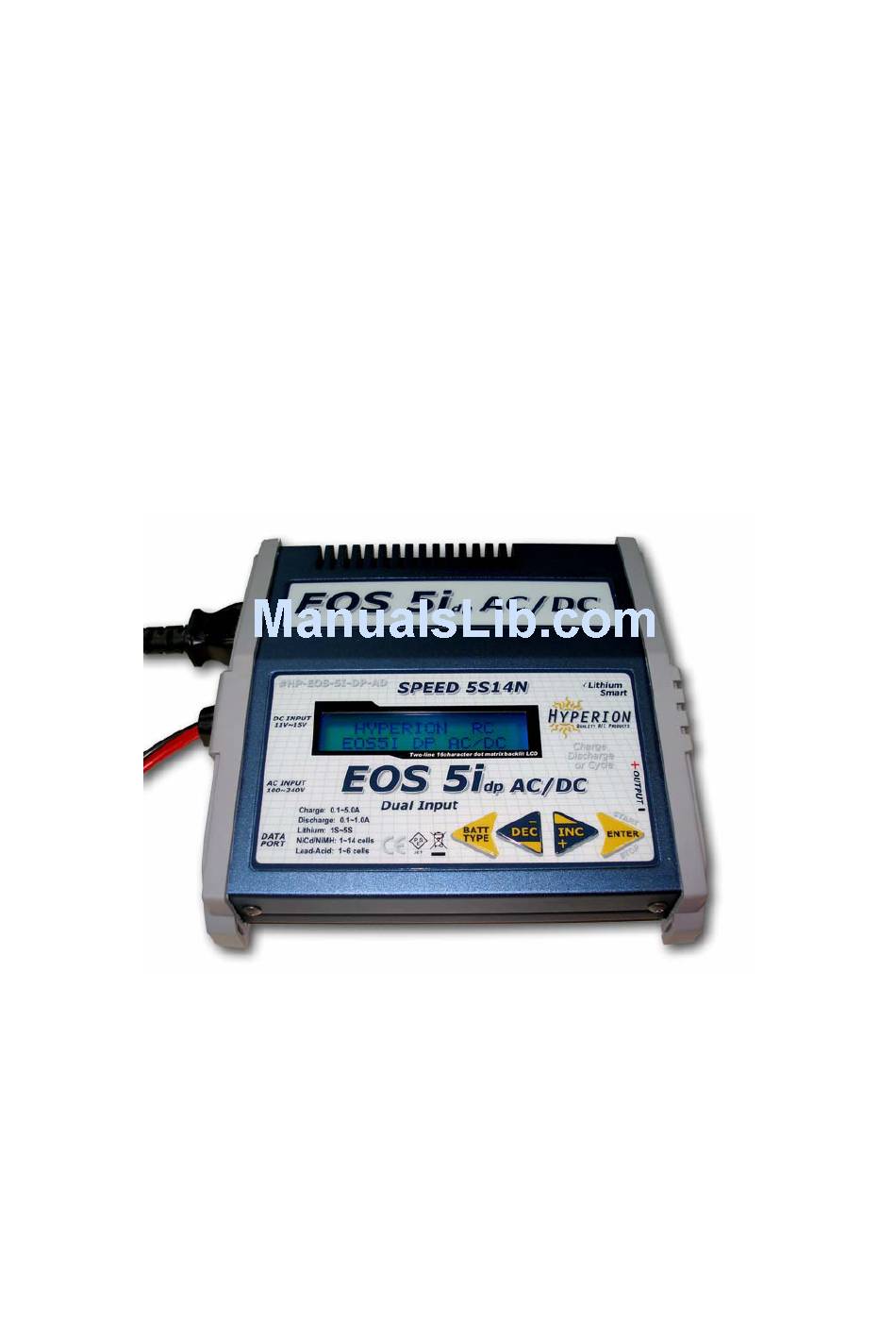

- Page 1 HYPERION EOS 5i DP AC/DC EOS5IDP-AD-A with A123 Battery Mode User’s Manual Power, with Ease...

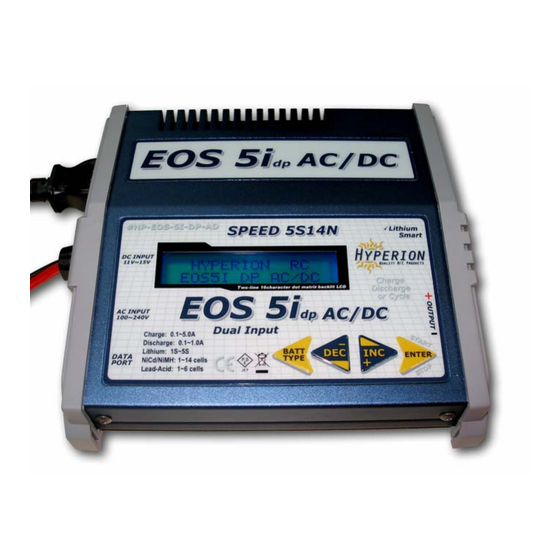

- Page 2 HYPERION EOS 5i DP AC/DC - User’s Manual EOS 5i DP AC/DC Special Features *Two INPUT power choices: Use AC 100~240V at home, or DC 11~15V anywhere *Powerful, yet compact and portable with wide support for various battery types *Charge / Discharge Modes...
- Page 3 The A123 charge/discharge modes are intended for cells with 3.3V nominal, produced by A123 Company ONLY! While the EOS5i A123 charge mode MAY work with other lithium cells having 3.3V nominal voltage, Hyperion strictly cautions against charging other-brand cells with EOS 5i A123 routine. Customers who use A123 mode to charge other-brand cells assume all risk.
- Page 4 BATT TYPE A123 CHARGE A123 DISCHARGE C=5.0A 6.6Vpack D=0.50 A 6.6Vpack ENTER ENTER A123 CHARGE A123 DISCHARGE C=5.0A 6.6Vpack D=0.50 A 6.6Vpack ENTER ENTER A123 CHARGE A123 DISCHARGE C=5.0A 6.6Vpack D=0.50 A 6.6Vpack START START BATTERY CHECK BATTERY CHECK WAIT PLEASE..WAIT PLEASE.
- Page 5 Setting charge current NiCd CHARGE Adjust and find the desired charge current which ranges from 0.1A to 5.0A with INC & DEC C=3.0A buttons. Press the ENTER button to confirm setting. Setting discharge current NiCd DISCHARGE Adjust and find the desired discharge current, ranging from 0.1A to 1A, with INC & DEC buttons. D=0.50A 4.8 V Press the ENTER button to confirm setting.
- Page 6 PB MODE (lead-acid battery) BATT TYPE PB CHARGE PB DISCHARGE C=3.0A 12Vpack D=0.50A 12Vpack ENTER ENTER PB CHARGE PB DISCHARGE D=0.50A 12Vpack C=3.0A 12Vpack ENTER ENTER PB CHARGE PB DISCHARGE C=3.0A 12Vpack D=0.50A 12Vpack START START BATTERY CHECK BATTERY CHECK WAIT PLEASE.
- Page 7 Data display INPUT = 12.00V ChgCAPA=00000mAh CHG PEAK = 12.00V OUTPUT = 13.18V DchCAPA=00000mAh DCHG AVR = 13.18V If the Battery type button is pressed for over 3 seconds, Data view will be displayed as above. Data displays can be scrolled left and right by INC & DEC buttons. If nothing pressed for 3 seconds, this display disappears. LBA DATAPORT FEATURE The DataPort is a 3-pin output which fits the option cable #HP-EOSLBA10-DPC.
- Page 8 A123 cell type WARRANTY HYPERION Chargers are guaranteed to be free from defects in materials and workmanship for a period of one calendar year from date of purchase. Your selling dealer is your first point of contact for warranty issues.
