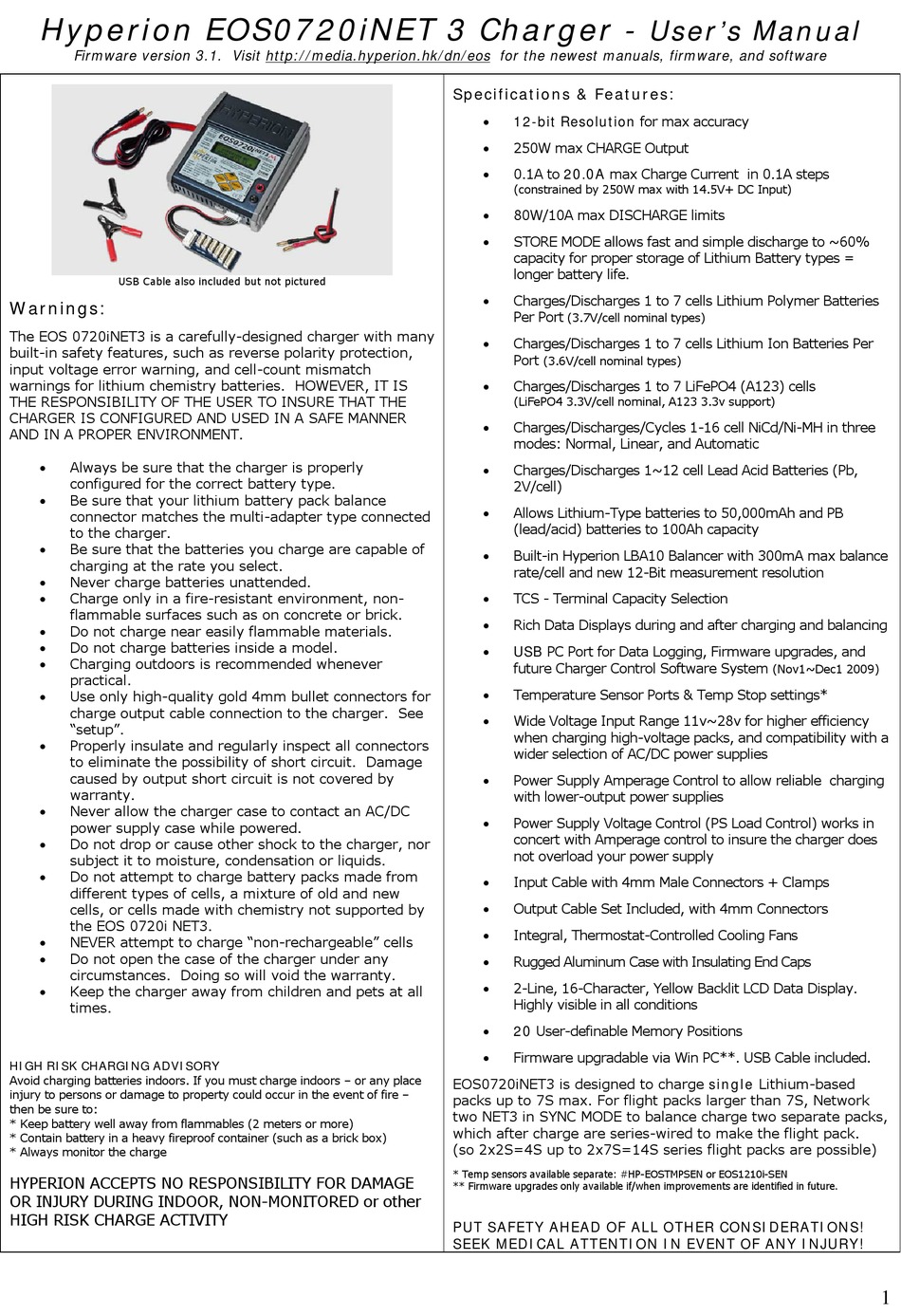

Hyperion EOS0720iNET 3 User Manual

Hyperion EOS0720iNET 3 Charger -
Firmware version 3.1. Visit http://media.hyperion.hk/dn/eos for the newest manuals, firmware, and software
USB Cable also included but not pictured
Warnings:
The EOS 0720iNET3 is a carefully-designed charger with many
built-in safety features, such as reverse polarity protection,
input voltage error warning, and cell-count mismatch
warnings for lithium chemistry batteries. HOWEVER, IT IS
THE RESPONSIBILITY OF THE USER TO INSURE THAT THE
CHARGER IS CONFIGURED AND USED IN A SAFE MANNER
AND IN A PROPER ENVIRONMENT.
 Always be sure that the charger is properly
configured for the correct battery type.
 Be sure that your lithium battery pack balance
connector matches the multi-adapter type connected
to the charger.
 Be sure that the batteries you charge are capable of
charging at the rate you select.
 Never charge batteries unattended.
 Charge only in a fire-resistant environment, non-
flammable surfaces such as on concrete or brick.
 Do not charge near easily flammable materials.
 Do not charge batteries inside a model.
 Charging outdoors is recommended whenever
practical.
 Use only high-quality gold 4mm bullet connectors for
charge output cable connection to the charger. See
"setup".
 Properly insulate and regularly inspect all connectors
to eliminate the possibility of short circuit. Damage
caused by output short circuit is not covered by
warranty.
 Never allow the charger case to contact an AC/DC
power supply case while powered.
 Do not drop or cause other shock to the charger, nor
subject it to moisture, condensation or liquids.
 Do not attempt to charge battery packs made from
different types of cells, a mixture of old and new
cells, or cells made with chemistry not supported by
the EOS 0720i NET3.
 NEVER attempt to charge "non-rechargeable" cells
 Do not open the case of the charger under any
circumstances. Doing so will void the warranty.
 Keep the charger away from children and pets at all
times.
HIGH RISK CHARGING ADVISORY
Avoid charging batteries indoors. If you must charge indoors – or any place
injury to persons or damage to property could occur in the event of fire –
then be sure to:
* Keep battery well away from flammables (2 meters or more)
* Contain battery in a heavy fireproof container (such as a brick box)
* Always monitor the charge
HYPERION ACCEPTS NO RESPONSIBILITY FOR DAMAGE
OR INJURY DURING INDOOR, NON-MONITORED or other
HIGH RISK CHARGE ACTIVITY
Specifications & Features:
 12-bit Resolution for max accuracy
 250W max CHARGE Output
 0.1A to 20.0A max Charge Current in 0.1A steps
(constrained by 250W max with 14.5V+ DC Input)
 80W/10A max DISCHARGE limits
 STORE MODE allows fast and simple discharge to ~60%
capacity for proper storage of Lithium Battery types =
longer battery life.
 Charges/Discharges 1 to 7 cells Lithium Polymer Batteries
Per Port
(3.7V/cell nominal types)
 Charges/Discharges 1 to 7 cells Lithium Ion Batteries Per
Port
(3.6V/cell nominal types)
 Charges/Discharges 1 to 7 LiFePO4 (A123) cells
(LiFePO4 3.3V/cell nominal, A123 3.3v support)
 Charges/Discharges/Cycles 1-16 cell NiCd/Ni-MH in three
modes: Normal, Linear, and Automatic
 Charges/Discharges 1~12 cell Lead Acid Batteries (Pb,
2V/cell)
 Allows Lithium-Type batteries to 50,000mAh and PB
(lead/acid) batteries to 100Ah capacity
 Built-in Hyperion LBA10 Balancer with 300mA max balance
rate/cell and new 12-Bit measurement resolution
 TCS - Terminal Capacity Selection
 Rich Data Displays during and after charging and balancing
 USB PC Port for Data Logging, Firmware upgrades, and
future Charger Control Software System
 Temperature Sensor Ports & Temp Stop settings*
 Wide Voltage Input Range 11v~28v for higher efficiency
when charging high-voltage packs, and compatibility with a
wider selection of AC/DC power supplies
 Power Supply Amperage Control to allow reliable charging
with lower-output power supplies
 Power Supply Voltage Control (PS Load Control) works in
concert with Amperage control to insure the charger does
not overload your power supply
 Input Cable with 4mm Male Connectors + Clamps
 Output Cable Set Included, with 4mm Connectors
 Integral, Thermostat-Controlled Cooling Fans
 Rugged Aluminum Case with Insulating End Caps
 2-Line, 16-Character, Yellow Backlit LCD Data Display.
Highly visible in all conditions
 20 User-definable Memory Positions
 Firmware upgradable via Win PC**. USB Cable included.
EOS0720iNET3 is designed to charge single Lithium-based
packs up to 7S max. For flight packs larger than 7S, Network
two NET3 in SYNC MODE to balance charge two separate packs,
which after charge are series-wired to make the flight pack.
(so 2x2S=4S up to 2x7S=14S series flight packs are possible)
* Temp sensors available separate: #HP-EOSTMPSEN or EOS1210i-SEN
** Firmware upgrades only available if/when improvements are identified in future.
PUT SAFETY AHEAD OF ALL OTHER CONSIDERATIONS!
SEEK MEDICAL ATTENTION IN EVENT OF ANY INJURY!
User's Manual
(Nov1~Dec1 2009)
