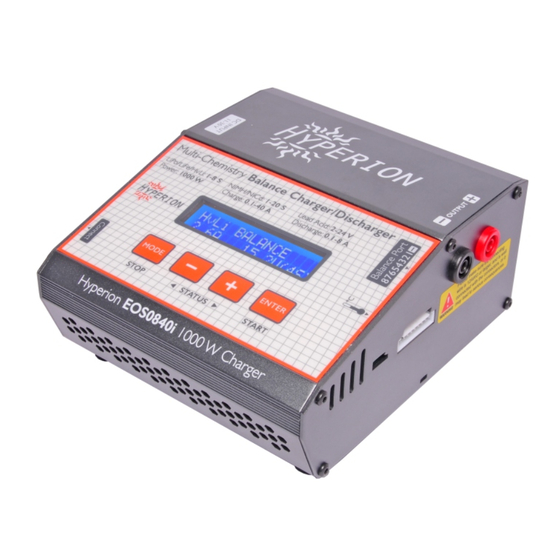

Hyperion EOS 0840i Manual

1000 w. 85 multi chemistry balance charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hyperion HK., Ltd. 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOS 0840i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyperion EOS 0840i

Summary of Contents for Hyperion EOS 0840i

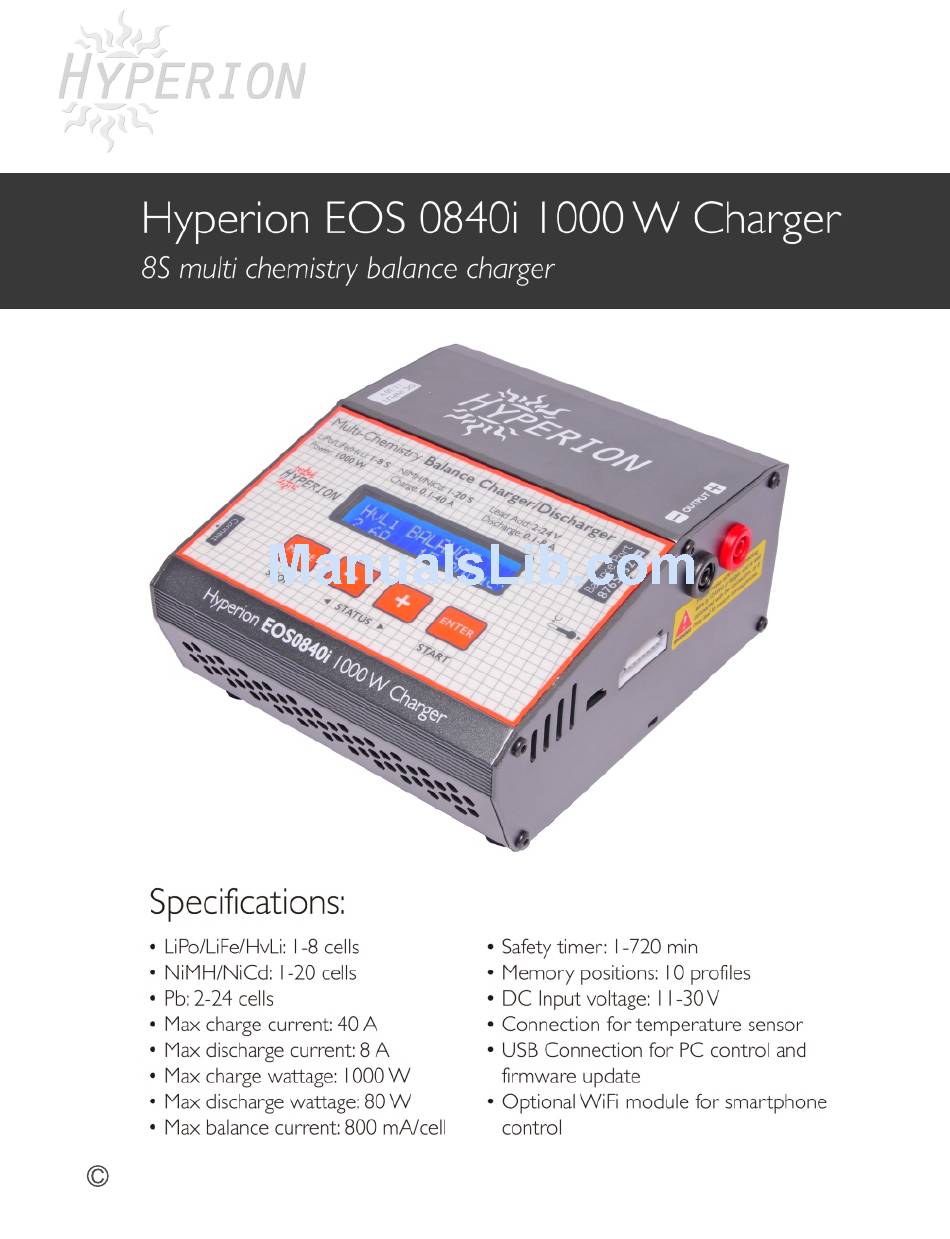

  • Page 1 Hyperion HK., Ltd. 2016...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES WARNING AND SAFETY NOTES PROGRAM FLOW CHART OPERATION OPERATING PROGRAM CHARGING PROGRAM BATTERY PROFILE MEMORY....SYSTEM SETTING BATTERY METER BATTERY RESISTANCE METER WARNING AND ERROR MESSAGE USING THE EOS PC TOOL SOFTWARE..........SPECIFICATION CONFORMITY DECLARATION MAXIMUM CIRCUIT POWER CHART COMMONLY USED TERMS WARRANTY AND SERVICE...

  • Page 3: Introduction

    EOS 0840i, such as Automatic Charging Current Limits, Capacity Limits, Temperature Threshold and Processing Time Limit. The EOS 0840i also features a total output power of 1000 watts. It can charge up to 20 cells of NiCd/NiMH or 8S Lithium batteries, the maximum current output is 40A.
  • Page 4 INTRODUCTION Before starting to use your EOS 0840i read this entire operating manual completely. This manual covers a wide range of information on operation and safety. Large 2x16 LCD Display Output Balancing Port Temperature Sensor Port Batt Prog DEC/INC Start/Enter...

  • Page 5: Special Features

    “Balancer Port” Balancing Individual Cells Battery Discharging The EOS 0840i can monitor and balance each cell of the battery individually. An error message will be indicated and the process will be ended if the charger detects abnormal readings from the batteries cell.
  • Page 6 *Temperature sensor sold seperate. Processing Time Limit: The user may define the maximum allowed time to charge, if the charger surpasses this specified time then the charger will terminate. · 04 Hyperion EOS 0840i...

  • Page 7: Warning And Safety Notes

    Be very careful to choose the correct battery type setting when charging or discharging. Failure to do so may cause damage to the batteries, or may lead the battery to catch on fire or explode. Hyperion EOS 0840i 05 ·...
  • Page 8 Always refer to the battery manufacturers charge label about the charging method, maximum charge rate and other important settings. Failure to incorrectly charge your battery may result in fire or explosion. · 06 Hyperion EOS 0840i...
  • Page 9 EOS charger NEVER attempt to charge "non-rechargeable" cells Do not open the case of the charger under any circumstances. Doing so will void the warranty Keep the charger away from children or pets at all times. Hyperion EOS 0840i 07 ·...

  • Page 10: Program Flow Chart

    NiCD BATT CURRENT 2.0A CURRENT 2.0A 0.1A CUT: 1.0V CHG>DCHG ENTER START PROGRAM SELECT NiMH CHARGE NiMH Auto CHARGE NiMH DISCHARGE NiMH RE-PEAK NiMH CYCLE NiMH BATT CURRENT 2.0A CURRENT 2.0A 0.1A CUT: 1.0V CHG>DCHG ENTER · 08 Hyperion EOS 0840i...

  • Page 11: Operation

    If you wish to select another type of battery rather than the LiPo Battery then press the MODE/STOP button to enter into BATT PROGRAM screen, this is where you can select the battery type.. Hyperion EOS 0840i 09 ·...

  • Page 12: Operating Program

    Connecting to DC power supply The EOS 0840i comes with male 4mm Bullet connectors attached to the power INPUT cables. These cables are appropriate for attaching directly to most high- quality AC-DC power supply units, such as the Hyperion DC Power supply.
  • Page 13 (See the wiring diagram below.) This diagram shows the correct way to connect your battery to the EOS 0840i while charging in the balance charge program mode. WARNING: Failure to connect as shown in this diagram will damage this charger.
  • Page 14 If both CANCEL(STOP) numbers are not identical, press STOP to go back to previous screen to recheck the number of cells of the battery pack before going ahead. · 12 Hyperion EOS 0840i...
  • Page 15 Temperature probe is needed to show external temperature. Int. Temp 37 C Temp Cut-Off Cut off temperature 　　　 50 C Safety timer ON and duration of time in minutes. Capacity cut-off ON/OFF and the preset capacity. Hyperion EOS 0840i 13 ·...

  • Page 16: Charging Program

    Discharge and Discharge -> Charge is programmable. This mode is for charging Pb battery. CHARGE This mode is for discharging Pb battery. DISCHARGE REGENERATIVE This mode is for discharging Pb battery when the power source is DISCHARGE* Lead Acid battery. · 14 Hyperion EOS 0840i...

  • Page 17: Battery Profile Memory

    [ BATT MEMORY 1 ] (10 different charge/discharge profiles can be stored). ENTER SET-> START/ENTER BATT TYPE Select the battery type(LiPo/LiFe/LiIon/HvLi/NiMH/NiCd/Pb). LiPo DEC INC BATT VOLTS Select the voltage and number of cells(1S-8S). 7.4V ( 2S ) DEC INC Hyperion EOS 0840i 15 ·...
  • Page 18 Press the START/ENTER for 3 seconds to select this profile. C:4.9A D:2.2A START/ENTER >3 Seconds 2. Loading pre-saved battery profiles ENTER CHARGER Load the memory set LOAD…… LiPo BALANCE CHG Press START/ENTER for 3 seconds to start the charging process. 4.9A 7.4V(2S) · 16 Hyperion EOS 0840i...

  • Page 19: System Setting

    SYSTEM SETTINGS When using your EOS 0840i Charger for the first time it is essential to set your user- defined settings that are relative for you and your batteries. Select the System Settings menu to alter and program the charger for your use.
  • Page 20 The external temperature of the battery. Ext. Temp The internal temperature of the charger. Int. Temp Load Factory Set Press ENTER to re-load all factory default Enter settings. Indicates the latest hardware and firmware Version version. HW:1.00 FW: 1.10 · 18 Hyperion EOS 0840i...

  • Page 21: Battery Meter

    4.20 4.19 4.19 V This screen indicate each individual cell's voltage. 4.18 4.18 4.19 V 0.00V 0.00V The screen indicate the total voltage, the highest MAIN 25.13V cell voltage and the lowest cell voltage. H4.200V L4.182V Hyperion EOS 0840i 19 ·...

  • Page 22: Battery Resistance Meter

    BATT RESISTANCE Start Enter 1: 5m Ω 　 2: 4m Ω The screen indicate each cell's resistance. 3: 3m Ω 　 4: 4m Ω This is measured in milliohms 5: 3m Ω 　 6: 4m Ω · 20 Hyperion EOS 0840i...

  • Page 23: Warning And Error Message

    The charging time is longer than the set time by the user. OVER TIME LIMIT The battery voltage is higher than the maximum voltage BATTERY WAS FULL allowed while in Balance Mode. Warning check battery. Hyperion EOS 0840i 21 ·...

  • Page 24: Using The Eos Pc Tool Software

    “micro-B” plug which can connect to charger directly. The EOS PC Tool software can be download from www.Hyperion-World.com EOS CONNECT: CONTROL VIA WI-FI MODULE (BOTH IOS AND ANDROID) This charger can be controlled and operated by smart phones via the Wi-Fi module (optional part HP-EOSWIFIMOD).
  • Page 25 Output Voltage: 11.5-24.5V DC±0.5V Output Current: 50A±1A Over Temperature Protection: <65 Cooling Method: Cooling Fan Dimensions: 305x170x85mm Net weight: 2.3kg Hyperion G6 HvLi Batteries 60Cmax or 80Cmax SPECIFICATION Cell: 900-5000mah 10% more energy-density than lipo Long-Cycle Life 2S ~ 6S Configuration THE SET CONTAINS 1.

  • Page 26: Specification

    LiPo: 3.0-3.3V/cell LiIon: 2.9—3.2V/cell HvLi: 3.1-3.4V/cell LiFe: 2.6-2.9V/cell Pb: 1.8V Discharge Wattage: 80W Balance Cells: 8 cells Memory: 10 different charge/discharge profiles Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCad. · 24 Hyperion EOS 0840i...

  • Page 27: Conformity Declaration

    CONFORMITY DECLARATION The Hyperion EOS 0840i Charger satifies all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2014. For EC directives: The product has been tested to meet the following technical standards: EN 55014-1: Electromagnetic Compatibility -...

  • Page 28: Maximum Circuit Power Chart

    40.0 16.5 18.0 40.0 19.8 21.6 40.0 23.1 25.2 39.6 26.4 28.8 34.7 4.35 40.0 HvLi 40.0 11.1 13.05 40.0 14.8 17.4 40.0 18.5 21.75 40.0 22.2 26.1 38.3 25.9 30.45 29.0 29.6 34.8 28.7 · 26 Hyperion EOS 0840i...
  • Page 29 37.0 22.8 28.5 35.0 24.0 30.0 33.3 7.35 40.0 9.80 40.0 10.0 12.25 40.0 12.0 14.70 40.0 14.0 17.15 40.0 16.0 19.60 40.0 18.0 22.05 40.0 20.0 24.50 40.0 22.0 26.95 37.1 24.0 29.40 34.0 Hyperion EOS 0840i 27 ·...

  • Page 30: Commonly Used Terms

    13.2 volts (4x3.3). If the nominal voltage of the battery is not printed on the battery's label, consult your battery manufacturer or supplier. Do not guess the rated voltage of battery. · 28 Hyperion EOS 0840i...

  • Page 31: Warranty And Service

    Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. Hyperion accepts no liability of any kind if the charger is used for any purpose other than that stated.

  • Page 32: Troubleshooting

    (8) My LCD does not light, or lights but no characters are visible. In most cases this happens when a charger has been dropped, or suffered some heavy vibration. The ribbon cable between LCD unit and charger can become loose. Have your dealer open the charger and re-seat the ribbon cable. Hyperion EOS 0840i 30 ·...

  • Page 33: Lithium Battery Care

    * NEVER discharge cells beyond 90% of capacity (plan for 80% max). NEVER fully discharge lithium packs. * STORE your packs in a cool, relatively dry location. See www.Hyperion- World.com for full details on best care practices for your valuable Lipo batteries.
  • Page 34 Manufactured by Hyperion HK., LTD. www.Hyperion-World.com All specifications and figures are subject to change without notice. Printed in China 2016.01 7504-0539-02...
