Hyperion EOS 0606i AC/DC User Manual

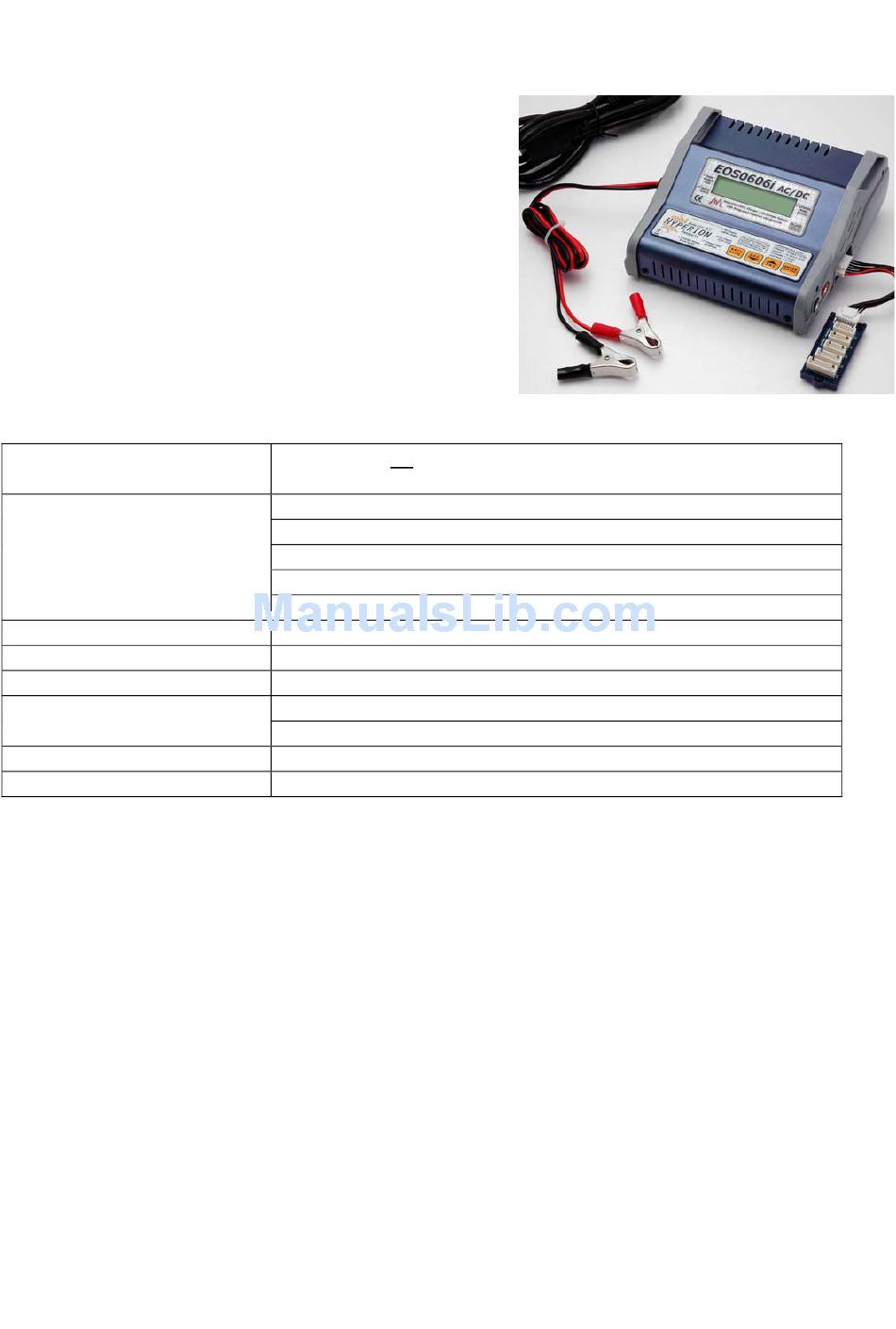

HYPERION EOS 0606i AC/DC
EOS 0606i AC/DC Special Features
*Two INPUT power choices:
Use AC 100V~240V at home OR DC 11V~15V anywhere
*Powerful, yet compact and portable with wide support for battery types
*Integrated Hyperion LBA Balancer for LiPo
*Balance Multi-Adapter for 2S to 6S packs included
*Charge and Discharge Modes (and Cycling for NiMh and NiCd)
*Clear and easy-to-read LCD Screen with Warnings common setup errors
*Packaged in a rugged aluminum case - Long Input leads
*Hyperion Balance Multi-Connector Included. Option multi-connectors for
most common brands are also available (see details end of document)

Specifications

Input voltage range
Appropriate battery types and
range of series-connected cells
Charge current
Discharge current
Trickle charge current (NiCd, NiMH)
Charge termination
Cycling Modes (NiCd, NiMH)
Display type

Safety precautions

• KEEP CHARGER AWAY FROM CHILDREN AND PETS AT ALL TIMES!
• This charger is ONLY for NiCd/NiMH, Lithium (3.7V/cell), A123 (3.3V/cell), and Lead-Acid (2.0V/cell)
type cells. DO NOT connect others, such as 3.6V/cell Lithium-Ion, or non-rechargeable batteries!
• Always place the charger on a firm, level, and fireproof surface for charging
• Do not place the battery or charger on or near flammable materials while in use:
Keep away from carpets, cluttered workbenches, etc
• Do not exceed cell manufacturer's suggested max charge rates
• Do not use automotive type battery chargers to power the charger
• Do not leave the charger unattended while charging
• Do not allow water, moisture or foreign objects into the charger
• Do not open the charger, nor attempt any repair as it is dangerous and will void your warranty
• Do not obstruct the air intake holes on the charger
• ALWAYS follow correct connection sequence, as given below
• CAREFULLY FOLLOW THE BATTERY PACK MAKER'S RECOMMENDATIONS AND SAFETY ADVICE!

Initial Setup

The EOS 0606i requires 4mm Bullet Connectors (aka Banana Plugs) on 12awg wire leads for output harness between charger
and battery main wires. Harness wire leads should never exceed 20cm in length. Pre-assembled output harnesses are
available under Hyperion Part #HP-EOSOUTCORD. Solder your chosen battery-side connector to the bare wire ends of the
harness, taking great care to observe proper polarity.
If, after carefully reading the following pages on usage, you have any difficulty using the charger please refer to the final
pages for troubleshooting guide and warranty terms. It is well to carefully check your charger before making a return, as
problems in setup, cabling, or power supply are much more common than defects in the charger. Chargers returned by the
user and later found not defective will only be returned to the user at the user's expense and may incur a service charge.
EOS0606I-AD USER'S MANUAL
and LiFe
(3.7v) (3.3v)
11.0-15.0V DC OR 100~240V AC at 50~60 Hz
Only ONE source may be connected at a time!
1-14 NiCd – Nickel-Cadmium cells
1-14 NiMH – Nickel-Metal Hydride cells
1-6 LiPo – Lithium Polymer cells, 100~6000mAh
1-6 LiFe – Lithium Iron
1-6 Lead-Acid cells (2V per cell nominal)
0.1A ~ 6.0A MAX, by 100mA steps (50W limit)
0.1A ~ 1.0A MAX, by 10mA steps (5W limit)
0 ~ 200mA
"Delta V" peak detection for NiCd/NiMH
"CV/CC" for Lithium and Lead-Acid Batteries
Charge>Discharge or Discharge>Charge
2-line, 16 character blue backlit LCD
based cells
(3.3V/cell types, inc. A123 brand cells / LiFePO4 cells)
(3.7V/cell type only)
