Hyperion EOS0720iNET User Manual

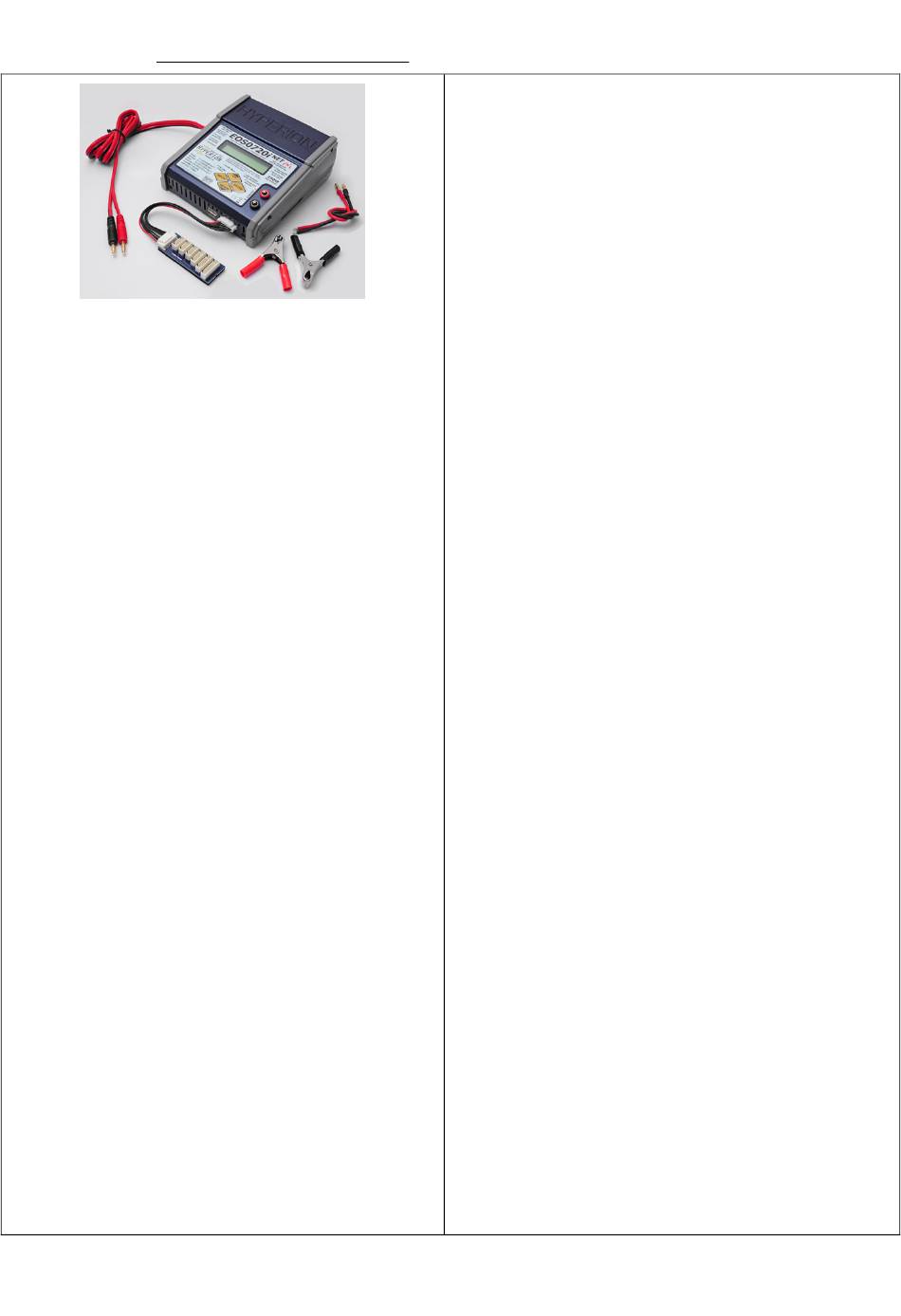

Hyperion EOS0720iNET Charger -
Visit http://media.hyperion.hk/dn/eos for the newest manuals, firmware, and software
Warnings:
The EOS 0720iNET is a carefully-designed charger with many
built-in safety features, such as reverse polarity protection,
input voltage error warning, and cell-count mismatch
warnings for lithium chemistry batteries. HOWEVER, IT IS
THE RESPONSIBILITY OF THE USER TO INSURE THAT THE
CHARGER IS CONFIGURED AND USED IN A SAFE MANNER
AND IN A PROPER ENVIRONMENT.
• Always be sure that the charger is properly
configured for the correct battery type.
• Be sure that your lithium battery pack balance
connector matches the multi-adapter type connected
to the charger.
• Be sure that the batteries you charge are capable of
charging at the rate you select.
• Never charge batteries unattended.
• Charge only in a fire-resistant environment, non-
flammable surfaces such as on concrete or brick.
• Do not charge near easily flammable materials.
• Do not charge batteries inside a model.
• Charging outdoors is recommended whenever
practical.
• Use only high-quality gold 4mm bullet connectors for
charge output cable connection to the charger. See
"setup".
• Properly insulate and regularly inspect all connectors
to eliminate the possibility of short circuit. Damage
caused by output short circuit is not covered by
warranty.
• Never allow the charger case to contact an AC/DC
power supply case while powered.
• Do not drop or cause other shock to the charger, nor
subject it to moisture, condensation or liquids.
• Do not attempt to charge battery packs made from
different types of cells, a mixture of old and new
cells, or cells made with chemistry not supported by
the EOS 0720i NET.
• NEVER attempt to charge "non-rechargeable" cells
• Do not open the case of the charger under any
circumstances. Doing so will void the warranty.
• Keep the charger away from children or pets at all
times.
HIGH RISK CHARGING ADVISORY
Avoid charging batteries indoors. If you must charge indoors – or any place
injury to persons or damage to property could occur in the event of fire –
then be sure to:
* Keep battery well away from flammables (2 meters or more)
* Contain battery in a heavy fireproof container (such as a brick box)
* Always monitor the charge
HYPERION ACCEPTS NO RESPONSIBILITY FOR DAMAGE
OR INJURY DURING INDOOR, NON-MONITORED or other
HIGH RISK CHARGE ACTIVITY
Specifications & Features:
• 250W max CHARGE Output
• 0.1A to 20.0A max Charge Current in 0.1A steps
(constrained by 250W max)
• 80W/10A max DISCHARGE limits
• STORE MODE allows fast and simple discharge to 60%
capacity for proper storage of Lithium Battery types =
longer battery life.
• Charges/Discharges 1 to 7 cells Lithium Polymer Batteries
Per Port
(3.7V/cell nominal types)
• Charges/Discharges 1 to 7 cells Lithium Ion Batteries Per
Port
(3.6V/cell nominal types)
• Charges/Discharges 1 to 7 LiFePO4 (A123) cells
(LiFePO4 3.3V/cell nominal, A123 3.3v support)
• Charges/Discharges/Cycles 1-16 cell NiCd/Ni-MH in three
modes: Normal, Linear, and Automatic
• Charges/Discharges 1~12 cell Lead Acid Batteries (Pb,
2V/cell)
• Allows Lithium-Type batteries to 50,000mAh and PB
(lead/acid) batteries to 100Ah capacity
• Built-in Hyperion LBA10 Balancer with 300mA max balance
rate/cell
• TCS - Terminal Capacity Selection
• Rich Data Displays during and after charging and balancing
• PC Port for Data Logging and Firmware upgrades
• Temperature Sensor Ports & Temp Stop settings*
• Wide Voltage Input Range 11v~28v for higher efficiency
when charging high-voltage packs, and compatibility with a
wider selection of AC/DC power supplies
• Power Supply Amperage Control to allow reliable charging
with lower-output power supplies
• Power Supply Voltage Control (PS Load Control) works in
concert with Amperage control to insure the charger does
not overload your power supply
• Input Cable with 4mm Male Connectors + Clamps
• Output Cable Set Included, with 4mm Connectors
• Integral, Thermostat-Controlled Cooling Fans
• Rugged Aluminum Case with Insulating End Caps
• 2-Line, 16-Character, Yellow Backlit LCD Data Display.
Highly visible in all conditions
• 10 User-definable Memory Positions
• Firmware upgradable via Win PC **
EOS0720iNET is designed to charge single Lithium-based packs
up to 7S max. For "flight packs" higher than 7S, Network
two 0720i in SYNC MODE for charging of two packs to make
a single series-wired flight pack.
(series-wired flight packs from 2x2S=4S to 2x7S=14S are possible)
* Temp sensors available separate: #HP-EOSTMPSEN or EOS1210i-SEN
** Firmware upgrades require USB Adapter #HP-TI-PRGUSB and harness #HP-EOS06-
PCCBL. Firmware upgrades will only become available if and when improvements are
identified in future.
PUT SAFETY AHEAD OF ALL OTHER CONSIDERATIONS!
SEEK MEDICAL ATTENTION IN EVENT OF ANY INJURY!
User's Manual
1
