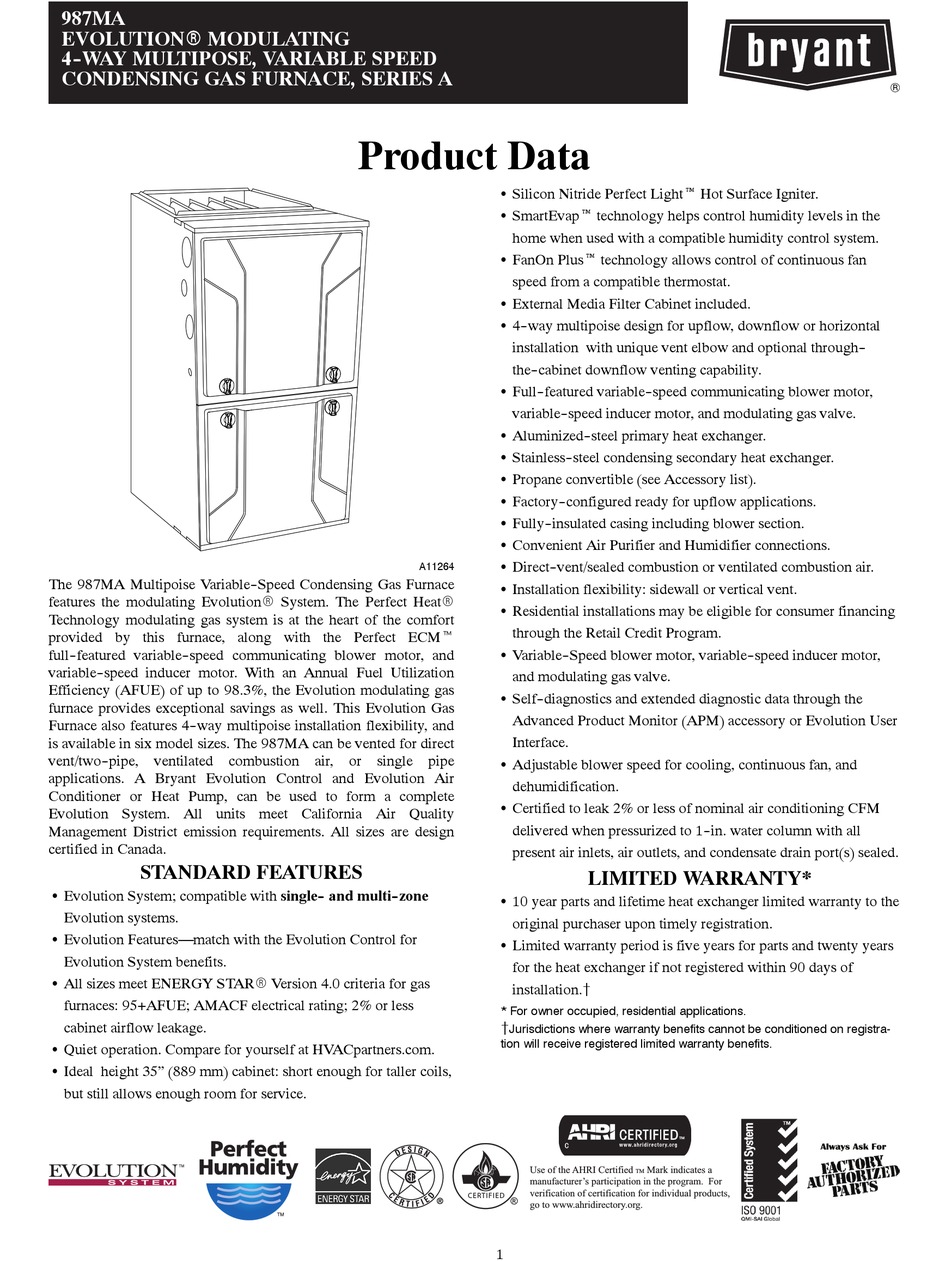

Bryant EVOLUTION 987MA Product Data

987MA
EVOLUTIONR MODULATING
4- -WAY MULTIPOSE, VARIABLE SPEED
CONDENSING GAS FURNACE, SERIES A
The 987MA Multipoise Variable- -Speed Condensing Gas Furnace
features the modulating EvolutionR System. The Perfect HeatR
Technology modulating gas system is at the heart of the comfort
provided by this furnace, along with the Perfect ECMt
full- -featured variable- -speed communicating blower motor, and
variable- -speed inducer motor. With an Annual Fuel Utilization
Efficiency (AFUE) of up to 98.3%, the Evolution modulating gas
furnace provides exceptional savings as well. This Evolution Gas
Furnace also features 4- -way multipoise installation flexibility, and
is available in six model sizes. The 987MA can be vented for direct
vent/two- -pipe, ventilated combustion air, or single pipe
applications. A Bryant Evolution Control and Evolution Air
Conditioner or Heat Pump, can be used to form a complete
Evolution System. All units meet California Air Quality
Management District emission requirements. All sizes are design
certified in Canada.
STANDARD FEATURES
S Evolution System; compatible with single- - and multi- -zone
Evolution systems.
S Evolution Features—match with the Evolution Control for
Evolution System benefits.
S All sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage.
S Quiet operation. Compare for yourself at HVACpartners.com.
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
Product Data
S Silicon Nitride Perfect Light™ Hot Surface Igniter.
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system.
S FanOn Plus™ technology allows control of continuous fan
speed from a compatible thermostat.
S External Media Filter Cabinet included.
S 4- -way multipoise design for upflow, downflow or horizontal
installation with unique vent elbow and optional through- -
the- -cabinet downflow venting capability.
S Full- -featured variable- -speed communicating blower motor,
variable- -speed inducer motor, and modulating gas valve.
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
S Propane convertible (see Accessory list).
S Factory- -configured ready for upflow applications.
S Fully- -insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct- -vent/sealed combustion or ventilated combustion air.
A11264
S Installation flexibility: sidewall or vertical vent.
S Residential installations may be eligible for consumer financing
through the Retail Credit Program.
S Variable- -Speed blower motor, variable- -speed inducer motor,
and modulating gas valve.
S Self- -diagnostics and extended diagnostic data through the
Advanced Product Monitor (APM) accessory or Evolution User
Interface.
S Adjustable blower speed for cooling, continuous fan, and
dehumidification.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.
S 10 year parts and lifetime heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
{ Jurisdictions where warranty benefits cannot be conditioned on registra-
tion will receive registered limited warranty benefits.
Use of the AHRI Certified
manufacturer's participation in the program. For
verification of certification for individual products,
CERTIFIED
go to www.ahridirectory.org.
1

LIMITED WARRANTY*

Mark indicates a
TM
Always Ask For
