Bryant EVOLUTION 986TA Series Product Data

986TA
EVOLUTIONR TWO- -STAGE
4- -WAY MULTIPOISE, VARIABLE SPEED
CONDENSING GAS FURNACE, SERIES A
The 986TA Multipoise Variable- -Speed Condensing Gas Furnace is
features the two- -stage EvolutionR System. The Perfect HeatR
technology two- -stage gas valve is at the heart of the comfort
provided by this furnace, along with the variable- -speed ECM
blower motor, and two- -speed inducer motor. With an Annual Fuel
Utilization Efficiency (AFUE) up to 96.5%, the Evolution
two- -stage gas furnace provides exceptional savings as well when
compared to standard gas furnaces. This Evolution Gas Furnace
also features 4- -way multipoise installation flexibility, and is
available in six model sizes. The 986TA can be vented for direct
vent/two- -pipe, ventilated
applications. A Bryant Evolution Control and Evolution Air
Conditioner or Heat Pump, can be used to form a complete
Evolution System. All units meet California Air Quality
Management District emission requirements. All sizes are design
certified in Canada.
STANDARD FEATURES
S EvolutionR System; compatible with single- -zone Evolution
systems.
S Evolution Features—match with the Evolution Control for
Evolution System benefits.
S All sizes meet ENERGY STARR Version 4.0 criteria for gas
furnaces: 95+AFUE; AMACF electrical rating; 2% or less
cabinet airflow leakage.
S Quiet operation. Compare for yourself at HVACpartners.com.
Product Data
combustion air, or single- -pipe
S Ideal height 35" (889 mm) cabinet: short enough for taller coils,
but still allows enough room for service.
S Silicon Nitride Perfect Light™ Hot Surface Igniter.
S SmartEvap™ technology helps control humidity levels in the
home when used with a compatible humidity control system.
S FanOn Plus™ technology allows control of continuous fan speed
from a compatible thermostat.
S External Media Filter Cabinet included.
S 4- -way multipoise design for upflow, downflow or horizontal
installations, with unique vent elbow and optional through- -
the- -cabinet downflow venting capability.
S Full- -featured variable- -speed blower motor, two- -speed inducer
motor, and two- -stage gas valve.
S Self- -diagnostics and extended diagnostic data through the
Advanced Product Monitor (APM) accessory or Evolution User
Interface.
S Adjustable blower speed for cooling, continuous fan, and
dehumidification.

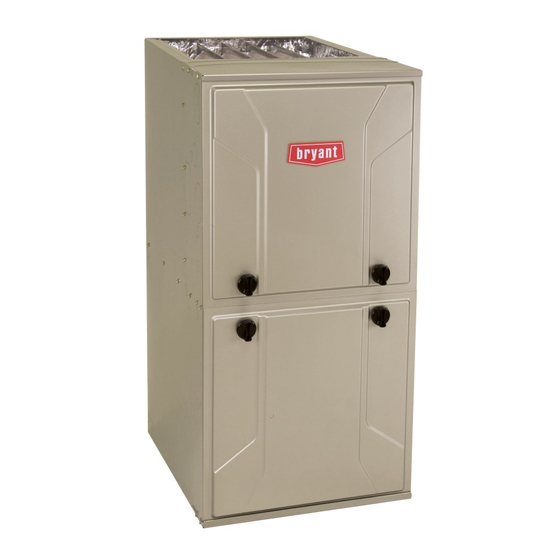

A11264
S Aluminized- -steel primary heat exchanger.
S Stainless- -steel condensing secondary heat exchanger.
S Propane convertible (See Accessory list).
S Factory- -configured ready for upflow applications.
S Fully- -insulated casing including blower section.
S Convenient Air Purifier and Humidifier connections.
S Direct- -vent/sealed combustion, single- -pipe venting or
ventilated combustion air.
S Installation flexibility: sidewall or vertical vent.
S Residential installations may be eligible for consumer financing
through the Retail Credit Program.
S Certified to leak 2% or less of nominal air conditioning CFM
delivered when pressurized to 1- -in. water column with all
present air inlets, air outlets, and condensate drain port(s) sealed.

LIMITED WARRANTY*

S 10 year parts and lifetime heat exchanger limited warranty to the
original purchaser upon timely registration.
S Limited warranty period is five years for parts and twenty years
for the heat exchanger if not registered within 90 days of
installation.{
* For owner occupied, residential applications.
Jurisdictions where warranty benefits cannot be conditioned on registra-
{
tion will receive registered limited warranty benefits.
Use of the AHRI Certified
manufacturer's participation in the program. For
verification of certification for individual products,
CERTIFIED
go to www.ahridirectory.org.
