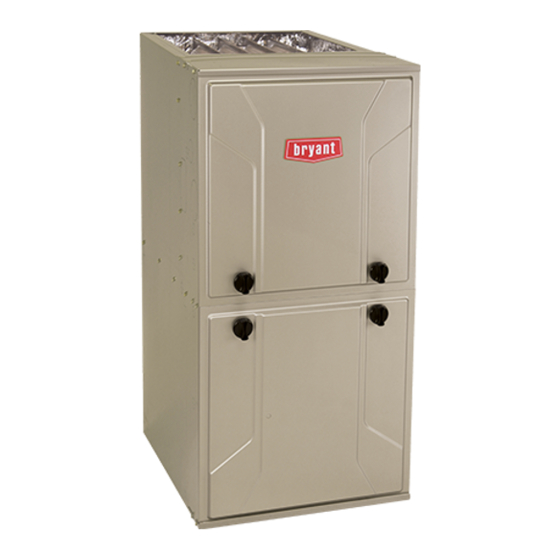

Single stage 4-way multipoise condensing gas furnace
Hide thumbs Also See for A Series:
Table of Contents

Advertisement

Quick Links

915SA
SINGLE STAGE 4- -WAY MULTIPOISE
CONDENSING GAS FURNACE
SERIES A AND B
Installation, Start- -up, Operating and
Service and Maintenance Instructions
NOTE: Read the entire instruction manual before starting the installation.
