- Page 1 User Manual For Reflex Flash Duplicator V 2.1...
- Page 2 WARNING! THIS FLASH MEMORY DUPLICATOR IS MEANT FOR BACK UP AND DISTRIBUTION OF ORIGINAL DATA AUTHORED OR OWNED BY THE USER. ANY COPIES MADE FROM THIS FLASH MEMORY DUPLICATOR ARE THE COPYRIGHTED, PROPERTY OF THE AUTHOR OR COMPANY WHO OWNS THE SOURCE DATA.
-
Page 3: Table Of Contents
Table of Contents Title Page Chapter 1: Introduction & Manual Overview ………………...…….……….……… Before getting started ………….……………………………………….……. Package Accessory List ………………………………...…………………… Chapter Overview ……………………………………...……………….……. Chapter 2: Getting to know the system ………………………….………………… System Overview ………………………………………...……….…………. LCD Display & Operation Panel ……...………..…...………………………. ... -
Page 4: Chapter 1: Introduction & Manual Overview
Chapter 1: Introduction & Manual Overview This system is a reliable, high performance, high speed, standalone manual duplication system. With its professional industrial design and simple user interface, it will make your duplicating experience easier than ever. Before getting started: Before starting to use this system, please read the following to ensure proper operation: 1. -
Page 5: Package Accessory List
Package Accessory List: System Power Cord System Operation User Manual (This manual) Chapter Overview: Chapter 2: Getting to know the system This chapter describes the physical features and instructions of how to operate the system. Chapter 3: Basic Operations Guide This chapter describes how to perform basic operations like Making Copies, etc. -
Page 6: Chapter 2: Getting To Know The System

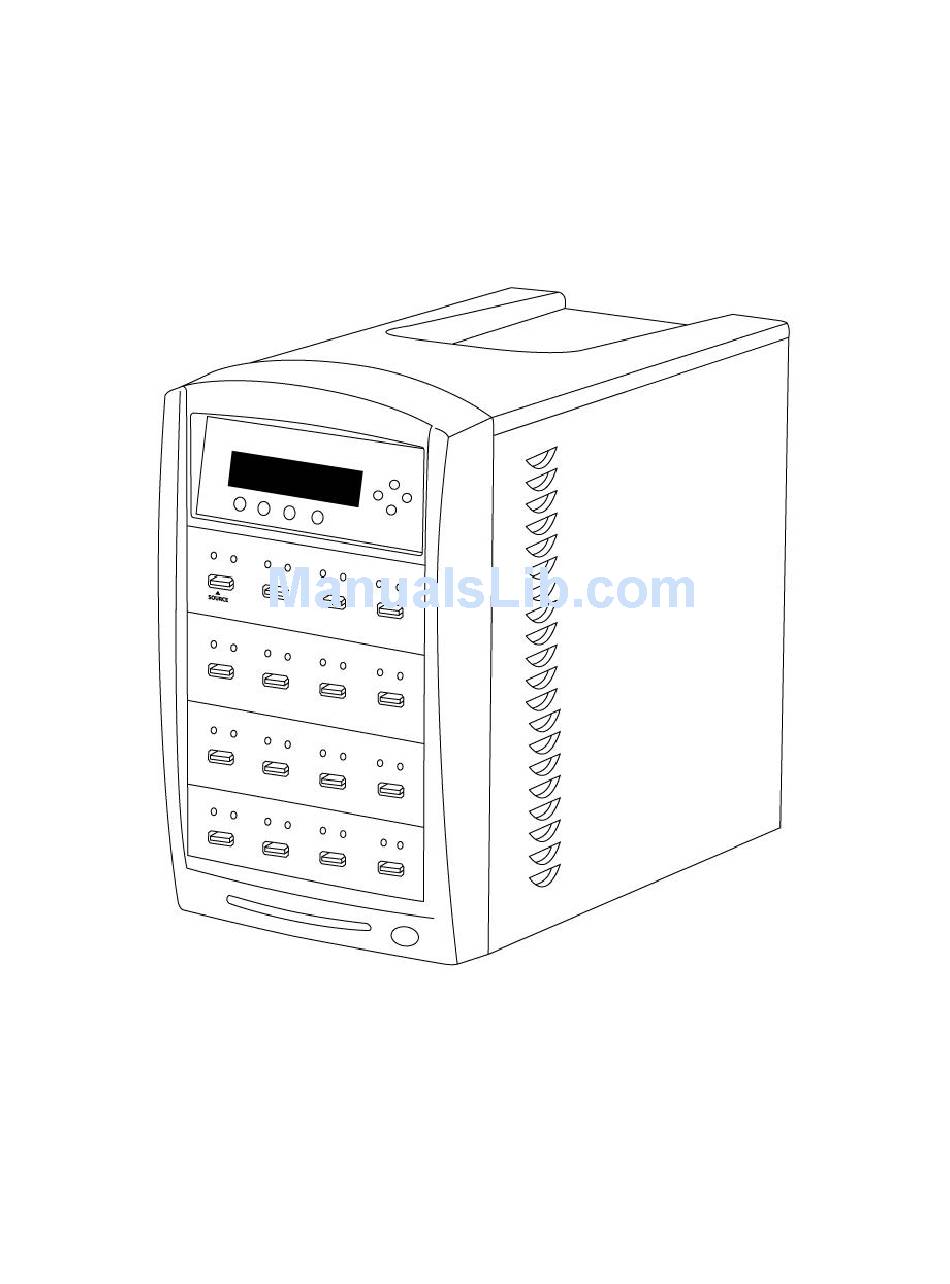

Chapter 2: Getting to know the system System Overview The image below is a representation of the flash duplicator casing. The design of the casing may vary but the unit continue to operate using similar principles. Figure 1-1 System Controls and Display The components shown in Figure 1-1 are: 1. -
Page 7: Lcd Display & Operation Panel
LCD Display & Operation Panel *The below image is for reference only. (Actual screen may vary. ) Up Arrow Button Menu/Option Scroll Up Down Arrow Button Menu/Option Scroll Down Enter/OK Button Enter into the Menu Execute the Function Submit the Setting change ... -
Page 8: Menu Navigation
Menu Navigation The functions and settings that operate this unit are organized in a menu tree structure. The user accesses the 4 buttons on the controller interface panel to navigate through the menu chart and select the desired function or setting: Menu/Option Scroll Up Menu/Option Scroll Down Enter into the Menu... -
Page 9: Chapter 3: Basic Operations
Chapter 3: Basic Operations Making Copies of a Flash Device This process will copy a flash device (ex. USB, SD, CF, etc), inserted into the Source Port, onto one or more target flash devices simultaneously. There are two ways to make copies of a flash device (ex. USB, SD, CF, etc): Smart Copy: This is the recommended and fastest approach to making copies since it will scan the flash device and copy only the area that contains data. - Page 10 Insert empty target flash devices (ex. USB, SD, CF, (the drive(s) to receive etc) data) into the other non- Source ports. Note: flash devices inserted contain data, all data on those devices will be erased permanently. Please insert with caution. Step 2.
- Page 11 Upon completion, the system will display the job report. Below explains the various items in the job report: OK:03 – indicates the number of copies passed in this process. (3 in this example) NG:00 – indicates the number of copies failed in this process. (0 in this example) Job:003 –...
-
Page 12: Make Copies Of A Flash Device Via Async Copy
Making Copies of a Flash Device via Async Copy This revolutionary (patent pending) process will perform the duplication of any flash device (ex. USB, SD, CF, etc) the moment it is inserted into the system without waiting for the current job to be completed. - Page 13 Insert empty target flash devices (ex. USB, SD, CF, (the drive(s) to receive etc) data) into the other non- Source ports. Note: flash devices inserted contain data, all data on those devices will be erased permanently. Please insert with caution. Press the DOWN button to be guided to the “Async Copy”...
- Page 14 Pass/Fail Counter: During the copying process, the Pass/Fail counter is shown once every five seconds. It indicates number of passes and failures during the entire job. Async Copy LED display: GREEN LED RED LED DESCRIPTION The device in this Port is currently Blinking copying data.
- Page 15 When a flash device has successfully copied, both the GREEN LED and the RED LED lights will be lit for the connected port. The device safely removed. If additional flash devices are to be copied, the new devices can be added without waiting for all the others to completely finish.
-
Page 16: Chapter 4: Device Menu Overview
Chapter 4: Device Menu Overview This system comes with many features that can be accessed/adjusted by various functions and settings within the operation menu. Please see the detailed descriptions below: 1. Copy This process will copy the flash device (ex. USB, SD, CF, etc), which is inserted into the Source Port, onto one or multiple target Flash Devices simultaneously. - Page 17 7. Setup 1) Language This setting will allow you to choose the display language of the system. 2) Read Error Skip* This setting will allow for the change to the number of times the system will skip ahead when it encounters a reading error, while reading the original flash device (ex.
- Page 18 8. Utilities 1) Device Info This function will show information regarding the flash device connected to the system. 2) System Info This function will show the system’s hardware & software information. 3) Measure Speed This function will scan any inserted flash device(s) (ex. USB, SD, CF, etc) in any socket.
- Page 19 9. Manage Accounts This menu will allow the Administrator to perform the following user administrative tasks. This feature is disabled by default. Prior to activating this feature, the duplicator recognizes all users as the only activated user defined as the administrator. The pre- defined password for this menu is “0000”.
-
Page 20: Appendix A: Troubleshooting
Appendix A: Troubleshooting Common Concerns No display on the LCD or the unit does not operate when the power is on. Check the power cable connection and that the environment for the power outlet is normal. Make sure the power voltage on the duplicator matches the voltage of the power outlet. ... -
Page 21: Error Codes
Error Codes Typically, the system will show an error message and error code if a problem occurs. Please reference the below diagram for a description of the error codes and the recommended solution: Error Error Description & Recommended Solutions Code Message Description: The Copy process failed due to reading error of source flash device. - Page 22 Error Error Description & Recommended Solutions Code Message Description: The password entered is not correct Wrong Possible Solution: Password! Please confirm the correct password was typed or try a different password. Description: An incorrect password was entered 3 times consecutively Login Possible Solution: Failed...
-
Page 23: Appendix B: Safety & Regulatory Information
Appendix B: Safety & Regulatory information Safety Introduction Notices and Safety Please read the following instructions carefully before operating the machine and refer to them as needed to ensure the continued safe operation of the machine. This product and supplies have been designed and tested to meet strict safety requirements. - Page 24 Safety Information Operational Safety Information This equipment and supplies have been designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards. To ensure the continued safe operation of the equipment, follow these safety guidelines at all times: Do These Always follow all warnings and instructions that are marked on or supplied with the...
- Page 25 Electrical Safety Information 1. The power receptacle for the machine must meet the requirements stated on the data plate on the rear of the machine. If there is uncertainty that the electrical supply meets the requirements, please consult the local power company or an electrician for advice.
- Page 26 Emergency Power Off If any of the following conditions occur, turn off the machine immediately and disconnect the power cable(s) from the electrical outlet(s). Contact an authorized Service Representative to correct the problem: The equipment emits unusual odors or makes unusual noises. The power cable is damaged or frayed.
