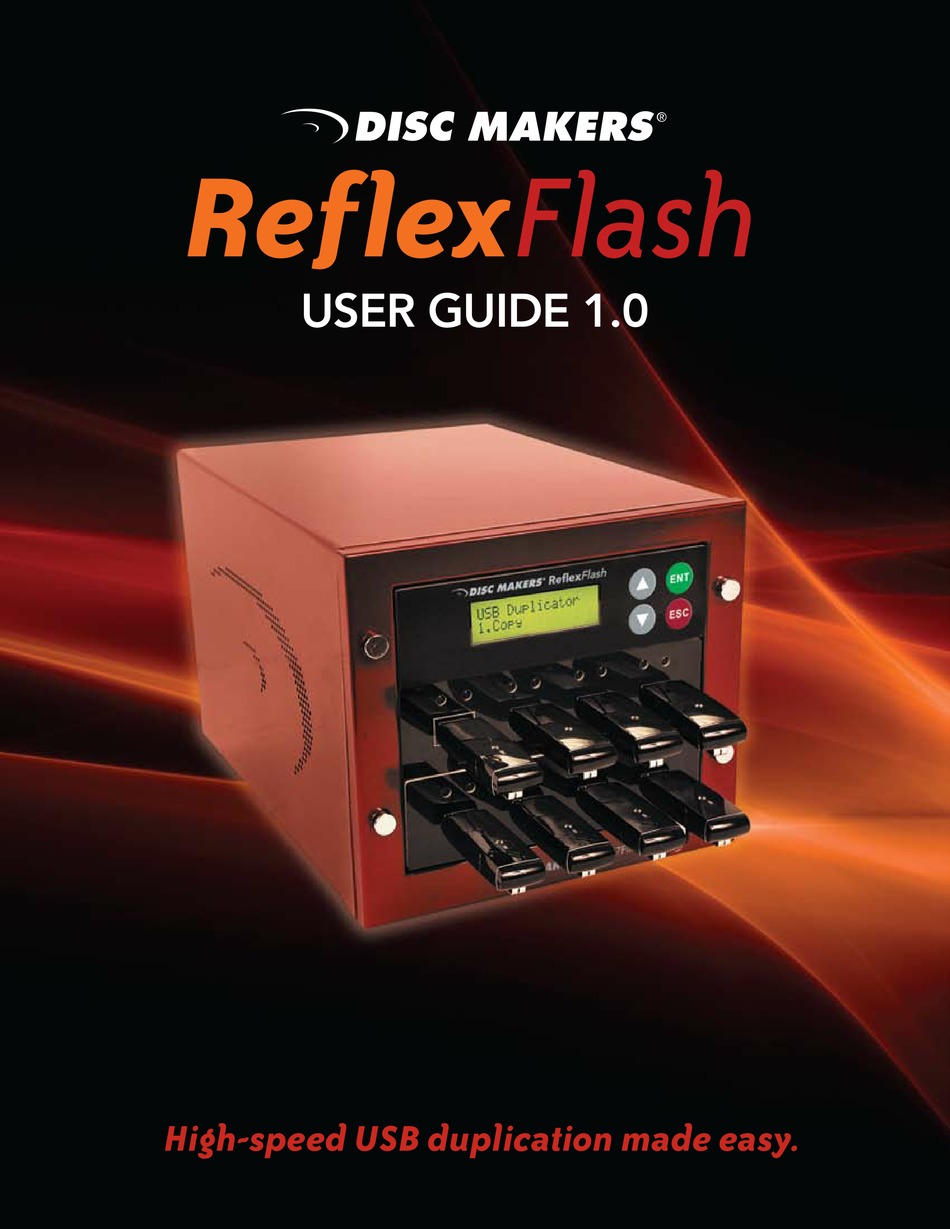

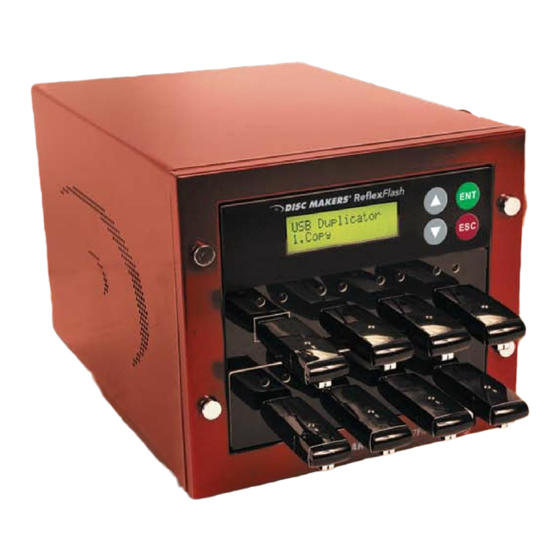

  • Page 1 ReflexFlash USER GUIDE 1.0 High-speed USB duplication made easy.

  • Page 2: Table Of Contents

    Table of Contents I. Introduction ………………………………….……….…... p. 2 II. System Memory Specification ………………………………….………... p. 2 III. Operating Environment ………………………………….……………….. p. 2 IV. Menu Overview ………………………………….………………………… p. 3 V. Functions ………………………………….………………………………... p. 4 Synchronous v. Asynchronous ………………………………….……….…... p. 4 Synchronous Mode ………………………………….……………………….. p. 4 Asynchronous Mode ………………………………….………………..……..

  • Page 3: Introduction

    ReflexFlash Introduction The ReflexFlash line of USB duplicators conveniently copy portable USB storage drives without a computer. Thanks to their advanced asynchronous duplication, each channel can independently load, unload, and copy, so there’s no waiting or interruption. This manual will assist in the basic operation of your Reflex Flash unit, showing you how fast, easy, accurate and intuitive it really is.

  • Page 4: Menu Overview

    ReflexFlash Menu Overview FUncTIon 1. copy 2. compare 3. copy+compare 4. Information 4.1 USB/SD Info 4.2 System Info 5. Utility 5.1 Quick Erase USB/SD 5.2 Full Erase USB/SD 5.3 System Update 6. Setup 6.1 Start-up Menu 6.2 Analyze Source 6.3 Button Beep 6.4 Asyn Hold Time 6.5 Ignore Size 6.6 Asynchronous...

  • Page 5: Functions

    ReflexFlash Functions 1. Copy/Compare/Copy+Compare The Reflex USB Duplicator can autoatically detect and support two different copy modes: Synchronous Asynchronous After the system is powered on and the source drive is inserted, scroll to Copy, Compare, or Copy+Compare and press the ENT key. The system will start to scan the source to check the content size.

  • Page 6: Asynchronous Mode

    ReflexFlash 3. Scroll to select Copy, Compare, or Copy+Compare from menu and press ENT. 4. Insert target drive(s). The LCD will show the number of target drive(s) inserted. USB(963M) 3 ready 5. After the desired number of target drive(s) are inserted, press ENT to execute the function. Or when all writer trays are loaded with target drive(s), the system will automatically start the function.

  • Page 7: Usbinfo

    ReflexFlash 4. The duplicator will immediately begin executing the function as each target drive is inserted. Pass: 0 Working Fail: 0 5. During the process, each slot’s green LED will blink continuously. CAUTION: Do NOT take out the drive while the system is busy. Once the process is completed, the green LED light will become steady.

  • Page 8: Quick Erase And Full Erase

    ReflexFlash Utility 1. Quick Erase (Menu Function 5.1) only erases the index FAT table of each drive, while Full Erase (Menu Function 5.2) will erase the entire content of the USB Drive. Note: Either of the Erase Functions will clear the FAT table in the SD USB Drive, making the device unreadable on computers until it is re-formatted.

  • Page 9: Button Beep

    ReflexFlash 3. Button Beep (Menu Function 6.3) This option will allow the user to turn on or off the audio signal when a button is pressed. Press the UP and DOWN buttons to switch between ON and OFF. Press ENT to select and exit.
  • Page 10 ReflexFlash Example: If a source device has a bigger capacity than target devices: 1. Set the tolerance % higher or set to “Don’t care” (no limit). 2. Data stored on flash devices such as USB cards and USB drives are located randomly instead of sequentially.

  • Page 11: Asynchronous

    ReflexFlash Illustration 3 For source device with FAT16 or FAT32 file system whose content is located content size is bigger than the capacity of the target drive(s) : Source 6. Asynchronous (Menu Function 6.6) User may select to turn on or off the Asynchronous copy mode. If set to off, all copy process will be completed in Synchronous copy mode.
  • Page 12 ReflexFlash • Do NOT remove any drive that has blinking green light When a drive is in a process, the green LED light located above the writer tray will be flashing. Never remove any drive with blinking green LED light. This may very likely damage the drive itself, cause data loss, or damage the system hardware circuit. • Do noT use USB converters with USB duplicators USB converters allow compatibility among different types of flash cards such as CompactFlash, MemoryStick, and so on.
  • Page 13 ReflexFlash 5. Red LED light turns on a. Press UP and DOWN buttons to check each drive for error messages. b. If error message “Not FAT format” is displayed, the file system on the source drive is not of the FAT format. Exit current job and select the “Analyze Source” function from the menu and set it to OFF.
