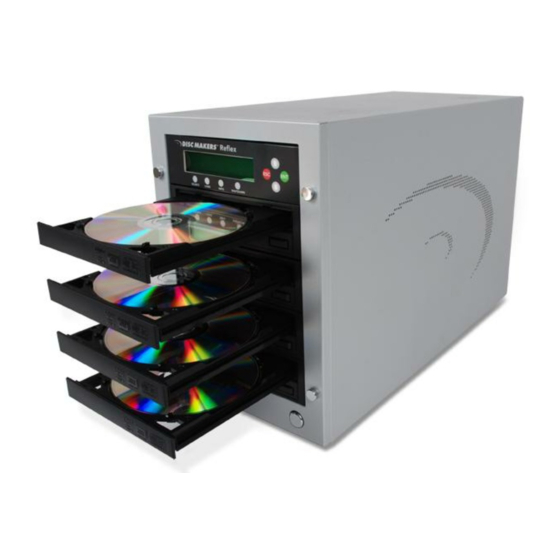

Disc Makers Reflex User Manual

Hide thumbs Also See for Reflex:
Table of Contents

Advertisement

Quick Links

t

Table of Contents

Welcome
Before you start
VI. Rename Existing HDD Partition Name
VII. Delete HDD Partitions
XIII. Using the USB Option
2. Print
52
9. Autocopy
Load Default Settings
Reflex Duplicator Manual
Page 2
Page 2
Page 4
Page 7
Page 14
Page 17
Page 20
Page 23
Page 26
Page 39
Page 30
Page 40
Page 45
Page 49
Page 51
Page 52
Page 52
Page
Page 52
Page 53
Page 53
Page 55
Page 57
Page 57
Page 60
- 1 -
t
Welcome!
Thank you for buying this Disc Makers duplicator. The Reflex DVD
and CD duplicator will make it easier than ever to duplicate vast
quantities of discs. This manual contains detailed information
about using all the features in your stand-alone Reflex duplicator.
******************************************************
Before you start:
Before you start using this duplicator, please read the following to
ensure proper operation:
1. DVD Duplication Limitations:
This duplicator, it will not copy any DVD that has Copy
Protection encoded inside. DVDs you purchase or rent from a
store will be Copy Protected.
In addition to the copy protection limitation, the duplicator
will only copy a DVD-5 format (4.7GB) disc to DVD-5 format
(4.7GB) recordable DVD media. If your duplicator has double
layer capability, you can copy a DVD-9 format (8.5GB) disc to
DVD-9 format (8.5GB) recordable DVD media. You cannot
duplicate a DVD5 format disc to a DVD9 format recordable
media or vice versa.
2. Temperature Warning:
hours, please leave the duplicator in a warm room with
temperatures at least 65ðF (19ðC) for 4 hours prior to
Reflex Duplicator Manual
- 2 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reflex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Disc Makers Reflex

Summary of Contents for Disc Makers Reflex

  • Page 1: Table Of Contents

    Before you start Page 2 Welcome! Tutorial Guide Thank you for buying this Disc Makers duplicator. The Reflex DVD I. Make Disc-to-Disc Copies Page 4 and CD duplicator will make it easier than ever to duplicate vast II. Make Hard Drive (HDD) to Disc Copies Page 7 quantities of discs.
  • Page 2 Reflex Duplicator Manual Reflex Duplicator Manual powering it on for the first time. Failure to do so may cause irreparable harm and prevent the duplicator from functioning. 3. Maintenance: It is very important to operate and keep the duplicator in a dust free, clean environment since dust is the number 1 killer for CD/DVD recording devices.

  • Page 3: Tutorial Guide

    Reflex Duplicator Manual Reflex Duplicator Manual Drive 1 Port 1.0 Selected! Tutorial Guide: Make Disc-to-Disc Copies 2. Go back to 1.COPY Menu. This process will copy your master disc to several blank discs a. Use UP or DOWN arrow button to navigate to the simultaneously.

  • Page 4: Ii. Make Hard Drive(Hdd)-To-Disc Copies

    Reflex Duplicator Manual Reflex Duplicator Manual If you happen to have any failed discs (bad copy), the failed disc(s) will not be ejected automatically. You need to manually eject them and throw them Once the duplication run is completed, the successful copies will away if they are write once recordable disc(s).
  • Page 5 Reflex Duplicator Manual Reflex Duplicator Manual The number of partitions is determined by dividing your Hard b. Scroll up to this screen: Driveís total capacity by 1GB for CD format, 5GB for DVD-5 format or 9GB for DVD-9 format (Double Layer) and subtracting one partition for system use.
  • Page 6 Reflex Duplicator Manual Reflex Duplicator Manual b. Press ENT and select the partition you want to burn. If the WAITING FOR BLANKS screen is displayed for more than 2 minutes, please check your Blank Discs for quality. Choose Partition: [Name] Data d.
  • Page 7 Reflex Duplicator Manual Reflex Duplicator Manual Once the duplication run is completed, the good copies If you happen to have any failed discs (bad copy), will be ejected and you shall see the following screen: the failed disc(s) will not be ejected automatically.

  • Page 8: Select The Duplication Speed

    Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide: DISCMAKERS 1.12 III. Select the Duplication Speed 5. Setup This process will allow you to adjust the duplication speed Press “ENT“ and the first option will be: subject to your various needs.

  • Page 9: Select The Master Reading Source

    Reflex Duplicator Manual Reflex Duplicator Manual To ensure the duplication quality, for certain models, you are not allowed to adjust the duplication speed for DVD to DVD to greater than 6x duplication speed. To achieve Tutorial Guide: maximum duplication speed, you need to perform duplication tasks from the Hard Drive.
  • Page 10 Reflex Duplicator Manual Reflex Duplicator Manual When you turn on your duplicator, after it has booted up, you should see the following signifying your duplicator is ready. Then you will be directed back to the menu: Disc Makers 1.12 1. COPY DISCMAKERS 1.12...

  • Page 11: Load Master Disc Onto The Hard Drive

    Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide: Load Partition [ Load Master Disc onto the Hard Drive Load->New Partition In order to copy from the Hard Drive, you are required to load your master disc onto a hard drive partition.
  • Page 12 Reflex Duplicator Manual Reflex Duplicator Manual Make sure the cursor is located at the first position: Loading ... 420M Press “DOWN“ button consecutively until “F“ is displayed. *The “12%” indicates the percentage of data has Press “ENT“ button once to move the cursor to the been loaded to the Hard Drive.
  • Page 13 Reflex Duplicator Manual Reflex Duplicator Manual until you reached desired location: Image 3.Rename Partition Enter HDD Image Name [FUN2 ] OK 3. Press “ENT“ to enter Rename Partition Menu and you i. Press “DOWN“ button consecutively until “2“ is shall see the following: displayed.
  • Page 14 Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide: 4. Use UP or DOWN arrow button to find the desired partition and then press “ENT“ to submit your VII. Delete Existing Hard Drive Partition Permanently selection and you shall see the following:...

  • Page 15: Change Setup Settings

    Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide: Tutorial Guide Setup VIII. Change the SETUP settings 10. Auto Start Most of the internal settings and information is stored inside the SETUP menu. To explore and modify them is simple. Below is an example to modify the “Auto Start“ setting.

  • Page 16: Audio Cd Editing

    Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide: Going to the “Edit Audio Track“ menu Audio CD Editing Use the UP or DOWN arrow button to navigate to the following screen and press “ENT“. This process will guide you to perform the Audio Track DISCMAKERS 1.12...
  • Page 17 Reflex Duplicator Manual Reflex Duplicator Manual Once you made your selection, you shall see the following: Total 6 Trk 26m:17s Are you done? Preparing... Waiting for Master You can press “ENT“ button to submit your selection. You will see the following: Preparing...
  • Page 18 Reflex Duplicator Manual Reflex Duplicator Manual If you choose to insert another audio CD for more songs, you When the whole process completes, your mixed copy will be need to press DOWN arrow button until you see the following ejected and you shall see the following:...
  • Page 19 Reflex Duplicator Manual Reflex Duplicator Manual Example of Editing Audio Tracks to Hard Drive (For Duplicators with Hard Drive Installed): Total: 1 Trk 4m:49s *Track 2: 4m:49s We need to create a new Audio CD from 2 different Discs. 7. Use the UP or DOWN arrow button until you see “Track 4“ on...
  • Page 20 Reflex Duplicator Manual Reflex Duplicator Manual reader tray. When CD2 is inserted, wait until the following Audio Editing... screen appears. 04:47 Total: 2 Trk 9m:47s 18. Once the loading process to the hard drive is complete, you Track 1: 4m:03s shall see following screen: 13.
  • Page 21 Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide Introduction to Account Management Feature This feature allows you, the administrator, to have the power to: 1. Create user accounts and passwords to prevent unauthorized use of this duplicator. 2. Edit existing user account information, including name and password.

  • Page 22: Account Management Feature

    Reflex Duplicator Manual Reflex Duplicator Manual more information digit of your password and press “ENT“ button to submit 3. Enable the Account Management feature by the current digit and you will be guided to select the next turning ON the Password on Boot UP setting.
  • Page 23 Reflex Duplicator Manual Reflex Duplicator Manual Each user has their own settings and hard drive partitions. During this process, you will be prompted to enter a new Manage Accounts user name and user password for a new account. 4. Delete User - User name can consist of up to 8 This menu allows you to delete the existing user account.
  • Page 24 Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide Introduction to Duplication Mode To simplify this process for anyone, we introduced a new feature called “Load and Copy“ under the new category In order to achieve 8x or higher duplication performance;...

  • Page 25: 10. Duplication Mode

    Reflex Duplicator Manual Reflex Duplicator Manual new image will override the previous image and all DISCMAKERS 1.12 duplications from the reserve partition will be with 1. Copy the new image. Advantage: Press UP or DOWN Button Consecutively until you see following: Faster duplication in a long run.

  • Page 26: Using Autostart Feature

    Reflex Duplicator Manual Reflex Duplicator Manual Tutorial Guide 4. Use the UP or DOWN arrow button to modify the setting and then press “ENT“ to submit your selection and you XII. Using AUTOSTART shall see the following: This hidden menu feature will be displayed when turned Setup on under “5.

  • Page 27: Menu Overview

    ADVANCED COPY OPTIONS For first time use on Reflex 2 and above Test and Copy - This menu will guide you to perform the simulation of copying process and if everything has passed during 1.

  • Page 28: Image

    Reflex Duplicator Manual Reflex Duplicator Manual that your master disc has a small, insignificant error due to IMAGE physical damages, you can enable the setting to allow the Select Partition - Select a previously stored Hard Drive duplicator to skip any read error* it has encountered.

  • Page 29: Utilities

    Reflex Duplicator Manual Reflex Duplicator Manual Counter - This option will allow you to enable/disable Device Info - By entering this menu, you will be able to the Counter feature by turning this feature ON or OFF. see the information for devices built inside your...

  • Page 30: Shutdown

    Reflex Duplicator Manual Reflex Duplicator Manual 6.9 Erase - This menu will guide you to erase your Copy completed but the copies are not readable / rewriteable discs in the WRITER Tray. There are two executable? options to erase your rewriteable discs: Full Erase: It will Use “compare“...
  • Page 31 Reflex Duplicator Manual Reflex Duplicator Manual duplicator. 11. How do I reset my duplicator back to default? Reset back to default. ( Troubleshoot #11 ) Contact our tech support. Use UP or DOWN arrow button to navigate to the following screen.
