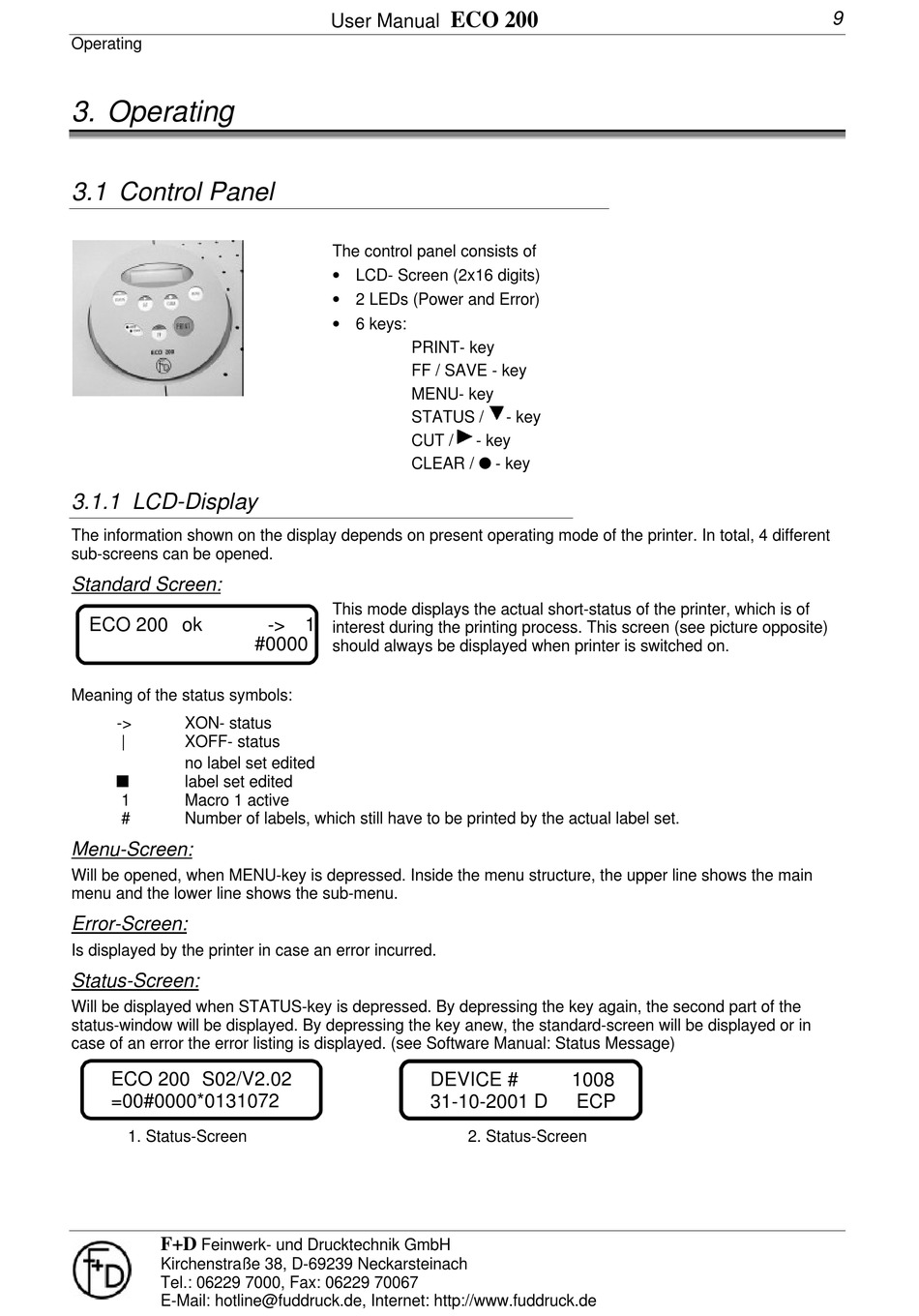

3. Operating

3.1 Control Panel

3.1.1 LCD-Display

The information shown on the display depends on present operating mode of the printer. In total, 4 different
sub-screens can be opened.
Standard Screen:
ECO 200 ok
Meaning of the status symbols:
-> XON- status
| XOFF- status
no label set edited
n
label set edited
1 Macro 1 active
# Number of labels, which still have to be printed by the actual label set.
Menu-Screen:
Will be opened, when MENU-key is depressed. Inside the menu structure, the upper line shows the main
menu and the lower line shows the sub-menu.
Error-Screen:
Is displayed by the printer in case an error incurred.
Status-Screen:
Will be displayed when STATUS-key is depressed. By depressing the key again, the second part of the
status-window will be displayed. By depressing the key anew, the standard-screen will be displayed or in
case of an error the error listing is displayed. (see Software Manual: Status Message)
