Initial Start Up

2.5 Insertion of Paper and Transfer Ribbon

Insertion of Paper
The label printer is suited to print onto thermal paper. Normal paper, plastic foil and metal foil can only be
printed by using the option transfer device. These materials are available on reels or adhesive labels.
1. Open the cover and remove the white paper guide disk.
2. Push reel onto wind off spindle.
3. Push paper guide disk back.
4. Unwind some label material or paper respectively and load the material into the right and left paper guide
while print head device is opened.
5. Adjust paper guide width by the black knurled screw. The label material should not be depressed down
by this action (leave approx. 0.5 mm play).
Notice: It is important that the distance between the paper and the mounting plate on the paper guide is
equal to that on the label reel. The reel can be moved easily. The paper guide disks should only press lightly
against the reels. Uneven wound or misaligned label reels lead to printing errors and paper jam.
The maximum diameter of the paper reels on the internal rewinder lies at 90 mm.

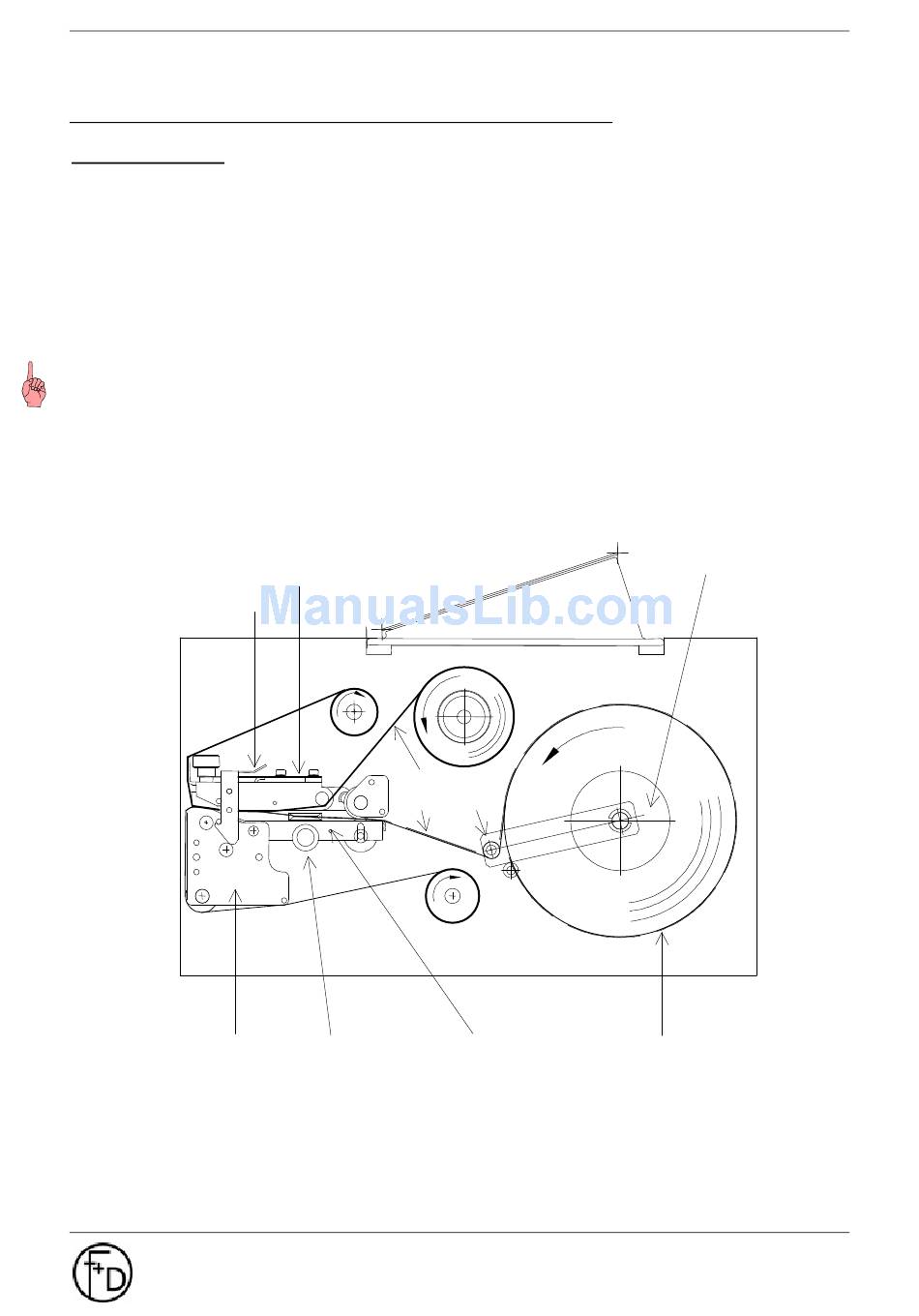

6. Hinge print head device down and secure.
Lock
Printer Device Lower
F+D
Feinwerk- und Drucktechnik GmbH
Kirchenstraße 38, D-69239 Neckarsteinach
Tel.: 06229 7000, Fax: 06229 70067
E-Mail: hotline@fuddruck.de, Internet: http://www.fuddruck.de
User Manual
Printer Device Upper
*Rewinder Device for
Transfer Ribbon
Colour Layer
Label
Knurl Screw
ECO 200
Tensioner
* Rewinder Device for
Label Base Material
Paper Guide
Paper Guide Disk
* Optional
Label Reel
