Swivelling The Operating Module; Height Adjustment Of The Operating Module - Meyra 2.322 Operating Manual

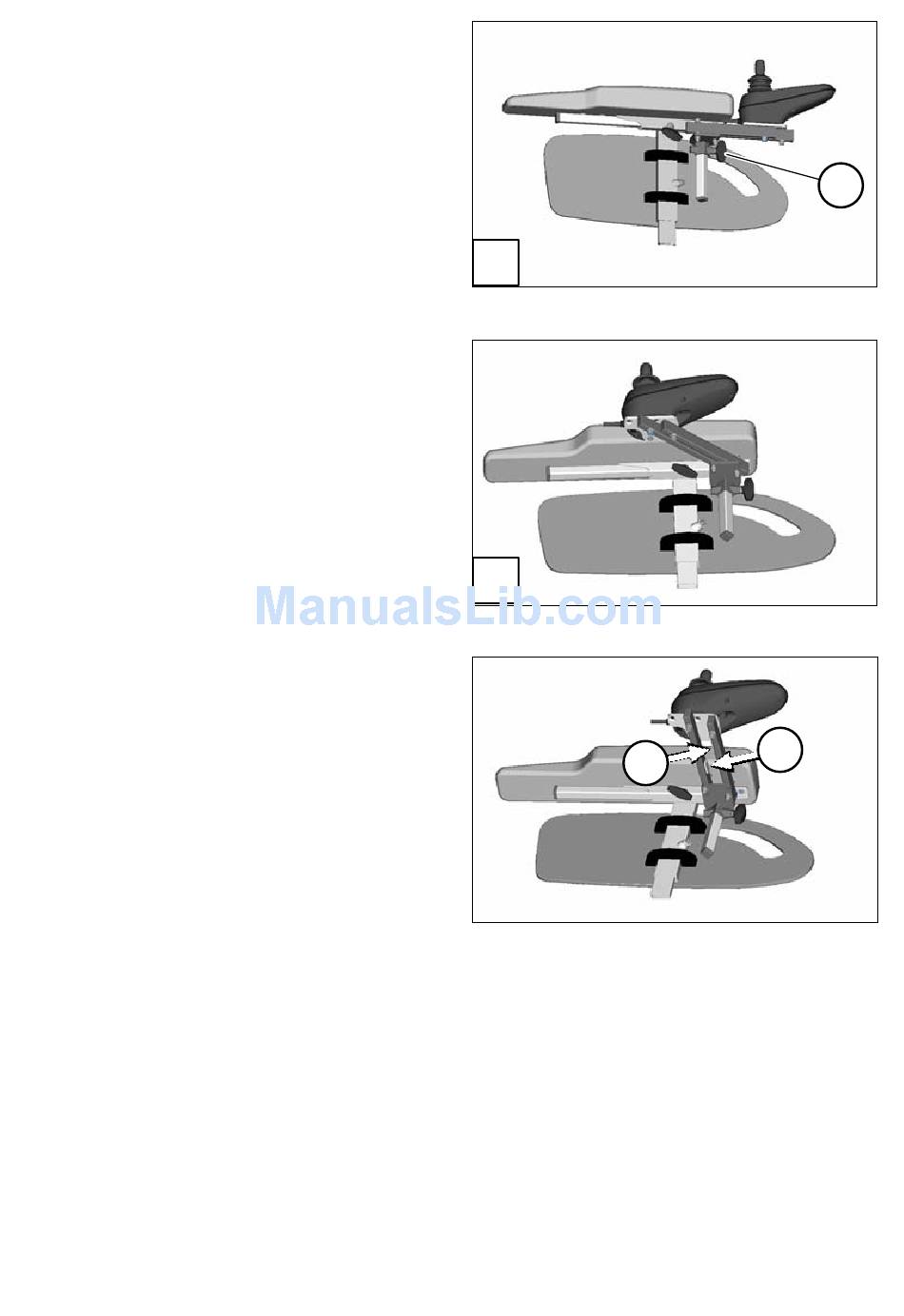

Swivelling.the.operating.module
With the optional swivel away operat-
ing module adapter [1] the operating
module can be swivelled back to the
side (2) so that it is located parallel to
the arm support. This makes it possi-
ble, for example:
– to drive closer to a table,
– remove the operating module
more easily.
For regular drive mode the operating
module can be swivelled back toward
the front until it engages back into
the magnetic lock [1].
☞ Note:
☞
The power of the magnets (3) can
be reduced, for example with tape
on top of the magnets, for easier
swivelling of the operating mod-
ule.
☞
Should the operating module be
positioned too close to the arm
support, move it forward before
swivelling.
. Attention:
!
Do not grab into the area of the
cross brace. – Danger of jamming!
Height.adjustment.of.the.operat-
ing.module
Loosen the clamping screw (4) to ad-
just the height of the operating mod-
ule.
. Attention:
!
After the adjustment retighten the
clamping screw.
18
1
2
3
4
3
