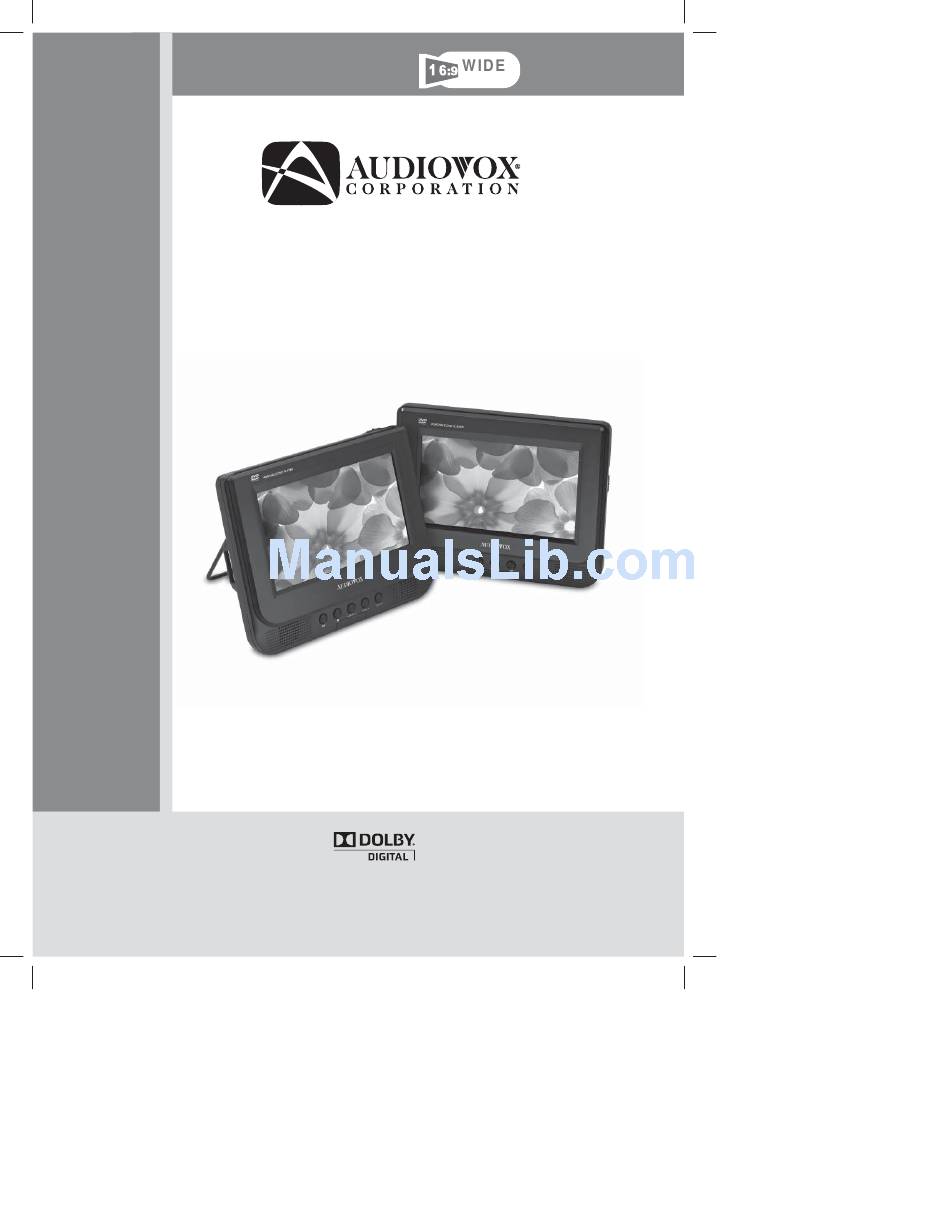

  • Page 1 SCREEN D7121ESK Portable DVD Player With Two 7” Monitors Owner’s Manual...

  • Page 2: Warnings And Cautions

    WARNINGS AND CAUTIONS Notice This Product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
  • Page 3 WARNINGS AND CAUTIONS Placement • To prevent fi re or electric shock, do not expose this appliance to rain or moisture. • Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. •...
  • Page 4 WARNINGS AND CAUTIONS Headphones • Excessive sound pressure from headphones can cause hearing loss. • Connect earphones or headphones to the headphone jack with the volume set low and increase it if required. When earphones or headphones are connected, no sound will be emitted from the connected speaker system.

  • Page 5: Table Of Contents

    CONTENTS Warnings and Cautions ........................2 Contents ............................5 Introduction ............................6 Vehicle Installation ..........................7 Charging the Battery.........................8 Controls and Indicators........................9 Remote Control Operation......................11 Video Connections .........................15 System Setup ..........................16 Playback ............................25 Specifi cations ..........................28 Troubleshooting ..........................29 Owner’s Notes ..........................30...

  • Page 6: Introduction

    INTRODUCTION Thank you for selecting the D7121ESK Portable DVD Player. The main unit features include a 7” Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD Player. The external unit features include a 7” Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor.

  • Page 7: Vehicle Installation

    VEHICLE INSTALLATION To install the units to the back seat of a car: 1. Clamp front bracket (A) and rear bracket (B) around the headrest posts. 2. Secure the brackets in place with four Phillips head screws (C). 3. Slide the quick disconnect bracket (D) into the rear bracket (B). 4.

  • Page 8: Charging The Battery

    7. Heat is produced during charging. This is normal. 8. Do not subject the battery to strong impacts. 9. Keep the battery away from humidity and excessive heat. 10. The battery is not user serviceable. Please contact Audiovox in the event the battery will not charge.

  • Page 9: Controls And Indicators

    CONTROLS AND INDICATORS Main Unit 1. ON/OFF SWITCH Slide the switch to ON position to turn on the unit. Slide the switch to OFF position to switch off the unit. 2. SPEAKER OUTPUT 3. DISPLAY SCREEN 4. PLAY/PAUSE ( ) BUTTON Press once to pause playback, then press again to continue playback.
  • Page 10 CONTROLS AND INDICATORS 1. DISPLAY SCREEN 2. SPEAKER OUTPUT External Unit 3. VOL- BUTTON Press to decrease the volume. 4. VOL+ BUTTON Press to increase the volume. 5. GREEN LED ON/OFF INDICATOR Steadily lit when the unit is on. 6. MENU BUTTON Press this button to acces the on-screen menu.

  • Page 11: Remote Control Operation

    REMOTE CONTROL OPERATION BATTERY INSTALLATION/REPLACEMENT Remove the battery compartment cover according to the diagram on the right. 1. Press the ridged area to the left. 2. At the same time, pull the battery tray out. 3. Remove the old CR2025 battery. Replace it with a new CR2025 lithium battery on the tray with the positive side facing upward.
  • Page 12 REMOTE CONTROL OPERATION 8. SUBTITLE Press repeatedly to switch/show the subtitle(s) or turn off the subtitle function. Note: This function only works with discs encoded with subtitles. 9. PLAY ( Press to start a playback or resume normal playback from fast forward, fast reverse, slow-motion, frame-by-frame playback, etc.
  • Page 13 REMOTE CONTROL OPERATION 14. A-B REPEAT Press to repeat a specifi c section of a disc. Press this button to mark down the starting point (A) and press it again to mark down the ending point (B). The unit will play back this section over and over again.
  • Page 14 REMOTE CONTROL OPERATION 19. NEXT ( ) / DOWN Press to skip to the next chapter/track. Press to navigate in the down direction when menu is displayed on the screen. 20. STOP ( Press once to pause a playback, then press Play ( ) to continue playback.

  • Page 15: Video Connections

    VIDEO CONNECTIONS Connecting the Two Screens 1. Connect the supplied AV cable to the AV OUT jack on the main unit and to the AV IN jack on the external unit. 2. Connect the power cable to the DC OUT jack on the main unit and to the DC IN jack on the external unit.

  • Page 16: System Setup

    SYSTEM SETUP The System Setup menu allows you to personalize the DVD Player settings to your preference. Once the initial settings are set, they are retained in the DVD player until modifi ed. MENU OPERATION 1. Press the SETUP button on the remote control to show the Setup Menu. 2.
  • Page 17 SYSTEM SETUP ANGLE MARK This function is available when a disc is encoded with multiple camera angles. Options: Enables the Angle Mark function. When a disc with multiple camera angles is playing, an angle mark will display on the screen. You can then view the video of different camera angles by pressing the ANGLE button on the remote control.
  • Page 18 SYSTEM SETUP AUDIO SETUP PAGE There is one item in the AUDIO SETUP PAGE - GENERAL AUDIO DOLBY VIDEO PREFERENCE ANALOG AUDIO. -- AUDIO SETUP PAGE -- ANALOG AUDIO GOTO AUDIO SETUP PAGE ANALOG AUDIO DOWNMIX This function only applies to Dolby AC-3 encoded 5.1-channel discs. Options: The 5.1-channel audio is mixed into the left channel and right channel.
  • Page 19 SYSTEM SETUP DOLBY SETUP PAGE There are two items in the DOLBY SETUP PAGE - GENERAL AUDIO DOLBY VIDEO PREFERENCE DUAL MONO and DYNAMIC. -- DOLBY DIGITAL SETUP -- DUAL MONO DYNAMIC GOTO DOLBY DIGITAL SETUP DOLBY DIGITAL DUAL MONO This function only applies to the Dolby AC-3 encoded 2-channel discs.
  • Page 20 SYSTEM SETUP VIDEO SETUP PAGE There are two items in the VIDEO SETUP PAGE. GENERAL AUDIO DOLBY VIDEO PREFERENCE They are COLOR SETTING and PANEL QUALITY. -- VIDEO SETUP PAGE -- COLOR SETTING PANEL QUALITY GOTO VIDEO SETUP PAGE COLOR SETTING The COLOR SETTING menu is used to set up the picture quality when connected to an external TV set.
  • Page 21 SYSTEM SETUP PREFERENCE PAGE GENERAL AUDIO DOLBY VIDEO PREFERENCE There are eight items in the PREFERENCE PAGE. -- PREFERENCE PAGE -- They are TV TYPE, PBC, AUDIO, SUBTITLE, DISC MENU, PARENTAL, PASSWORD, and DEFAULT. This item is available if there is no disc in the disc tray, the disc tray is open or the disc in the disc tray is stopped.
  • Page 22 SYSTEM SETUP SUBTITLE This item allows a user to select a preferred subtitle language. This function only applies to discs encoded with subtitles. Options: English, French, Spanish, Chinese, Japanese, Korean, Russian, Thai, and Off. You can also change the subtitle language by pressing SUBTITLE on the remote control. Note: If the selected language is not available for the currently playing disc, the disc’s default setting is applied.
  • Page 23 SYSTEM SETUP PASSWORD SETUP PAGE GENERAL AUDIO DOLBY VIDEO PREFERENCE There are two items in the PREFERENCE PAGE. -- PASSWORD SETUP PAGE -- They are PASSWORD MODE and PASSWORD. PASSWORD MODE PASSWORD PASSWORD MODE PASSWORD MODE: You can activate or disable the password function by setting it to ON or OFF.
  • Page 24 SYSTEM SETUP Satellite Unit Setup Menu 1. Press the MENU button on the Satellite Unit. The following menu will appear on the screen: BRIGHTNESS CONTRAST SATURATION SHARPNESS MODE LANGUAGE RESET 2. Press the button to choose an item.   3.

  • Page 25: Playback

    PLAYBACK DVD BASICS To get the optimum use out of the DVD Player, make sure you read this section completely. DVD REGION CODE The DVD player is preset to a region code at the factory depending on where the DVD player is sold.
  • Page 26 PLAYBACK TYPES OF DISCS YOUR DVD PLAYER WILL PLAY Your system will play the following types of discs: • DVD* disc - DVD discs which contain video. • VCD disc - VCD discs which contain video. • Audio disc - Audio CDs contain musical or sound content only. *Note: This system is capable of playing most recordable DVD formats.
  • Page 27 PLAYBACK KODAK PICTURE CD OR JPEG IMAGE CD PLAYBACK 1. Place a Kodak Picture CD or JPEG image CD in the disc tray. The unit will load the disc automatically. 2. Press STOP ( ) to enter the thumbnail mode to preview the pictures. 3.

  • Page 28: Specifi Cations

    SPECIFICATIONS Compatible DISC DVD/VCD/CD Signal System PAL/NTSC Panel Size 7 inch Frequency Response 20 Hz to 20 kHz Video Output 1 Vp-p 75 Ohm unbalanced Audio Output 1.2 V (±0.2 V) RMS/10 kOhm Dynamic Range ≥ 85 dB Laser Semiconductor laser, wavelength: 650 nm/795 nm Power Source 9-12 VDC Power Consumption...

  • Page 29: Troubleshooting

    TROUBLESHOOTING If your DVD player does not appear to be functioning correctly, check the items below before contacting Audiovox technical support. Symptom Cause(s) Remedy No Power • The adapter is not • Connect the adapter to the connected to the unit...

  • Page 30: Owner's Notes

    OWNER’S NOTES...
  • Page 31 90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option) without charge for parts and repair labor.
