- Page 1 SCREEN D7021 Portable DVD Player Owner’s Manual For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd. Wilmington, NC 28411 (800) 507-0482 / (910) 686-4281...
-
Page 2: Warnings And Cautions
WARNINGS AND CAUTIONS Notice This Product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. -
Page 3: Warnings And Cautions
WARNINGS AND CAUTIONS Placement • To prevent fi re or electric shock, do not expose this appliance to rain or moisture. • Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. •... - Page 4 WARNINGS AND CAUTIONS Headphones • Excessive sound pressure from headphones can cause hearing loss. • Connect earphones or headphones to the headphone jack with the volume set low and increase it if required. When earphones or headphones are connected, no sound will be emitted from the built-in speaker system.
-
Page 5: Table Of Contents
CONTENTS Warnings and Cautions ........................2 Contents ............................5 Introduction ............................6 Charging the Battery.........................7 Controls and Indicators........................8 Remote Control Operation......................10 Connecting to a TV .........................14 System Setup ..........................15 Playback ............................24 Specifi cations ..........................29 Troubleshooting ..........................28 Owner’s Notes ..........................30 For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd. -
Page 6: Contents

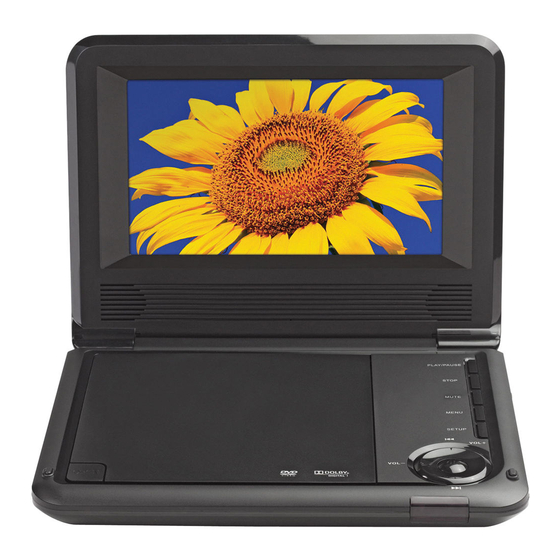

INTRODUCTION Thank you for selecting the D7021 Portable DVD Player. The player features include a 7” Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD Player. The player incorporates the latest state-of-the-art electronics and is designed for use in hotels, offi... -
Page 7: Charging The Battery
8. Do not subject the battery to strong impacts. 9. Keep the battery away from humidity and excessive heat. 10. The battery is not user serviceable. Please contact Audiovox in the event the battery will not charge. For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) -
Page 8: Controls And Indicators
CONTROLS AND INDICATORS 1. SPEAKER OUTPUT 2. 7” LCD DISPLAY SCREEN 3. BATTERY CHARGE INDICATOR Steadily lit red when the battery is charging. Front View Steadily lit green when the battery is charged. 4. INFRARED REMOTE CONTROL SENSOR Point the remote control to the infrared remote control sensor. - Page 9 CONTROLS AND INDICATORS 18. 3.5mm HEADPHONE JACK Side View Note: When headphones are connected, no sound will be emitted from the speakers. 19. AV OUT JACK Connect the AV Cable to the AV OUT jack on the main unit and to the AV IN jack on the external unit.
-
Page 10: Remote Control Operation
REMOTE CONTROL OPERATION Battery Installation/Replacement Remove the battery compartment cover according to the diagram below. 1. Press the ridged area to the left. 2. At the same time, pull the battery tray out. 3. Remove the old CR2025 battery. Replace it with a new CR2025 lithium battery on the tray with the positive side facing upward. -
Page 11: Remote Control Operation
REMOTE CONTROL OPERATION 8. SUBTITLE Press repeatedly to switch/show the subtitle(s) or turn off the subtitle function. Note: This function only works with discs encoded with subtitles. 9. PLAY ( Press to start a playback or resume normal playback from fast forward, fast reverse, slow-motion, frame-by-frame playback, etc. - Page 12 REMOTE CONTROL OPERATION 14. A-B REPEAT Press to repeat a specifi c section of a disc. Press this button to mark down the starting point (A) and press it again to mark down the ending point (B). The unit will play back this section over and over again.
- Page 13 REMOTE CONTROL OPERATION 19. NEXT ( ) / DOWN Press to skip to the next chapter/track. Press to navigate in the down direction when menu is displayed on the screen. 20. STOP ( Press once to pause a playback, then press Play ( ) to continue playback.
-
Page 14: Connecting To A Tv
CONNECTING TO A TV The player has an AV OUT jack. You can connect it to a TV for viewing. 1. Use an AV output cable (not supplied) to connect the AV OUT jack on the main unit to the video input terminal and L/R channel audio input terminals of a TV. -
Page 15: System Setup
SYSTEM SETUP The System Setup menu allows you to personalize the DVD Player settings to your preference. Once the initial settings are set, they are retained in the DVD player until modifi ed. Menu Operation 1. Press the SETUP button on the remote control to show the Setup Menu. 2. -
Page 16: System Setup
SYSTEM SETUP ANGLE MARK This item is available when a disc is encoded with multiple camera angles. Options: Enables the Angle Mark function. When a disc with multiple camera angles is playing, an angle mark will display on the screen. You can then view the video of different camera angles by pressing the ANGLE button on the remote control. -
Page 17: Audio Setup Page
SYSTEM SETUP Audio Setup Page GENERAL AUDIO DOLBY VIDEO Preference There is one item in the AUDIO SETUP PAGE - -- AUDIO SETUP PAGE -- ANALOG AUDIO. ANALOG AUDIO GOTO AUDIO SETUP PAGE ANALOG AUDIO DOWNMIX This item only applies to Dolby AC-3 encoded 5.1-channel discs. Options: The 5.1-channel audio is mixed into the left channel and right channel. - Page 18 SYSTEM SETUP Dolby Setup Page GENERAL AUDIO DOLBY VIDEO Preference There are two items in the DOLBY SETUP PAGE -- DOLBY DIGITAL SETUP -- - DUAL MONO and DYNAMIC. DUAL MONO DYNAMIC GOTO DOLBY DIGITAL SETUP DOLBY DIGITAL DUAL MONO This item only applies to the Dolby AC-3 encoded 2-channel discs.
-
Page 19: Video Setup Page
SYSTEM SETUP Video Setup Page GENERAL AUDIO DOLBY VIDEO Preference There are two items in the VIDEO SETUP PAGE. -- VIDEO SETUP PAGE -- They are COLOR SETTING and PANEL QUALITY. COLOR SETTING PANEL QUALITY GOTO VIDEO SETUP PAGE COLOR SETTING The COLOR SETTING menu is used to adjust the picture quality when the player is connected to an external TV set. -
Page 20: Preference Page
SYSTEM SETUP Preference Page GENERAL AUDIO DOLBY VIDEO Preference There are eight items in the PREFERENCE -- PREFERENCE PAGE -- PAGE. They are TV TYPE, PBC, AUDIO, SUBTITLE, DISC MENU, PARENTAL, TV TYPE PASSWORD, and DEFAULT. AUDIO SUBTITLE This page is available if the disc tray is empty, DISC MENU PARENTAL the disc tray is open or the disc in the disc tray is... - Page 21 SYSTEM SETUP SUBTITLE MENU This item allows you to select a preferred subtitle language. This function only applies to discs encoded with subtitles. Options: English, French, Spanish, Chinese, Japanese, Korean, Russian, Thai, and Off. You can also change the subtitle language by pressing SUBTITLE on the remote control. Note: If the selected language is not available for the currently playing disc, the disc’s default setting is applied.
- Page 22 SYSTEM SETUP PASSWORD This item allows you to access the Password Setup Page. Press ENTER to access the Password Setup Page. DEFAULT This item allows you to restore all the default settings, except the settings in the Password Setup Page and the PARENTAL setting. Options: RESET: Restores the default settings.
-
Page 23: Password Setup Page
SYSTEM SETUP Password Setup Page GENERAL AUDIO DOLBY VIDEO Preference There are two items in the PASSWORD PAGE. They are PASSWORD MODE and PASSWORD. -- PASSWORD SETUP PAGE -- PASSWORD MODE PASSWORD PASSWORD MODE PASSWORD MODE You can activate or disable the password function by setting it to ON or OFF. You must key in the correct password and press ENTER to confi... -
Page 24: Playback
PLAYBACK DVD Playback To get the optimum use out of the DVD Player, make sure you read this section completely. DVD Region Code The DVD player is preset to a region code at the factory depending on where the DVD player is sold. - Page 25 PLAYBACK Types of Discs Your DVD Player Will Play Your system will play the following types of discs: • DVD* disc - DVD discs which contain video. • VCD disc - VCD discs which contain video. • Audio disc - Audio CDs contain musical or sound content only. *Note: This system is capable of playing most recordable DVD formats.
- Page 26 PLAYBACK Kodak Picture CD or JPEG Image CD Playback 1. Place a Kodak Picture CD or JPEG image CD in the disc tray. The player will load the disc automatically. 2. Press STOP ( ) on the remote control to enter the thumbnail mode to preview the pictures. 3.
-
Page 27: Specifi Cations
SPECIFICATIONS Compatible DISC DVD/VCD/CD Signal System PAL/NTSC Panel Size 7 inch Frequency Response 20 Hz to 20 kHz Video Output 1 Vp-p 75 Ohm unbalanced Audio Output 1.2 V (±0.2 V) RMS/10 kOhm Dynamic Range ≥ 85 dB Laser Semiconductor laser, wavelength: 650 nm/795 nm Power Source 9-12 VDC Power Consumption... -
Page 28: Troubleshooting
TROUBLESHOOTING If your DVD player does not appear to be functioning correctly, check the items below before contacting Audiovox technical support. Symptom Cause(s) Remedy No Power • The adapter is not • Connect the adapter to the DC connected to the unit... -
Page 29: Troubleshooting
TROUBLESHOOTING Symptom Cause(s) Remedy The remote control does • There is no battery in the • Install a CR2025 lithium battery not function. remote control. in the remote control. • The battery is discharged. • Replace the battery with a new one. -
Page 30: Owner's Notes
OWNER’S NOTES For Sales Information Please Contact RoadTrucker Inc (www.RoadTrucker.com) 8312 Sidbury Rd. Wilmington, NC 28411 (800) 507-0482 / (910) 686-4281... -
Page 31: Wilmington, Nc
90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s option) without charge for parts and repair labor.
