  • Page 1 7" LCD MO NIT OR D1718ES PORTABLE DVD PLAYER WITH TWO 7" MONITORS...
  • Page 2 NOTICE: This Product incorporates copyright protection technology that is pro- tected by method claims of certain patents and other intellectual prop- erty rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless authorized by Macrovision Corporation.

  • Page 3: Installation

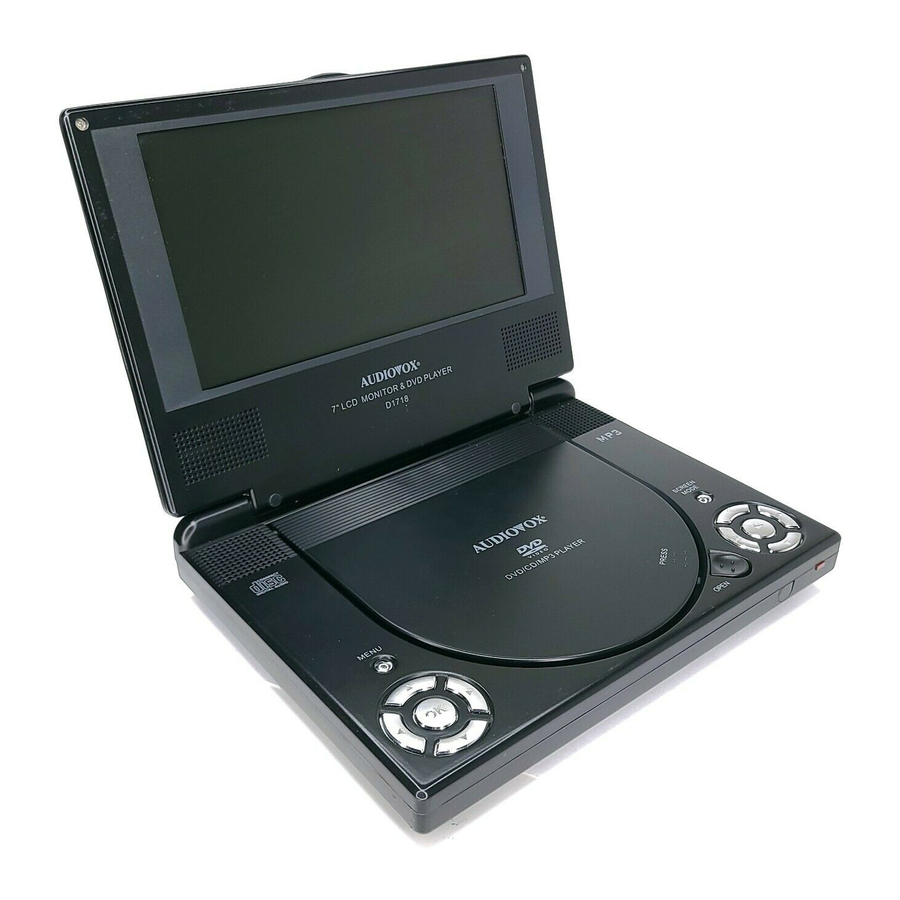

    A. Introduction Thank you for choosing the D1718ES portable DVD player. The main features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in hotels, offices or your home.
  • Page 4 7. Regional Coding Both the DVD player and disc are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region...
  • Page 5 C. Contents 1. 1 x 7’’ LCD Monitor & DVD Player Combo 2. 1 x 7” LCD Monitor 3. 2 x AC to DC Adapter 4. 1 x Remote Control with battery (CR2025) 5. 1 x Instruction Manual 6. 1 x AV Adapter Cable (One to Three Female) 7.
  • Page 6 Main Unit Monitor Main Unit Monitor Right Side Figure 2...
  • Page 7 Vehicle Seat Back Figure 3 1). Unfold the carry bag, and place the DVD player on the bag beneath the elastic straps. Ensure that the unit’s corners are secured by the elastic straps. 2). Secure the upper portion of the carry bag to headrest support bars using the headrest strap.
  • Page 8 Installing the monitor Option 1 Vehicle Headrest (Refer to Figure 4) Figure 4 Slide the Monitor into the pouch and attach the Velcro straps to se- cure the Monitor in the pouch. Loop the strap of the pouch around the headrest and pull the end of the strap while holding the buckle to secure the pouch to the headrest Option 2 Flat Surface (Refer to Figure 5)
  • Page 9 F. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 6) Figure 6 1) Menu Button 2) Up/Down/Left/Right/OK Buttons 3) Open Button 4) Previous/Next/Pause/ Stop/Play Buttons 5) Screen Mode Button 6) Remote Sensor 7) Power Indicator 8) Power On/Off Switch 9) Brightness Up/Down Control 10) Volume Up/Down Control 11) Headphone Jack 1...
  • Page 10 2. Monitor View (Refer to Figure 7) Figure 7 1). Volume Control 2). Reverse Switch 3). Headphone Jack 4). DC 9-12V Input Jack 5). AV In Jack 6). Power Off/On Switch 7). Brightness Control NOTE: Slide the Reverse Switch to rotate the picture 180 degrees.
  • Page 11 19) Play/Pause Button G. Loading and Playing a Disc a. After connecting power to the unit, power on the DVD player with the power switch. The power indicator will light. b. Open the disc tray by pressing OPEN , and place a disc into the tray with the label side facing up.
  • Page 12 H. SETUP Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit will resume it’s last playback mode. Main Setup Menu Screen 1) Press ‘SETUP’, the ‘General Setup Page’ will display on screen. a).Select ‘TV Display’...
  • Page 13 Select ‘Screen Saver’ using the UP/DOWN button. Screen Saver Screen *On: Enable screen saver *Off: Disable screen saver (off) *NOTE: The DVD player will enter the Screen Saver mode after ap- proximately five minutes if the same image remains on the screen.
  • Page 14 d). Select ‘Last Memory’ by UP/DOWN button. Last Memory Screen *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc. 2) Select ‘Video Quality Setup’ by using the LEFT/RIGHT button, press ENTER to enter the video quality setup page.
  • Page 15 b).Select ‘Contrast’ by using the UP or DOWN button, then press ENTER. You can adjust the Contrast by pressing the LEFT or RIGHT button. Contrast Screen To exit ‘Contrast’ Setting, press ENTER again to return the main Menu. c).Select ‘Hue’ by using the UP or DOWN button, then press ENTER. You can adjust the Hue by pressing the LEFT or RIGHT button.
  • Page 16 3).Select ’Password’ using the LEFT or RIGHT button, then press the ENTER button to enter ’Password Setup Page’. Password Change Menu Screen Press ENTER to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Con- firmed New Password.
  • Page 17 b. Select ‘Subtitle’ the using the UP or DOWN button, then press RIGHT to enter the submenu. Select the desired subtitle language or Sub- title Off using the UP or DOWN button, then press ENTER to con- firm the setting. Press LEFT to return. Preference Subtitle Language Screen c.
  • Page 18 d. Select ‘Parental’ using the UP or DOWN button, then press RIGHT to enter the submenu. Parental Preference Screen Select the parental level you desired using the UP or DOWN button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (Adult).
  • Page 19 1. Basic Operation POWER Turn the unit on/off Remove/load the disc OPEN PLAY Start Play/Execute item or setting SLOW Play at 1/2, 1/4, 1/8 or 1/16 times speed PAUSE Still Picture STOP (1 time) Stop at the present playing point / (2 times) Stop playing Go to the next chapter, track or scene dur- SKIP+(NEXT)
  • Page 20 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 21 c. Press ‘DISPLAY’ a 3rd time to display the Elapsed Time for the chapter. The heading will disappear automatically in 3 seconds. Chapter Elapsed Time Screen Display d. Press ‘DISPLAY’ a 4th time to display the Remaining Time for the chapter.
  • Page 22 Angle Screen Display 3. SUBTITLE During disc playback press ‘SUBTITLE’ to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are mul- tiple languages press ‘SUBTITLE’ again to select another subtitle lan- guage.
  • Page 23 4. AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total num- ber of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automati- cally if the ‘AUDIO’...
  • Page 24 6. A-B REPEAT a. During playback press first time ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’second time to set the Ending Point B and the layer will repeatedly play the part between Point A and Point B. A-B Repeat Ending Point Screen Display c.
  • Page 25 7. REPEAT a. During playback press ‘REPEAT’ once to repeatedly play the cur- rent chapter. Chapter Repeat Screen Display b. During playback press ‘REPEAT’ again to repeatedly play the current title. Title Repeat Screen Display c. During playback press ‘REPEAT’ a 3rd time to repeat all Chapters and Titles.

  • Page 26: Playing Audio Cds

    d. Press “REPEAT” a 4th time, to resume normal play. Repeat Off Screen Display 4. PLAYING AUDIO CDS When playing an audio CD press the DISPLAY button on the remote to view time information. The options below show you what information is available using this function.

  • Page 27: Using The Repeat Feature

    c. Press ‘DISPLAY’ a 2nd time and Total Elasped appears along with the current track playing and the total time that the CD has been playing. Total Elapsed Screen Display d. Press ‘DISPLAY’ a 3rd time and Total Remain appears along with the current track playing and the amount of time remained on the CD.

  • Page 28: Playing Mp3 Discs

    Repeat One (repeat playback of a song) Repeat Folder (repeat playback of a specific folder) Insert a MP3 CD, the DVD player will initialize the disc and the directory (folder) will be shown on the TV screen. MP3 MENU Screen Display When a MP3 disc is inserted into the unit, the menu screen appears automatically.
  • Page 29 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode is Folder. Pressing REPEAT consecutively changes the repeat options: •...

  • Page 30: Playing Jpeg File

    6. PLAYING JPEG FILE 1) Load the JPEG Disc into tray. 2) Select JPEG file by pressing “UP/DOWN” button. 3) You can preview the JPEG file by pressing “Play” or “ENTER”. 4) Pressing the “Left Key“ will rotate the picture 90 degrees counterclocckwise.

  • Page 31: Connecting To Other Equipment

    k. Press “display” 11th time, “COMPRESS TO CENTER H” will display on the screen, the picture will refresh from top and bot- tom to center. l. Press “display” 12th time, “COMPRESS TO CENTER V” will display on the screen, the picture will refresh from right and left to center.
  • Page 32 2. AV In Connecting to a Game or Camcorder. a. Slide the AV In/Out switch to In. b. Connect one end of the supplied audio/video adapter cable (1/8”) plug into the unit’s DVD’s AV jack, and connect the other end to the AUDIO OUTPUT jacks on your Game or Camcorder through an optional RCA cable (white = left channel, red = right channel, Yellow = Video).
  • Page 33 “AV IN” mode. Unplug the game controller when using the A/V input jack. 4. Connecting Optional Headphones Plug the optional headphones into either Headphone 1 jack or Headphone 2 jack on the right side of the D1718ES. Plugging into Headphone jack 1 will disable the internal speakers.
  • Page 34 8. SPECIFICATIONS Compatible DISC: DVD/CD/MP3 Signal system: NTSC Panel size: 7 inch DVD video format: Horizontal 720 pixel, vertical 480 pixel (NTSC) Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V /10kOhm Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9V...

  • Page 35: Rechargeable Battery Installation And Use

    Please fully charge the battery prior to first use. NOTE: When the DVD player is used with the battery as a power source, ensure that the battery has been charged for at least eight hours prior to connecting it to the DVD player.
  • Page 36 The lock position is indicated by a click. The unit will fit snugly to the player. 5. Push the battery plug into the DVD player DC input jack. Removing the Battery Pack: 1. First, make sure the player is off and the battery plug has been discon- nected.

  • Page 37: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within ninety (90) days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 38 © 2007 Audiovox Electronics Corporation 128-8026...
