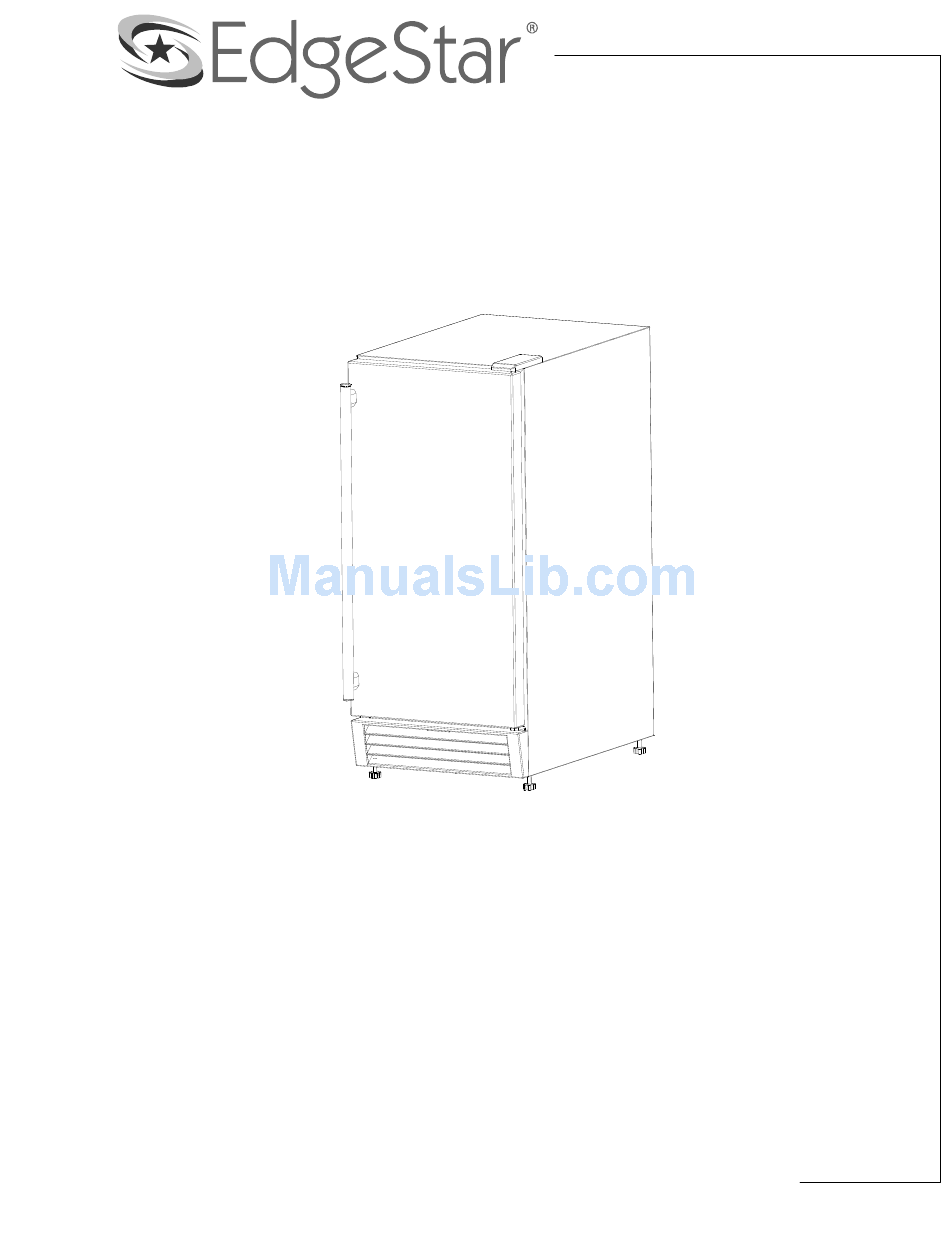

Page 1: Outdoor Refrigerator
Outdoor Refrigerator OR320SS Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com... -
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar outdoor refrigerator and/or injury to the user. This outdoor refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
SPECIFICATIONS ....................11 EDGESTAR LIMITED WARRANTY ..............12 First Time Operating Instructions Before use, make sure all packaging labels and materials are all removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar outdoor refrigerator. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Front View Tip: Gather the model and serial number from the product label and write them down before installing the outdoor refrigerator. EdgeStar Outdoor refrigerator... -
Page 6: Installing The Outdoor Refrigerator
Installing the outdoor refrigerator The outdoor refrigerator should be installed in accordance with local electrical code requirements. The refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the outdoor refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 7: Installation Clearance Requirements
If needed, you can adjust the height of the outdoor refrigerator by rotating the feet. See the “Leveling the Outdoor refrigerator” section. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. EdgeStar Outdoor refrigerator... -
Page 8: Electrical Requirements
Electrical Requirements • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. -
Page 9: Reversing The Door Swing
4. Align the door on the bottom hinge and replace the top hinge and top hinge mat. 5. Replace top hinge cover and bottom louver. Push the plug buttons into the spare screw holes on the top of the cabinet. EdgeStar Outdoor refrigerator... -
Page 10: Operation
OPERATION Installation Check List before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the outdoor refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the outdoor refrigerator? 3. -
Page 11: Normal Sounds
• Never unplug the unit by removing the door to prevent a child from being trapped inside the pulling on the plug. cooler! EdgeStar Outdoor refrigerator... -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning Unplug your Beverage Center. Clean the outside with a cloth dampened in mild soapy water. Dry thoroughly with a soft cloth. To clean the door gasket, use only mild soapy water. -
Page 13: Troubleshooting Continued
The door gasket is dirty. Clean the door gasket. The door will not shut properly. The door gasket is not Make sure the door gasket is properly installed. installed correctly. The shelves are incorrectly Correctly install the shelves. installed. EdgeStar Outdoor refrigerator... -
Page 14: Specifications
Specifications Description of product Built-in Outdoor refrigerator Model OR320SS Voltage/Frequency AC 115V~60Hz Amperage 2.0A Color Stainless Cabinet; Stainless Door Refrigerant R134a, 2.47 oz. High/Low side pressure 190 / 90 psig Compartment Temperature 35 - 50ºF Range Ambient Temperature Range 25 - 100ºF Dimensions 33.5”... -
Page 15: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 16 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2010 Living Direct, Inc. All rights reserved.
