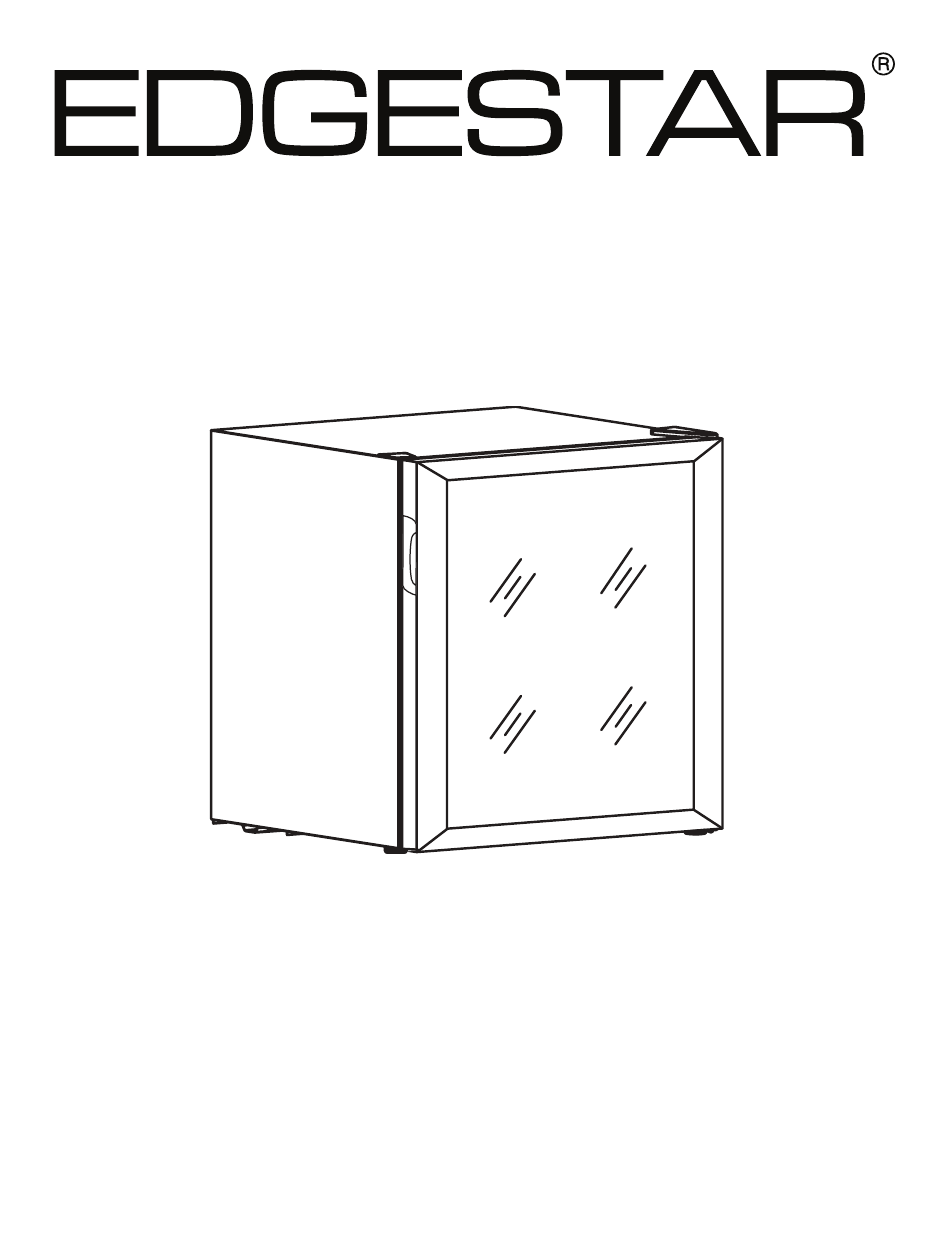

- Page 1 Beverage Refrigerator BWC71SS Owner’s Manual www.edgestar.com V2.1-08112021...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar beverage refrigerator and / or injury to the user. This beverage refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the ratings label located on the rear panel of the unit for electrical and other technical data related to this unit. - Page 3 Important Safety Information General Safety • To prevent injuries, use at least two people to move and install the beverage refrigerator. • Install the beverage refrigerator in a well-ventilated area where the ambient temperature is above 50° F and below 90° F. •...
-
Page 4: Table Of Contents
Installation Checklist before Operation..............11 Using the Temperature Control Panel ..............11 Normal Sounds......................12 Defrosting ........................ 13 Preparing the Beverage Refrigerator for Storage............ 13 Cleaning and Maintenance ..................... 13 Troubleshooting ......................14 Specifications ......................... 16 EdgeStar Limited Warranty .................... 17... -
Page 5: First-Time Operating Instructions
Thank you for purchasing this EdgeStar beverage refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification Note: Gather the model and serial number from the product label and write them down before installing the beverage refrigerator. Front View: Top Right Hinge Temperature Control Panel Internal fan Shelf Stainless Steel Door Leveling Leg Rear View: Product Label Cabinet Power Cord... -
Page 7: Installation
Installation The beverage refrigerator should be installed in accordance with local electrical code requirements. The beverage refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. Before you plug the beverage refrigerator into a power supply, be sure to let it stand upright for at least 24 hours to allow the compressor’s oils to settle. -
Page 8: Clearance Requirements
Clearance Requirements Notes: • Choose a location that has ambient temperatures above 50° F and below 90° F. Operation outside these temperatures may result in lowered efficiency or cause other adverse effects. • This unit MUST be installed in an area protected from the elements, e.g. wind, rain, water spray or drips. -
Page 9: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! • Plug into a grounded 3-prong outlet. • Never remove the grounding prong from the plug. • Never use an adapter to bypass the grounding prong. • DO NOT use an extension cord. • Failure to follow these instructions can result in fire, electrical shock, or death. Before you move your Beverage Refrigerator into its final location, it is important to make sure you have the proper electrical connection: A standard electrical supply (115 V, 60Hz), properly grounded in accordance with the National Electrical... -
Page 10: Reversing The Door Swing
Reversing the Door Swing Warning: Before you begin, unplug the Refrigerator. To Remove the Door: 1. Using a flathead screw driver carefully pry the top hinge cover off. 2. Using a Philips screwdriver, remove the screws and take off the top hinge. Keep the parts together and set them aside. -
Page 11: Operation
Operation Installation Checklist before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the beverage refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the beverage refrigerator? 3. -
Page 12: Normal Sounds
Note: The beverage refrigerator is equipped with a temperature memory function. If power is suddenly lost, the previously set temperature will be saved and the Refrigerator will return to this setting once power is restored. Allow at least 24 hours before storing your beverages to allow the setting temperature to be reached. -
Page 13: Defrosting
Defrosting Note that under most refrigerating settings, the unit will automatically defrost in most ambient conditions. However, on colder settings, some frost may build up. Additionally, the more humid the ambient conditions, the more frost may build up. Keep the door closed as much as possible and avoid opening the door unnecessarily to minimize frost build-up. -
Page 14: Troubleshooting
Troubleshooting Before Calling for Help: If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the problem persists, check the Troubleshooting Guide below and on the following page. The problem may be something that can easily be solved or explained. Symptoms Possible Causes Solutions... - Page 15 Symptoms Possible Causes Solutions The body of the beverage The unit is not grounded Contact your local electrician to test refrigerator is electrified. properly. your electrical grounding system. Frost is forming in the The environment is humid. Manual defrosting is required; unplug beverage refrigerator.
-
Page 16: Specifications
Note: Technical data and performance information are provided for reference only. Specifications are subject to change. Check the rating label on the beverage refrigerator for the most accurate information. Product Type Beverage Refrigerator Model BWC71SS Voltage / Frequency AC 115V~60Hz Amperage 1.3A Color Black Cabinet;... -
Page 17: Edgestar Limited Warranty
WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility. At its option, EdgeStar will repair the product with new or remanufactured parts, or exchange the defective product with a new, refurbished, or remanufactured product. - Page 18 ©2021 EdgeStar...
