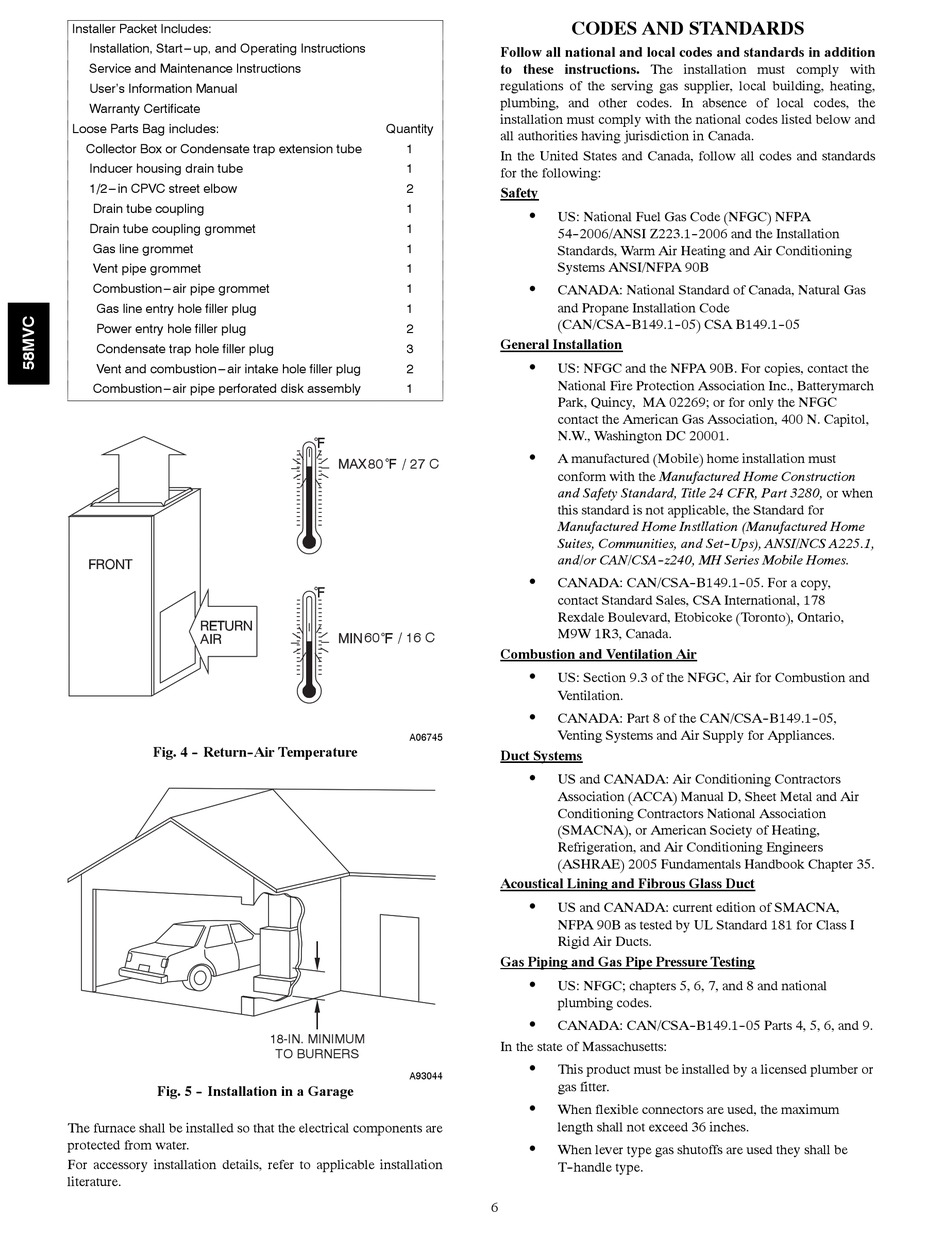

Installer Packet Includes:
Installation, Start--- up, and Operating Instructions
Service and Maintenance Instructions
User's Information Manual
Warranty Certificate
Loose Parts Bag includes:
Collector Box or Condensate trap extension tube
Inducer housing drain tube
1/2--- in CPVC street elbow
Drain tube coupling
Drain tube coupling grommet
Gas line grommet
Vent pipe grommet
Combustion--- air pipe grommet
Gas line entry hole filler plug
Power entry hole filler plug
Condensate trap hole filler plug
Vent and combustion--- air intake hole filler plug
Combustion--- air pipe perforated disk assembly
Fig. 4 - - Return- -Air Temperature
Fig. 5 - - Installation in a Garage
The furnace shall be installed so that the electrical components are
protected from water.
For accessory installation details, refer to applicable installation
literature.
Quantity
1
1
2
1
1
1
1
1
1
2
3
2
1
80 / 27 C
60 / 16 C
A06745
18-IN. MINIMUM
TO BURNERS
A93044

CODES AND STANDARDS

Follow all national and local codes and standards in addition
to these instructions. The installation must comply with
regulations of the serving gas supplier, local building, heating,
plumbing, and other codes. In absence of local codes, the
installation must comply with the national codes listed below and
all authorities having jurisdiction in Canada.
In the United States and Canada, follow all codes and standards
for the following:

Safety

US: National Fuel Gas Code (NFGC) NFPA
S
54- -2006/ANSI Z223.1- -2006 and the Installation
Standards, Warm Air Heating and Air Conditioning
Systems ANSI/NFPA 90B
S CANADA: National Standard of Canada, Natural Gas
and Propane Installation Code
(CAN/CSA- -B149.1- -05) CSA B149.1- -05

General Installation

S US: NFGC and the NFPA 90B. For copies, contact the
National Fire Protection Association Inc., Batterymarch
Park, Quincy, MA 02269; or for only the NFGC
contact the American Gas Association, 400 N. Capitol,
N.W., Washington DC 20001.
S A manufactured (Mobile) home installation must
conform with the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, or when
this standard is not applicable, the Standard for
Manufactured Home Instllation (Manufactured Home
Suites, Communities, and Set- -Ups), ANSI/NCS A225.1,
and/or CAN/CSA- -z240, MH Series Mobile Homes.
S CANADA: CAN/CSA- -B149.1- -05. For a copy,
contact Standard Sales, CSA International, 178
Rexdale Boulevard, Etobicoke (Toronto), Ontario,
M9W 1R3, Canada.

Combustion and Ventilation Air

S US: Section 9.3 of the NFGC, Air for Combustion and
Ventilation.
S CANADA: Part 8 of the CAN/CSA- -B149.1- -05,
Venting Systems and Air Supply for Appliances.
Duct Systems
S US and CANADA: Air Conditioning Contractors
Association (ACCA) Manual D, Sheet Metal and Air
Conditioning Contractors National Association
(SMACNA), or American Society of Heating,
Refrigeration, and Air Conditioning Engineers
(ASHRAE) 2005 Fundamentals Handbook Chapter 35.
Acoustical Lining and Fibrous Glass Duct
S US and CANADA: current edition of SMACNA,
NFPA 90B as tested by UL Standard 181 for Class I
Rigid Air Ducts.
Gas Piping and Gas Pipe Pressure Testing
S US: NFGC; chapters 5, 6, 7, and 8 and national
plumbing codes.
S CANADA: CAN/CSA- -B149.1- -05 Parts 4, 5, 6, and 9.
In the state of Massachusetts:
This product must be installed by a licensed plumber or
S
gas fitter.
S When flexible connectors are used, the maximum
length shall not exceed 36 inches.
S When lever type gas shutoffs are used they shall be
T- -handle type.
6
