Carrier Infinity ICS 58MVC Installation Instructions Manual page 18

ANGLE
IRON OR
EQUIVALENT
(B)
(A) ROD LOCATION
USING DIMPLE
LOCATORS
(SEE DIMENSIONAL
DWG FOR
LOCATIONS)
(A) PREFERRED ROD LOCATION
(B) ALTERNATE ROD LOCATION

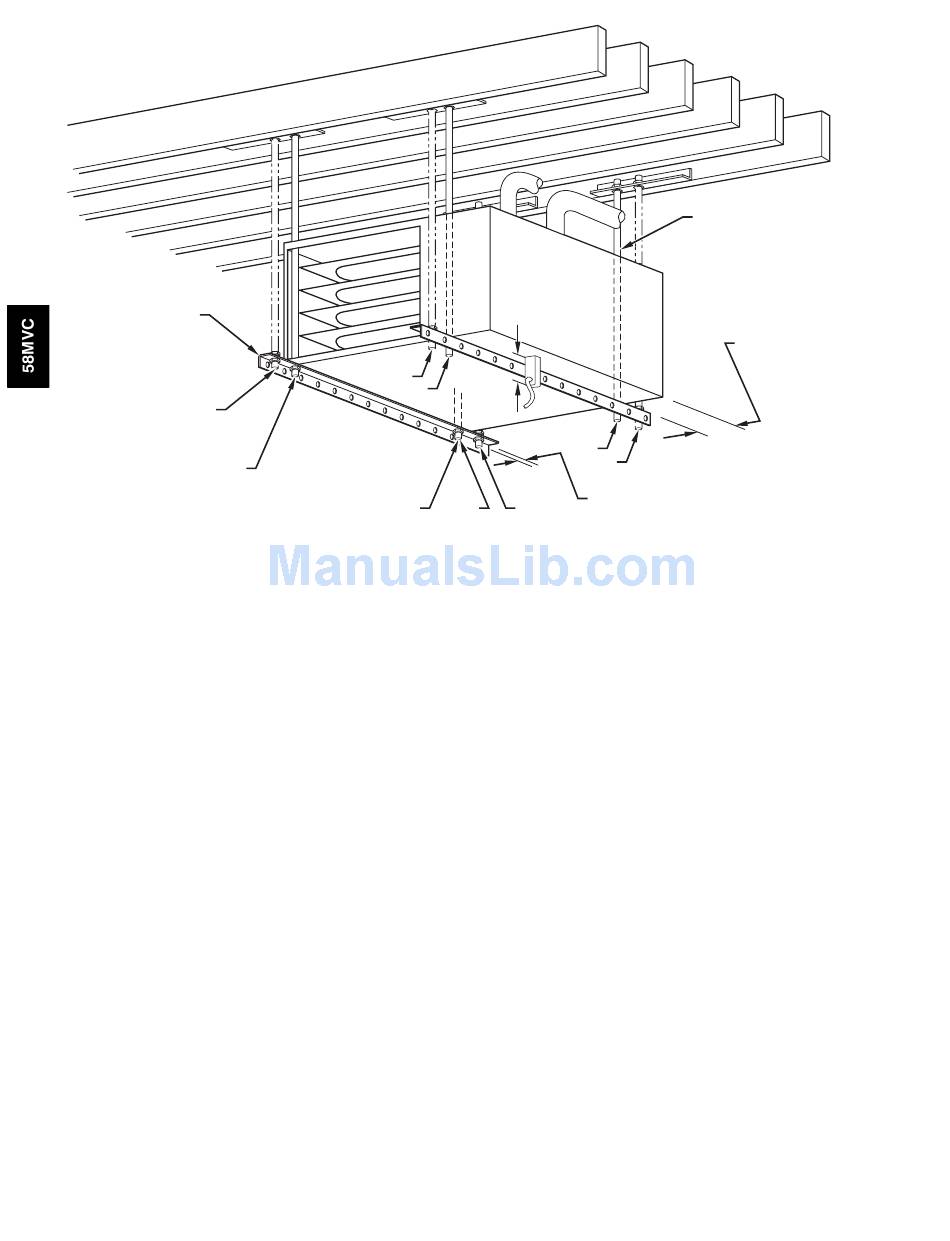

Fig. 23 - - Crawlspace Horizontal Application for Direct Vent/2- -Pipe Installation and for Ventilated Combustion Air Installation
(B)
(A)
3
/ -IN. HEX NUT (A)
8
& WASHER (4)
REQD PER ROD
NOTES:
1. A 1 In. clearance minimum between top of
furnace and combustible material.
2. The entire length of furnace must be
supported when furnace is used in horizontal
position to ensure proper drainage.
18
3
"
3
5 /
4
DRAIN
(A)
(B)
13
/ -IN. MAX
16
(B)
ALTERNATE SUPPORT
LOCATION FROM BACK
/ -IN. ROD
8
ALTERNATE SUPPORT
LOCATION 4-IN. MIN
8-IN. MAX
A93304
