Page 2
Prior to the actual installation of the speakers, it will be necessary to run cables to the speaker location from the amplifier. You will need to run at least 16 AWG cable from the amplifier to the speaker. See your Authorized SpeakerCraft dealer for more detailed information on cable installation.
Page 3
INSTALLATION PREPARATION - NEW CONSTRUCTION When installing the speakers in new construction, please follow these instructions carefully: 1. Determine Placement Determine where in the wall the speakers will be placed using the recommendations under SPEAKER PLACEMENT. Make sure that there are no obstructions where you plan to install the speaker. Pay careful attention to the section on avoiding obstruc- tions and installation considerations.
Page 4
Before paint- ing the grilles, remove the material under grille. Place this material back in place once the grille has been painted. SpeakerCraft recommends only light spray painting using 5 parts thinning agent to 1 part paint.
Page 5

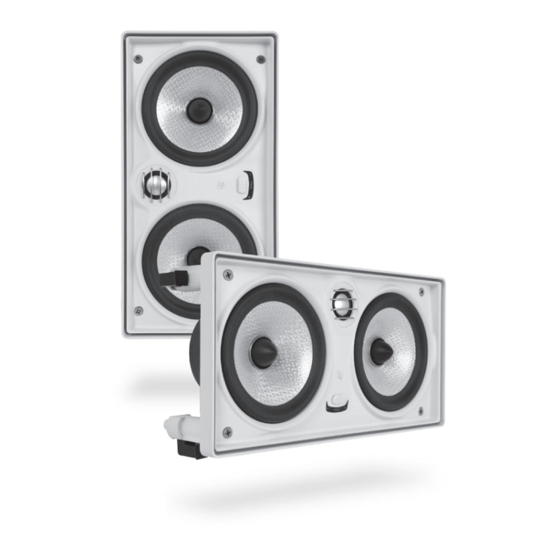

SPECIFICATIONS NEAT! LCR Three NEAT! LCR Five Speaker Type: 2-Way In-Wall 2-Way In-Wall Tweeter: Pivoting ⁄ " Aluminum/Magnesium Pivoting ⁄ " Aluminum Dome Dome Woofers: Two 4 ⁄ " Kevlar Cones Two 4 ⁄ " Aluminum Cones Impedance: 8 ohms...
Page 6
SpeakerCraft or the SpeakerCraft Authorized Dealer will, at its option, repair or replace this product at no additional charge, except as set forth below. If this model is no longer available and can not be repaired effectively, SpeakerCraft, at its sole option, may replace the unit with a current model of equal or greater value. In some cases where a new model is substituted, a modification to the mounting surface may be required.
