SpeakerCraft AIM7 Five Owner's Manual

OWNER'S MANUAL
AIM7 Two / AIM7 Three / AIM7 Four / AIM7 Five

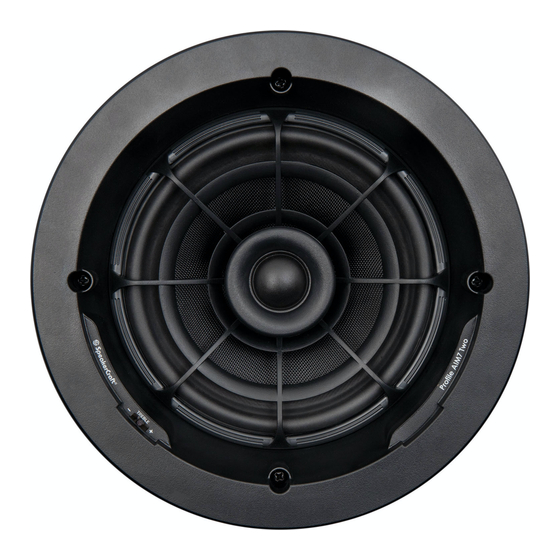

Fully Pivoting High Fidelity In-Ceiling
Congratulations on purchasing SpeakerCraft' s AIM7 Series of architectural loudspeakers. The AIM7 Series
features fully pivoting woofers and independently pivoting tweeters, allowing the entire speaker to be
aimed toward the listener.

SPEAKER PLACEMENT

When following the below recommendations, please
keep in mind that placement is always in the ceiling.
AIM7 speakers can be used as a pair for stereo listening,
or for all five channels of a home theater system: front
left and right, center, and rear left and right.
SpeakerCraft recommends the use of a qualified custom
installation specialist when installing your AIM7 speakers.
If you need assistance in locating an installer, please
contact SpeakerCraft at 1-800-448-0976.
1. Determine Your Primary Listening Area
The area where you will most likely be sitting
when listening to your speakers is your primary
listening area.
2. Placement of Stereo Pair / Front
Channels for Home Theater

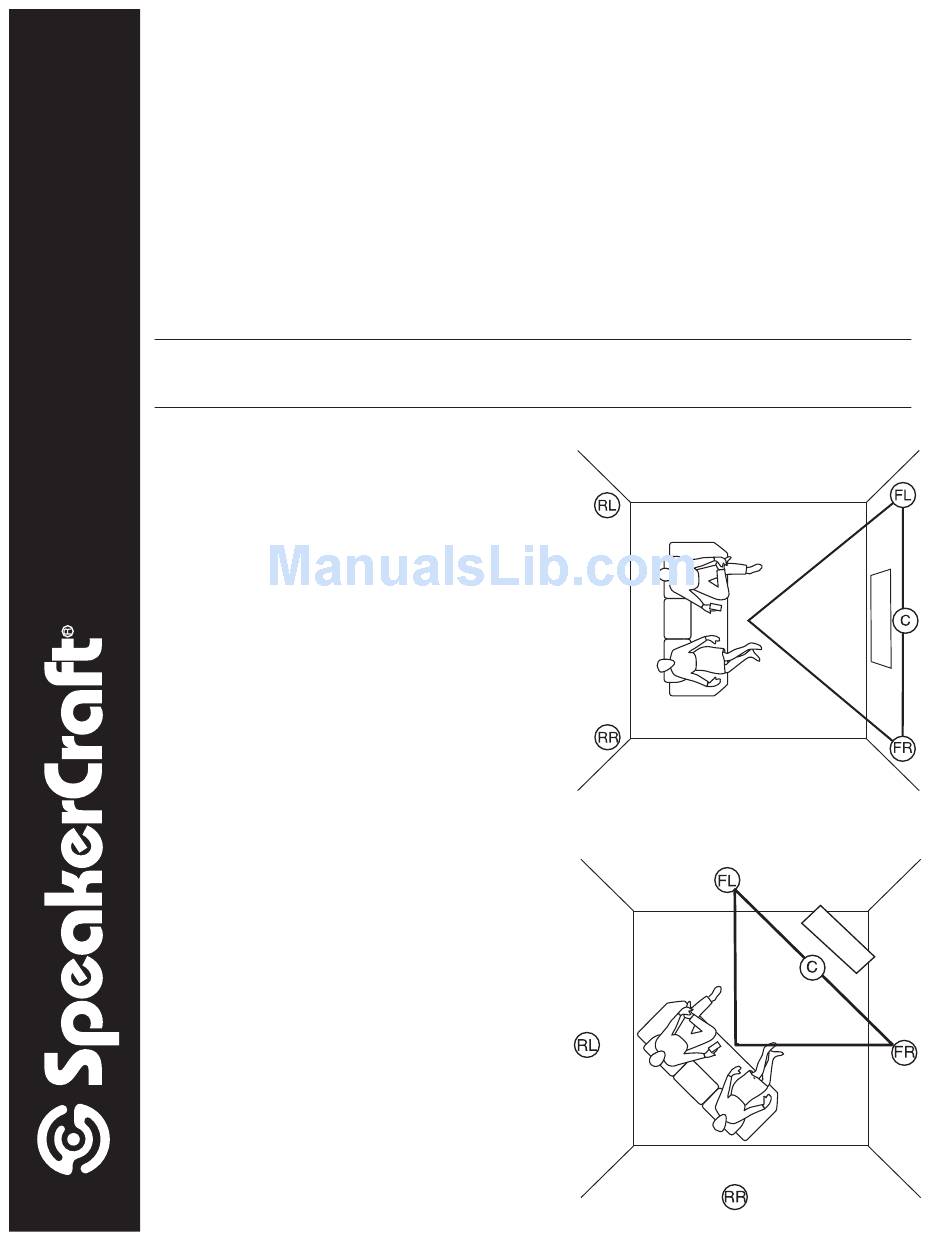

Consider how far apart the speakers should be. To
do this, think of your listening area as one tip of a
triangle with each leg of the triangle being equal.
See speakers FL (front left) and FR (front right) in
Figure 1. Place the speakers as close as possible to
the two points they represent on the triangle.
If the speakers are to be part of a home theater
speaker system, they should be placed as close as
possible to the area above the screen. However, in
some cases it may be better to place the speakers
farther away from the screen in order to maximize
speaker separation. An example of a case when this
would be desirable is when the television is posi-
tioned directly in a corner (See Figure 2).
AIM7 SERIES
Loudspeaker
Figure 1
Figure 2
