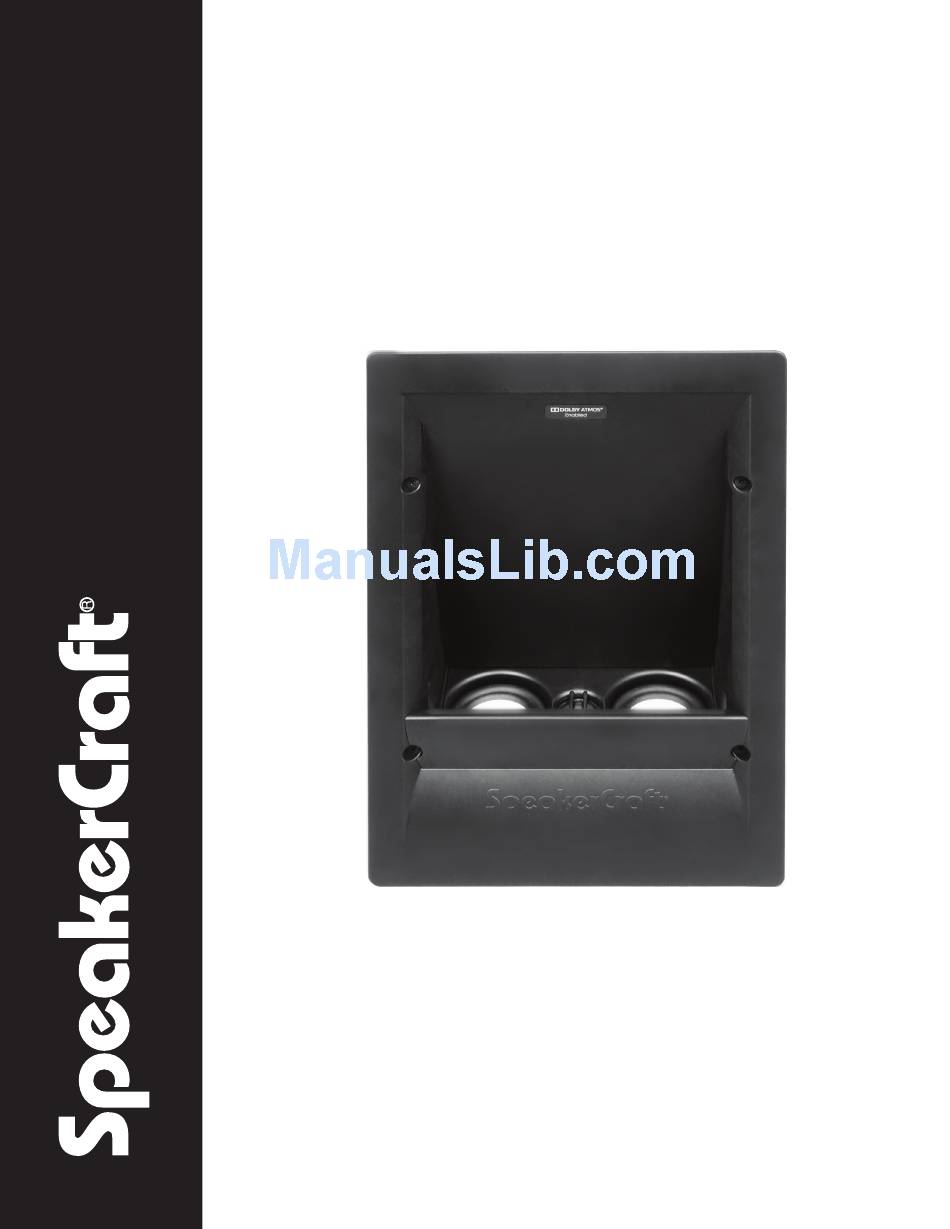

- Page 1 O W N E R ’ S M A N U A L A T X 1 0 0 A I M S e r i e s 2 D o l b y A t m o s E n a b l e d ®...

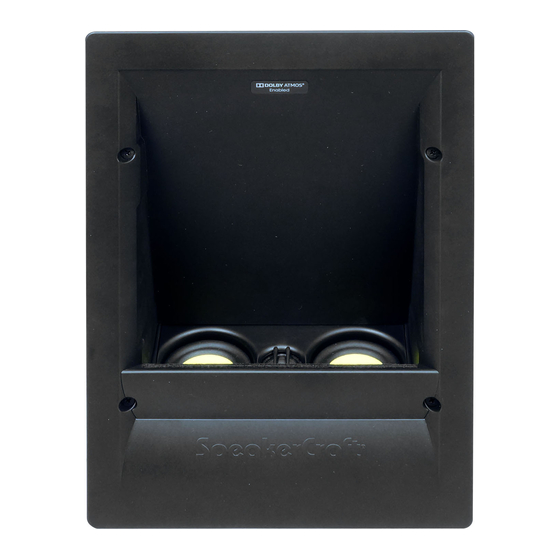

- Page 2 The AIM Series 2 Dolby Atmos Enabled in-wall speakers were designed and engineered for use with SpeakerCraft’s AIM Series 2 LCR5 and Profile AIM LCR5 family of speakers. While the ATX100 can be used in conjunction with most other in-wall speakers from SpeakerCraft and other manufacturers. The ATX100 speaker is sized to match the width of all AIM Series 2 LCR5 and Profile AIM LCR5 family speakers.
-
Page 3: Speaker Placement
You will get the best results from the ATX100 if the room has a flat ceiling from 7 ½ feet to 12 feet high. Dolby Atmos is designed to work with ceilings as high as 14 feet. In rooms with vaulted ceilings, or ceilings higher than 14 feet, the results with Atmos will be less predictable. -
Page 4: Installation Considerations
Mark the hole. A template for setting the hole is provided in the box. NOTE: If you will be installing the ATX100 speaker in conjunction with any of the SpeakerCraft AIM Series 2 LCR5 or SpeakerCraft Profile AIM LCR5 family of in-wall full range speakers, use the correct template for that speaker combination. -
Page 5: Speaker Installation
Attach the speaker cable (observing the proper polarity with your amplifier, + to + and – to –). Make sure the left front height channel of the amplifier is connected to the left front ATX100 height speaker, and the right front height channel is connected to the right front ATX100 height speaker. -
Page 6: Specifications
AT X 100 A I M SERIES 2 D OLBY AT MOS ENABLED IN-WALL HEIGHT SPEAKER ® S PEC IFICAT IONS 2-Way Speaker Compliment in MTM (Mid-Tweeter-Mid) Speaker Type Alignment ¾” Custom Titanium Dome Tweeter with High Energy Tweeter Neodymium Magnet Structure Dual, 2 ½”... - Page 7 This warranty is not transferable to subsequent purchasers of the product. To obtain warranty service, contact the authorized dealer where you purchased your product or take the unit to the nearest authorized SpeakerCraft dealer (with proof of purchase – claims made without proof of purchase will be denied) who will test the product and if necessary, forward it to Core Brands for service.
- Page 8 SpeakerCraft, 1800 S McDowell Blvd, Petaluma, CA 94954 SpeakerCraft.com - Designed and Engineered in the USA. Made in China. © 2016 Core Brands, LLC. All Rights Reserved. SpeakerCraft ® is a registered trademark of Core Brands, LLC. Dolby and Dolby Atmos are registered trademarks of Dolby Laboratories. © 2016 Dolby Laboratories, Inc. All rights reserved.
