HV6002/ 6003
OPERATING INSTRUCTION MANUAL

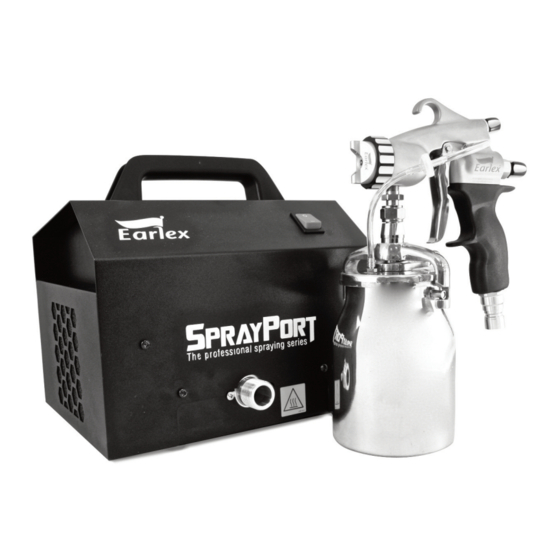

Thank you for purchasing the SprayPort from Earlex Professional 6000 Series.
This highly versatile HVLP System (high volume of air, low pressure painting) can be
used for a wide variety of applications.
BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
Please retain for future reference.
To register your product visit www.sprayport.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Earlex SprayPort Professional 6000 Series
Summary of Contents for Earlex SprayPort Professional 6000 Series

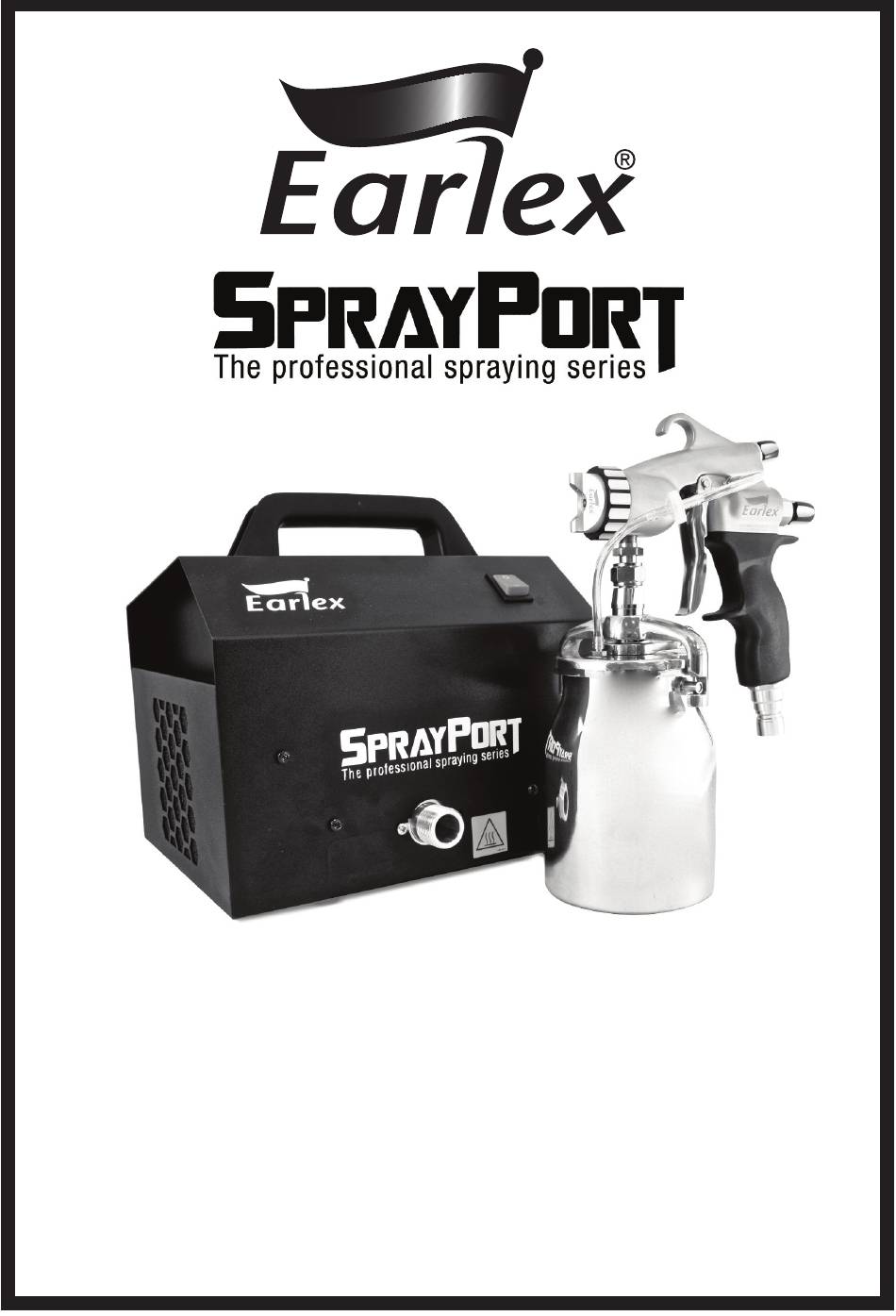

- Page 1 ® HV6002/ 6003 OPERATING INSTRUCTION MANUAL Thank you for purchasing the SprayPort from Earlex Professional 6000 Series. This highly versatile HVLP System (high volume of air, low pressure painting) can be used for a wide variety of applications. BEFORE USE – PLEASE READ THE MANUAL AND SAFETY INSTRUCTIONS.
- Page 2 WARNING! Use the Spray Gun for the job it was designed for only. Misuse of the Spray Gun will invalidate the guarantee. WARNING! If the cordset is damaged, it must be replaced with the correct Earlex part to avoid a hazard.
- Page 3 INTRODUCTION This powerful spray system applies coatings faster than brushing or rolling whilst maintaining a smooth and accurate finish. The SprayPort series is designed for the professional decorator and finisher. The latest ® technology and materials combine to deliver a consistently high performance. The SprayPort series is simple to set up using quick-connect fixings.
-
Page 4: Parts List
SPRAYPORT TURBINE UNIT PARTS LIST No. Description Part No. Air Filter P2014 Cordset Circuit Breaker Power Inlet Connector Power Switch Air Outlet - Hose Attachment Gun Dock P2019 25ft (7.6m) Air Hose N0359... -
Page 5: Operation
PREPARATION • Unpack turbine and check all parts are present (see parts list) and undamaged. • Prepare surfaces to be sprayed ensuring they are clean, dry and smooth. • Ensure there is adequate ventilation. • Mask off all areas not intended for spraying. OPERATION •... -
Page 6: Shutting Down
• Connect cordset to a grounded outlet. • Turn the power on ‘|’ (5). • Familiarize yourself with spraying technique (for detailed instruction on how to operate spray gun refer to Spray Gun Operating Instruction Manual supplied separately) using waste cardboard. -
Page 7: Maintenance
It is important to regularly check and clean the filters, hose and turbine, paying particular attention to the air inlets and vents. Failure to do so risks damage to the motor or premature failure. Servicing and repairs must be carried out by authorized service centres only – contact Earlex Head Office for details. -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE ACTION REQUIRED Little or no spray Air inlet blocked Check the condition of the Air Filter (1) and clean or replace Check air inlets, air vents and air hose for blockages Turbine has no No power at supply Check the power supply power Cable fuse has blown... -
Page 9: Mains Connection
Your unit has been supplied with a cordset. This is identified by the fuse holder in the base of the plug. Please read the following safety instructions before use. 1. If the cordset is damaged replace with a new cordset. Please contact Earlex customer services for a replacement cordset. - Page 10 NOTES...
- Page 11 NOTES...
- Page 12 In other countries please call the company where you originally purchased the product. Earlex will not be held liable if equipment is not used solely for the purpose it was designed. Guarantee will become void through improper installation or operation. Any modifications to the...
