Loudspeaker system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner’s
Manual
MSS650 Loudspeaker System
MSS650
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903-2699
Phone: 607-723-3512
FAX: 607-724-0549

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSS650 and is the answer not in the manual?

Questions and answers

Related Manuals for McIntosh MSS650

Summary of Contents for McIntosh MSS650

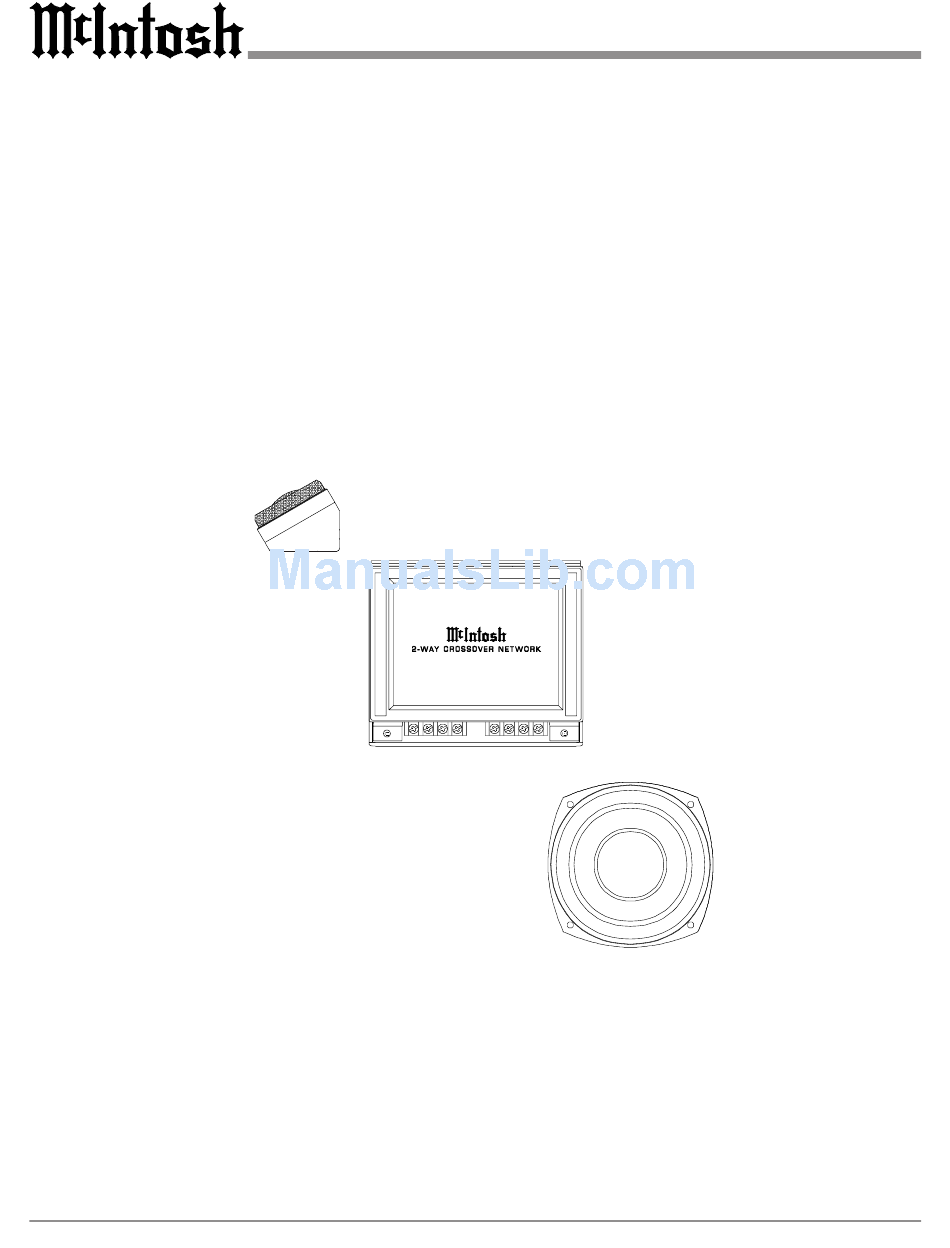

  • Page 1 Owner’s Manual MSS650 Loudspeaker System MSS650 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...

  • Page 2: Technical Assistance

    Please Take A Moment Serial Number: General Notes Purchase Date: 1. A McIntosh MSS650 Loudspeaker System consists of a pair Dealer Name: of MS650 Woofer/Midranges, a pair of MS10 Tweeters and a pair of MN650 Crossover Networks. 2. Do not exceed the power handling capacity of the MSS650 Technical Assistance Loudspeaker System.

  • Page 3: Important Safety Instructions

    Safety Instructions IMPORTANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. General: Repair of Equipment: 5. Warning: To reduce risk of fire or electrical shock, do not expose this equipment to rain or moisture. This unit is capable of producing high sound pressure levels.

  • Page 4: Performance Features

    Introduction Side View of the MS10 Tweeter Driver with Angle Mounting Bracket Performance Features · Patented Technology ® · Die Cast Aluminum Frames Side View of the MS10 Tweeter Driver · Fifteen Ounce Strontium Ferrite Magnet with Flush Mounting Bracket ·...
  • Page 5 Introduction, Performance Features and Overall Dimensions Front View of the MS650 Woofer/Midrange Driver Side View of the MN650 Crossover Network Top View of the MN650 Crossover Network Side View of the MS650 Woofer/Midrange Driver...
  • Page 6 Installation Mounting the Woofer/Midrange Mounting the Crossover Figure 2 Mounting Screw Locations Mounting Surface Figure 3 Figure 1...
  • Page 7 Installation Mounting the Tweeter Dual Angle Bracket Dual Angle Mounting Figure 4 Drill bit Bracket inside view guides for hookup cable and mounting screws Tweeter Bent push on connector Tweeter Figure 5 Dual Angle Mounting Mounting Bracket Surface 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Mounting the Tweeter Surface Bracket...
  • Page 8 How to Connect a Two Way System How to Connect a Two Way System BiAmp Jumpers - 6 dB Jumper Figure 9 Left Tweeter Right Tweeter Left Woofer/Midrange Right Woofer/Midrange Left Crossover Right Crossover Network Network McIntosh Stereo Power Amplifier...
  • Page 9 How to Connect a Bi-AmpThree Way System How to Connect a Bi-Amp Three Way System Left Tweeter Right Tweeter Left Woofer/Midrange Right Woofer/Midrange Left Crossover Right Crossover Network Network McIntosh McIntosh McIntosh Six Channel Power Amplifier Subwoofer Subwoofer...

  • Page 10: Specifications

    Specifications MS650 Woofer/Midrange Specifications MSS650 General Specifications Note: The System Sensitivity includes the Woofer/Midrange Driver, Tweeter and Crossover Network Weight MS10 Tweeter Specifications MN650 Crossover Network Specifications Mounting Dimensions MS650 Woofer/Midrange MS10 Tweeter MN650 Crossover Network...
  • Page 11 Packing Instructions Packing Instructions MS650 MS10 MS650 MN650...
