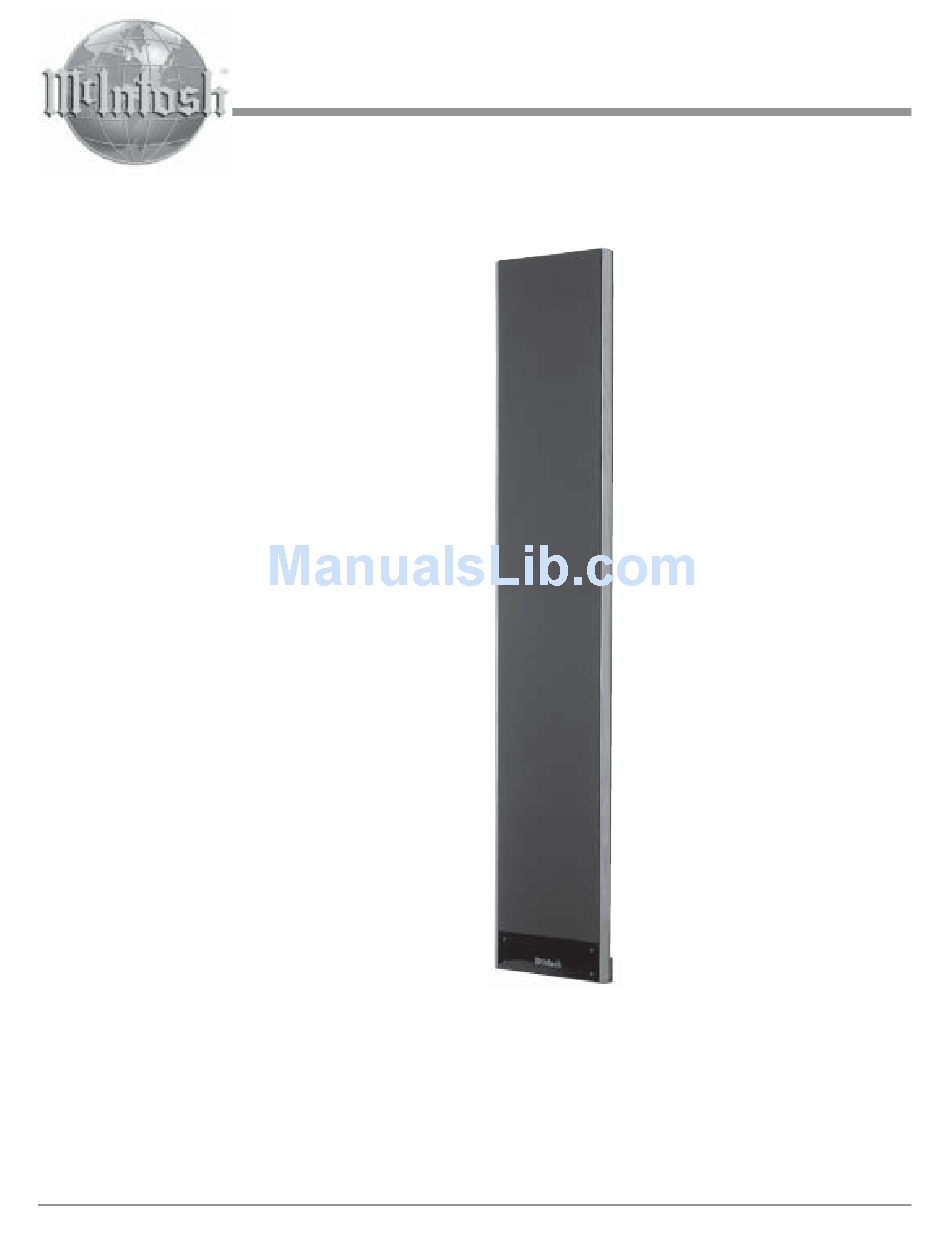

- Page 1 Owner’s Manual XRT29 Loudspeaker System XRT29 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
-
Page 2: Important Safety Instructions
16. When replacement parts are required, be sure the ser- vice technician has used replacement parts specified by McIntosh or have the same characteristics as the origi- nal part. Unauthorized substitutions may result in fire, electric shock, or other hazards. -
Page 3: Table Of Contents
This adjustment is best achieved through the use of audio test equipment operated by a qualified installer. 5. The XRT29 is designed to be used with a Subwoofer, like a McIntosh PS112, in order to hear the entire audible range of sound. -
Page 4: Introduction
Poly-Switches to provide an extra measure of LD/HP protection. The enclosure is an important part of the XRT29 Loud- Conventional speaker System. The High Frequency Column utilizes a massive extruded aluminum enclosure that houses the 30 four inch Midrange and 25 one inch Tweeter Drivers. -
Page 5: Introduction And Performance Features
Elements to prevent interference. • High Power Handling The Loudspeaker Elements and Crossover Components of the XRT29 are all chosen for use with powerful amplifiers up to 1,200 watts. • Superior Imaging Locating the Column of Tweeters between the two Columns of Midranges helps to generate a symmetrical horizontal polar response for superior imaging. - Page 6 XRT29 Column Section Dimensions The following dimensions can assist in determining the best location for your XRT29 Loudspeaker System. Front View of the XRT29 High Frequency Column " -1/4 191.14cm " -1/16 33.18cm Side View of the XRT29 High Frequency Column (without grille) "...
-
Page 7: Dimensions
Front View of the XRT29 High Frequency Column " -5/8 24.45cm " -1/2 16.51cm " -3/8 8.57cm " 11.43cm " -15/16 22.70cm -3/8 3.49cm 5.40cm " -3/4 6.99cm " -5/8 19.37cm Dimensions End View and Base of the XRT29 High Frequency Column "... -
Page 8: Installation
Follow the instructions below for unpacking and assembly. It is recommended that the Professionals at your McIntosh Dealer, who are skilled in all aspects of in- stallation and operation, install the XRT29 Loudspeaker System and any associated audio equipment. -
Page 9: Room Placement
Column. Room Placement Loudspeaker placement in a room can greatly affect performance. The XRT29 Loudspeaker is designed for both Music and Home Theater Systems. The optimal method for selecting speaker locations includes the use of a real time spectrum analyzer operated by an experienced system installer. -
Page 10: How To Connect Using A Single Amplifier
Likewise the MID and HIGH 4 (+) Binding Posts must also have a jumper installed between them. If the XRT29 Column is install into a wall, use the MID IN-WALL Binding Posts instead of the Column MID Binding Posts. - Page 11 How to Connect using a single Amplifier XRT29 Column Loudspeaker...
-
Page 12: How To Connect Using Two Amplifiers
Binding Post of the Amplifier Number One to the XRT29 Column Loudspeaker MID COMmon (-) Bind- ing Post. Note: If the XRT29 Column is installed into a wall, use the MID IN-WALL Binding Posts instead of the Column MID Binding Posts. - Page 13 How to Connect using two Amplifiers XRT29 Column Loudspeaker...
-
Page 14: Specifications
Specifications Specifications System Driver Complement Thirty 4 inch Midranges Twenty-five 1 inch Dome Tweeters Impedance 4 ohms Nominal Frequency Response 80Hz - 20kHz Sensitivity 88dB (2.8V/1m) Crossover Frequency 1,700Hz Power Handling 1200 Watts Maximum Overall Dimensions 75-1/4 inches (191.14cm) Height 11-15/16 inches (30.32cm) Width 5-3/8 inches (13.65cm) Depth Finish... -
Page 15: Packing Instruction
Use the original shipping carton and interior parts only if they are in good serviceable condition. If a shipping car- ton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labora- tory. Packing Instructions... - Page 16 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 McIntosh Part No. 04081401...
