Page 1: Loudspeaker Systems

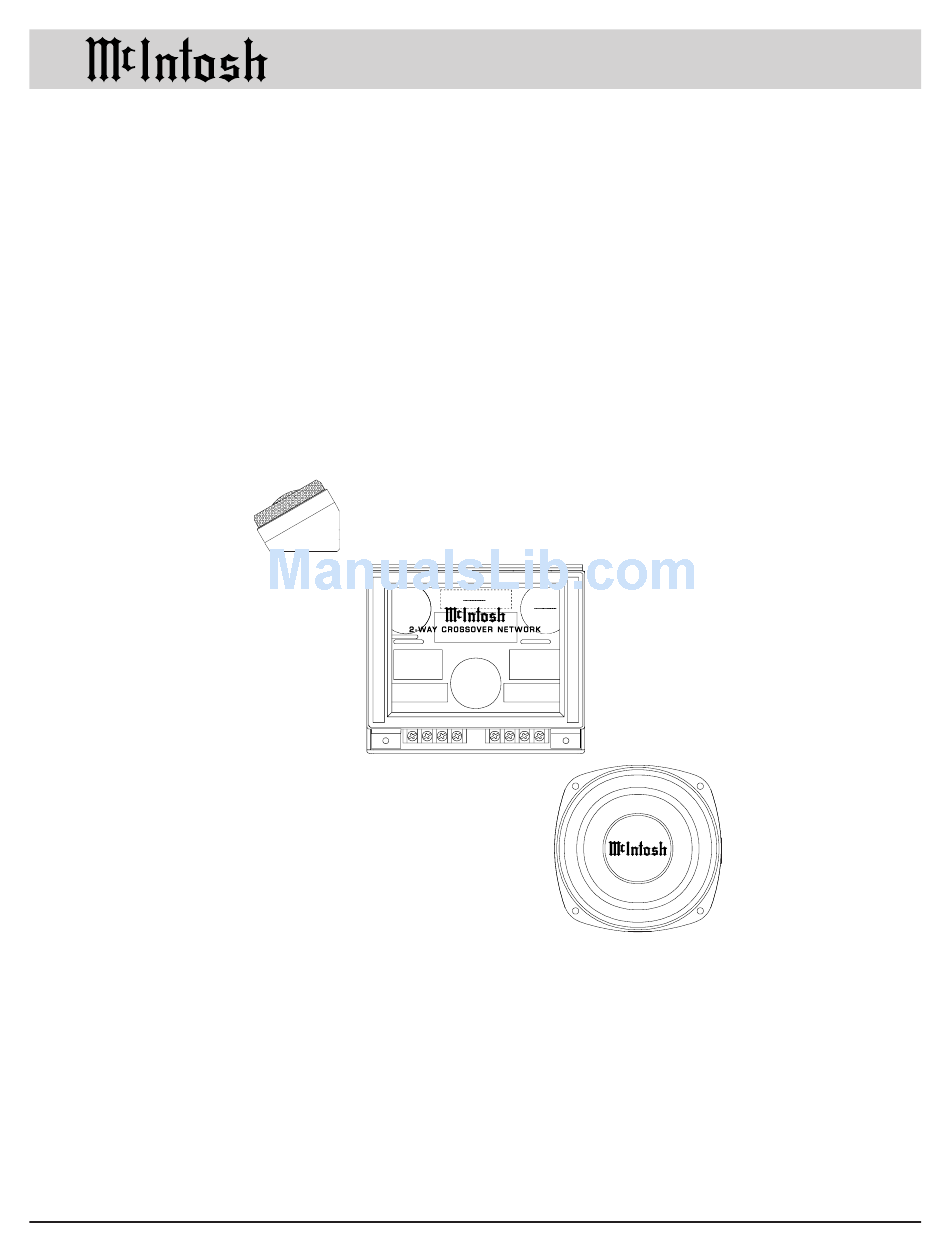

OWNER’S MANUAL MSS410 / MSS510 / MSS610 Loudspeaker Systems MSS410 MSS510 MSS610 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549... - Page 2 Table of Contents Please Take A Moment NOTES: Serial Number: 1. A McIntosh MSS Series Loudspeaker System consists of a pair of Woofer/Midrange Drivers, a pair of Tweeters and a Purchase Date: pair of matching Crossovers Networks. Refer to the section Dealer Name: in the Owner’s Manual that applies to the specific models in...
-
Page 3: Important Safety Instructions
Safety Instructions IMPORTANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. Repair of Equipment: General: 5. Warning: To reduce risk of fire or electrical shock, do not expose this equipment to rain or moisture. This unit is capable of producing high sound pres- sure levels. - Page 4 Introduction, Performance Features and Overall Dimensions Introduction Performance Features (MS440, MS540 and MS640) · Patented LD/HP Technology · Die Cast Aluminum Frames · Edge Wound Voice Coils on MTB Kapton · Fifteen Ounce Strontium Ferrite Magnet Performance Features (MN410, MN510 and MN610) ·...
- Page 5 Overall Dimensions con’t...
-
Page 6: Installation
Installation Installation Mounting the Woofer/Midrange Mounting the Crossovers Figure 2 Mounting Screw Locations Mounting Surface Figure 3 Figure 1... - Page 7 Installation, con’t Dual Angle Mounting Figure 4 Mounting the Tweeter Dual Angle Bracket Drill bit Bracket inside view guides for hookup cable and mounting screws Tweeter Bent push on connector Tweeter Figure 5 Dual Angle Mounting Mounting Bracket Surface 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 Figure 6...
- Page 8 How to Connect a Two Way System BiAmp Jumpers - 6 dB Jumper Figure 9 Left MS10 Right MS10 Left MS440, Right MS440, MS540, or MS640 MS540, or MS640 Left MN410, Right MN410, MN510, or MN510, or MN610 MN610 McIntosh Stereo Power Amplifier...
- Page 9 How to Connect a Bi-Amp Three Way System Left MS10 Right MS10 Left MS440, Right MS440, MS540, or MS640 MS540, or MS640 Left MN410, Right MN410, MN510, or MN510, or MN610 MN610 McIntosh McIntosh McIntosh Six Channel Power Amplifier Subwoofer Subwoofer...
-
Page 10: Specifications
Specifications MS440 MS540 MS640 MS10 Basic Parameters Additional Parameters Mounting Dimensions Weight MN410 MN510 MN610 Parameters Mounting Dimension Weight The System Sensitivity includes the Woofer/Midrange Driver, Crossover Network and MS10 Tweeter. -
Page 11: Packing Instructions
Packing Instructions Packing Instructions Hardware and Cable Package Hardware and Owner Manual Package Hardware and Cable Package...
