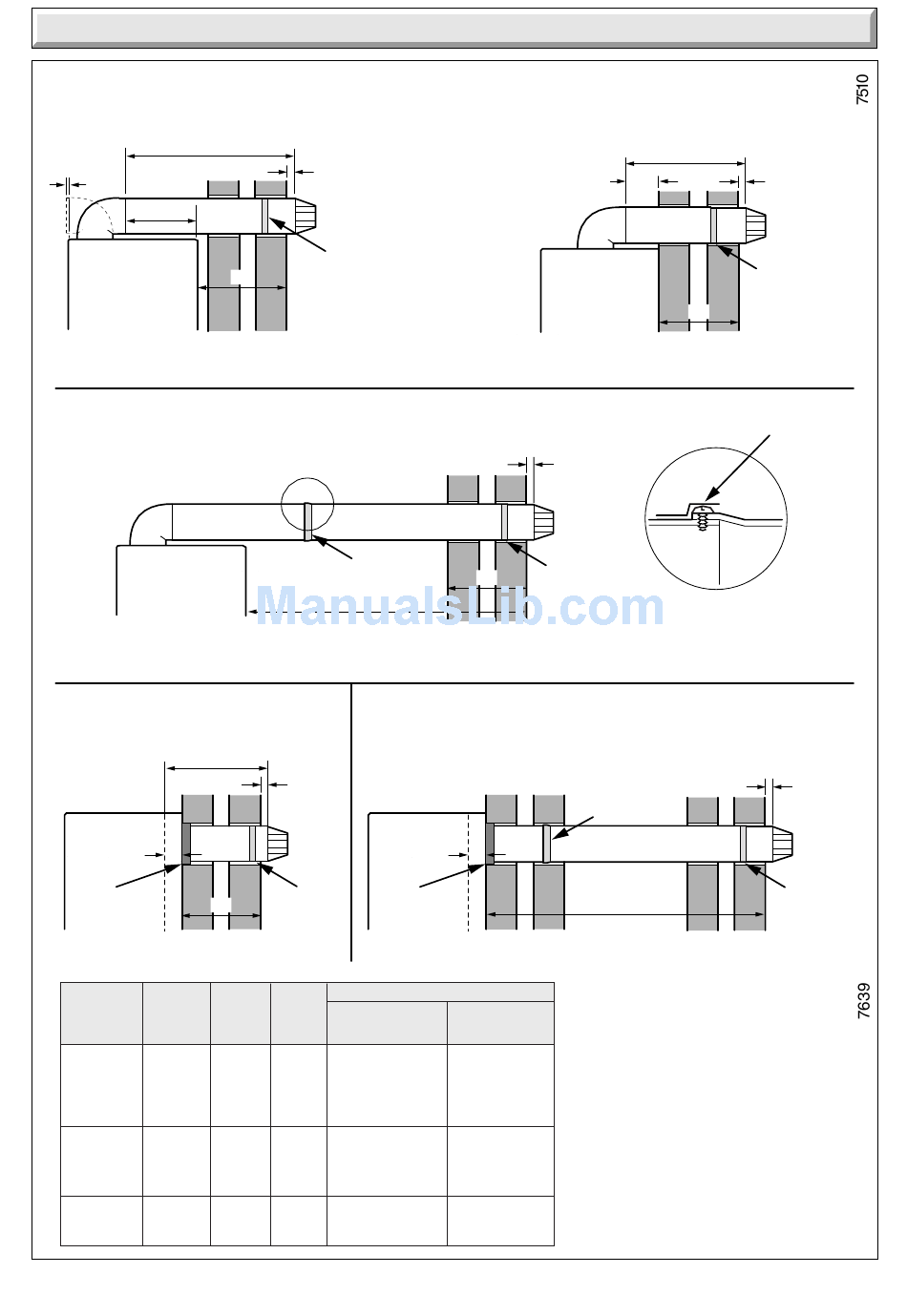

TOP OUTLET FLUE PACK
FLUE LENGTH
MAX 840mm (extd.)
MAX 570mm (std)
5mm
239mm
TOP OUTLET/
SIDE FLUE
RHD SIDE FLUE 'X' plus 254mm = FLUE LENGTH
LHD SIDE FLUE 'X' plus 10mm = FLUE LENGTH
STD./EXTD. TOP OUTLET FLUE PACK & 1 METRE EXTENSION KIT
2 x 1 metre extension kits may be joined together.
RHD SIDE FLUE 'X' plus 254mm = FLUE LENGTH
LHD SIDE FLUE 'X' plus 10mm = FLUE LENGTH
REAR OUTLET FLUE PACK
FLUE LENGTH
510mm MAX.
80mm
FOAM
SEAL
'Y' plus 95mm = FLUE LENGTH
FLUE MINIMUM
PACKS WALL
THICKNESS
TOP STD.
REAR 75
SIDE R.H.
75
SIDE L.H.
75
TOP EXTD.
75
REAR
75
SIDE R.H.
75
SIDE L.H.
REAR STD.
REAR 75
221742D

7 Flue Preparation

15mm
SCREW
& TAPE
'X'
VIEW 'B'
SCREW
& TAPE
'X'
REAR OUTLET FLUE PACK & 1 METRE EXTENSION KIT
2 x 1 metre extension kits may be joined together.
15mm
FOAM
SEAL
SCREW
'Y'
& TAPE
'Y' plus 95mm = FLUE LENGTH
MAXIMUM DISTANCE FROM
MINIMUM MAXIMUM
"Y"
FLUE FLUE
BOILER MOUNTING FACE
LENGTH LENGTH
TO EXTERNAL WALL FACE
144 570 500
334 570
90 570
144 840 770
334 840
90 840
170 510 415
TOP OUTLET/
REAR FLUE
SCREW
'Y'
& TAPE
REAR FLUE 'Y' plus 69mm = FLUE LENGTH
80mm
"X"
BOILER CASING TO
EXTERNAL WALL FACE
-
- 316
- 560
-
- 586
- 830
-
14
FLUE LENGTH
MAX 840mm (extd.)
MAX 570mm (std)
54mm
'Y'
'Y' plus 69mm = FLUE LENGTH
15mm
VIEW 'B'
SCREW
& TAPE
'Y'
NOTE :
IF IT IS NECESSARY TO CUT THE DUCTS
TO ACHIEVE THE "FLUE LENGTH" MAKE SURE
THAT THE OVERLAPS ARE AS FOLLOWS :-
THE OVERLAP FOR AIR DUCT = 25mm
THE OVERLAP FOR FLUE DUCT = 50mm
THE MAXIMUM LENGTHS CAN BE INCREASED
BY AN ADDITIONAL 2 METRES WITH THE USE
OF THE 1 METRE EXTENSION KITS.
NOTE :THIS APPLIES TO STANDARD KITS ONLY.
15mm
SCREW
& TAPE
SCREW
& TAPE
15mm
SCREW
& TAPE
Diagram 7.1
