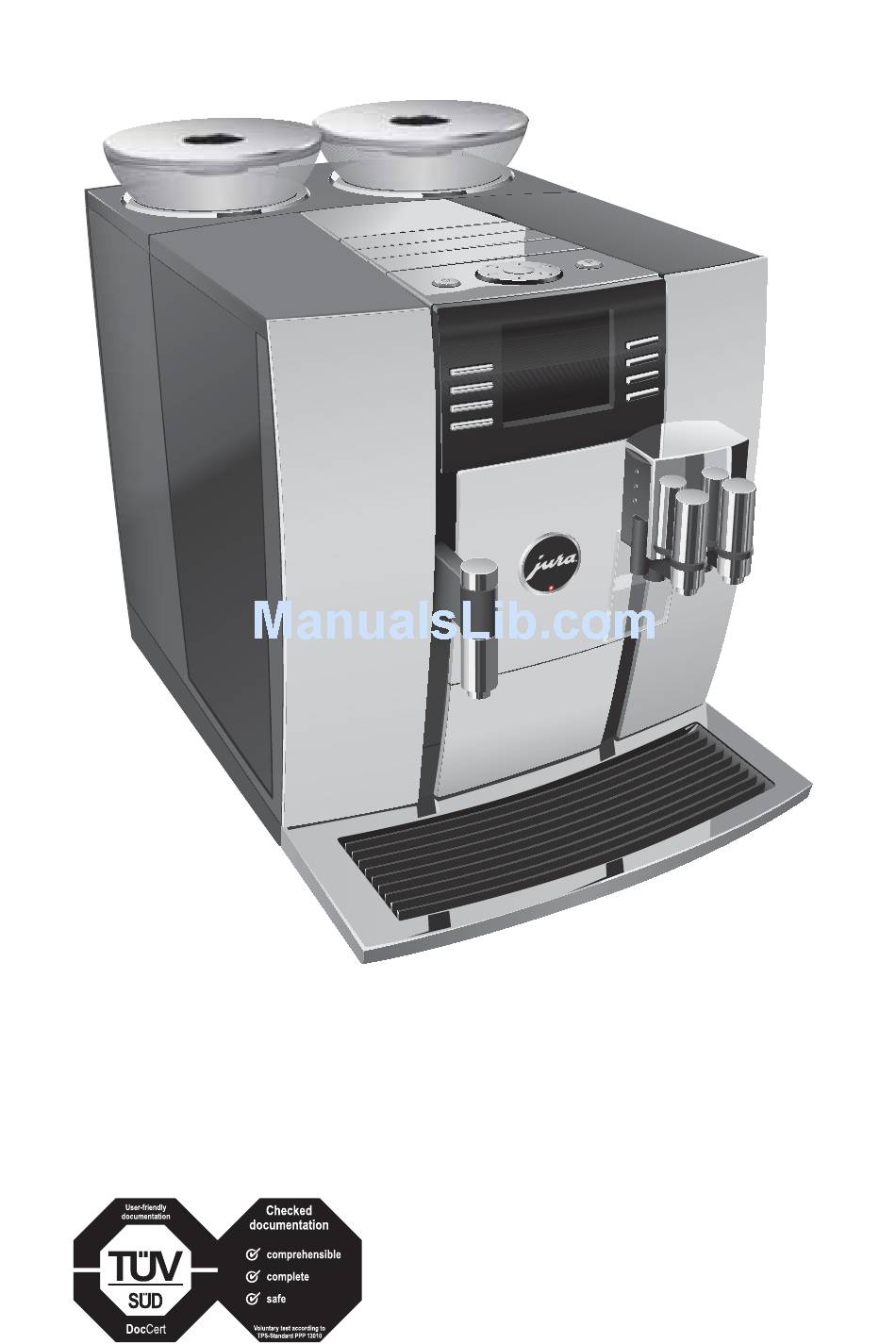

GIGA 5 Instructions for Use
The Instructions for Use has been awarded the seal of
approval by the independent German Technical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.

Advertisement

   Also See for Jura GIGA 5

   Summary of Contents for Jura GIGA 5

  • Page 1

    GIGA 5 Instructions for Use The Instructions for Use has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects.

  • Page 2: Table Of Contents

    Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................. 9 Setting up the machine ..........................9 Filling the water tank ............................ 9 Filling the bean container ...........................10 First-time use ..............................10...

  • Page 3

    8 Transport and environmentally friendly disposal Transport / Emptying the system ......................52 Disposal .................................52 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings J WARNING Always take note of any information marked with the words CAUTION or J CAUTION WARNING and a warning sign.

  • Page 4

    Control elements Control elements Bean container with aroma preservation Filler funnel for ground coffee cover Ventilation slats (Venti Ports) Bean container status indicator Storage compartment cover Water tank cover Measuring spoon for ground coffee Water tank Height- and width-adjustable dual spout Power switch and plug-in mains Splash guard cable (back of the machine)

  • Page 5: Your Giga

    Control elements Top of the machine Front On/Off button Display g Rotary Switch Multi-function buttons (button function P button (programming) depends on what is shown in the display) Back of the machine Sliding catch Service cover (Open by pressing with your finger) Service socket (underneath cover) Locking device...

  • Page 6: Important Information

    The machine is designed and intended for private domestic use. It should only be used for coffee preparation and to heat milk and water. Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibility for the con- sequences of improper use.

  • Page 7

    GIGA. Further technical data is provided in these instructions for use (see Chapter 9 ‘Tech- nical data’). Please only use original JURA maintenance products. Use of products that are not explicitly recommended by JURA could damage the GIGA.

  • Page 8

    Important information People, including children, who do not have the physical, sensory or mental capabilities to use the machine safely or are inexperienced or lack knowledge in how to use the machine safely must be supervised by a responsible person when using it, or must be instructed in how to use it correctly.

  • Page 9: Preparing And Using For The First Time

    JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your GIGA and on every aspect of coffee.

  • Page 10: Filling The Bean Container

    1 Preparing and using for the first time Filling the bean container The bean containers have an aroma preservation cover. This will ensure that your coffee beans retain their aroma for longer. CAUTION Coffee beans which have been treated with additives (e.g. sugar), ground coffee or freeze-dried coffee will damage the grinders.

  • Page 11

    3 T Switch on the GIGA using the power switch on the back of the machine. Q T Press the On/Off button to switch the GIGA on. ‘Welcome to JURA’ appears on the display. The display then shows the languages you can choose from.

  • Page 12

    T Press the Rotary Switch. ‘System is filling.’, the system fills up with water. The opera- tion stops automatically. ‘Welcome to JURA’, ‘Machine is heating.’, ‘Press the Rotary Switch.’ appears on the display. k T Press the Rotary Switch.

  • Page 13

    T Empty the drip tray and coffee grounds container and put them back into the machine. ‘Filter’ ‘Filter rinsing complete.’ ‘Welcome to JURA’, ‘Machine is heating.’, ‘Press the Rotary Switch.’. k T Press the Rotary Switch. ‘Machine is rinsing.’, the machine rinses.

  • Page 14: Determining The Water Hardness

    1 Preparing and using for the first time T Place a receptacle under the dual spout. k T Press the Rotary Switch. ‘Machine is rinsing.’, the machine rinses. The operation stops automatically. ‘Please select product:’ appears on the display. Your GIGA is ready for use. Determining the water You can find out what the water hardness is by using the Aquadur®...

  • Page 15: Preparation

    – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –...

  • Page 16: Preparation At The Touch Of A Button

    2 Preparation Preparation at the touch On the display (start screen), you will see different products, which of a button you can prepare by simply pressing the corresponding button. Speciality coffees at the A speciality coffee displayed on the start screen is always prepared touch of a button in the same way.

  • Page 17: Preparation Using The Product Selector

    2 Preparation Preparation using the As soon as you turn the Rotary Switch, more products are displayed product selector in a product selector. E The product selector view disappears automatically after 5 seconds if no preparation is started. Preparation of a speciality Example: Proceed as follows to prepare a milky coffee using the coffee using the product product selector.

  • Page 18: Permanently Setting Amounts For The Cup Size

    2 Preparation Example: Proceed as follows to prepare one coffee using ground coffee. Precondition: ‘Please select product:’ is displayed. T Place a cup under the dual spout. T Open the cover of the filler funnel for ground coffee. ‘Please add ground coffee.’ T Place one level measuring spoon of ground coffee into the filler funnel.

  • Page 19: Activating The Grinder Selection

    2 Preparation T Press any button as soon as there is sufficient coffee in the cup. Preparation stops. ‘Saved’ appears briefly on the display. The set amount of water for one coffee is permanently stored. ‘Please select product:’ appears on the display. E You can alter this setting at any time by repeating the above procedure.

  • Page 20: Hot Water

    2 Preparation Preparation of a speciality Example: Proceed as follows to prepare a coffee with coffee beans coffee with grinder from the grinder on the left. selection Precondition: ‘Please select product:’ is displayed. ‘Beans à la carte’ mode is activated. T Place a cup under the dual spout.

  • Page 21: Daily Operation

    Precondition: Your GIGA is switched on at the power switch. T Place a receptacle under the dual spout. Q T Press the On/Off button to switch the GIGA on. ‘Welcome to JURA’ appears on the display. The machine heats up.

  • Page 22: Switching Off

    3 Daily operation Switching off When you switch off your GIGA, the dual spout is rinsed automati- cally. Precondition: ‘Please select product:’ is displayed. T Place a receptacle under the dual spout. Q T Press the On/Off button. ‘Machine is rinsing.’, ‘Milk system is being rinsed.’...

  • Page 23: Permanent Settings In Programming Mode

    4 Permanent settings in programming mode 4 Permanent settings in programming mode Possible settings in Press the P button to enter programming mode. You can navigate programming mode through the programme items and permanently save the required settings simply by turning the Rotary Switch and using the multi- function buttons.

  • Page 24: Product Settings

    4 Permanent settings in programming mode Product settings In the programme item ‘Product settings (2/5)’ you can make indi- vidual settings for all speciality coffees, milk and hot water. Expert mode The following settings can be made in the ‘Expert mode’: Product Coffee strength...

  • Page 25

    4 Permanent settings in programming mode Example: Proceed as follows in the ‘Expert mode’ to change the amount of milk for a latte macchiato from ‘4 sec.’ ‘6 sec.’, the amount of milk foam from ‘12 sec.’ ‘14 sec.’ and the amount of water from ‘45 ml’...

  • Page 26: Setting The Consistency Of Grind

    4 Permanent settings in programming mode Setting the consistency In the programme item ‘Product settings (2/5)’ ‘Set consistency of of grind grind’ you can adjust both grinders separately to the degree of roast of your coffee. The consistency of grind setting is correct if the coffee flows regu- larly from the dual spout.

  • Page 27

    4 Permanent settings in programming mode ‘Rinse the milk system’ ‘Manual after 10 min.’ You are prompted to rinse the milk system 10 minutes after preparation of a speciality coffee with milk. ‘Rinse the milk system’ ‘Manual immediate’ You are prompted to rinse the milk system immediately after preparation of a speciality coffee with milk.

  • Page 28: Setting The Water Hardness

    4 Permanent settings in programming mode Setting the water The harder the water is, the more frequently the GIGA needs to be hardness descaled. It is therefore important to adjust the water hardness. The water hardness can be adjusted on a continuous scale between 1°...

  • Page 29: Time And Date

    4 Permanent settings in programming mode Example: Proceed as follows to change the energy-saving mode from ‘Save Level 1’ ‘Save Level 2’. Precondition: ‘Please select product:’ is displayed. T Press the P button. ‘Maintenance status (1/5)’ g T Turn the Rotary Switch until the programme item ‘Machine settings (3/5)’...

  • Page 30: Timer

    4 Permanent settings in programming mode T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Time / date’ T Press the P button to exit programming mode. ‘Please select product:’ Timer In the programme item ‘Machine settings (3/5)’ ‘Timer’...

  • Page 31: Automatic Switch-off

    4 Permanent settings in programming mode T Press the ‘Every weekday’ button. ‘Saved’ appears briefly on the display. The switch-on and switch-off times you just set are adopted for every day of the week. ‘Timer’ T Press the P button to exit programming mode. ‘Please select product:’...

  • Page 32: Units

    4 Permanent settings in programming mode Units In the programme item ‘Machine settings (3/5)’ ‘Units’ you can make the following settings: Unit for amount of water: ‘ml’ ‘oz’ Time format: ‘24 hrs.’ ‘AM / PM’ Example: Proceed as follows to change the unit for the amount of water from ‘ml’...

  • Page 33: Language

    4 Permanent settings in programming mode g T Turn the Rotary Switch until the programme item ‘Machine settings (3/5)’ is displayed. T Press the ‘Factory setting’ button. ‘Factory setting’ T Press the ‘All products’ button. ‘All products’ ‘Reset all products to the factory settings?’ T Press the ‘Yes’...

  • Page 34: Display Settings

    4 Permanent settings in programming mode Display settings In the programme item ‘Machine settings (4/5)’ ‘Display’ you can make the following settings: ‘Brightness’ (as percentages) ‘Contrast’ (high, normal, low) ‘Backlight’ (backlighting; as percentages) Example: Proceed as follows to change the brightness of the display. Precondition: ‘Please select product:’...

  • Page 35: Querying Information

    4 Permanent settings in programming mode Querying information In the programme item ‘Information (5/5)’ you can view the follow- ing information: ‘Product counter’: Number of prepared coffee speciality cof- fees, speciality coffees with milk and hot water ‘Maintenance counter’: Number of maintenance programmes performed (cleaning, descaling, changing the filter etc.) ‘Version’: Software version Precondition:...

  • Page 36: Maintenance

    5 Maintenance 5 Maintenance Your GIGA has the following integrated maintenance programmes: Rinsing the coffee system (‘Rinse the coffee system’) Rinsing the milk system in the dual spout (‘Rinse the milk system’) Cleaning the milk system in the dual spout (‘Clean the milk system’) Changing the filter...

  • Page 37: Rinsing The Milk System

    If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water. Use only original JURA maintenance products. E JURA Cappuccino Cleaner is available from specialised dealers. Precondition: ‘Please select product:’...

  • Page 38: Dismantling And Rinsing The Dual Spout

    5 Maintenance T Place another receptacle under the dual spout. T Press the ‘Next’ button. ‘Milk system is being cleaned.’, water flows out of the dual spout. ‘Water for cleaning milk system.’ T Rinse the receptacle thoroughly, fill it with 250 ml of fresh water and immerse the milk pipe in the water.

  • Page 39

    T Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in JURA Cappuccino Cleaner and then rinse them thor- oughly. T Reassemble the milk system. When doing this, note the...

  • Page 40

    5 Maintenance T Fit the air intake pipe. T Fit the assembled individual parts back in the dual spout and press it firmly. T Attach the bottom part of the milk system to the part already inserted from below. T Fit the cover of the dual spout. It will click into place audibly. T Insert the milk pipe into the dual spout.

  • Page 41: Inserting And Activating The Filter

    5 Maintenance Inserting and activating Your GIGA no longer has to be descaled if you are using the CLARIS the filter Blue filter cartridge. If the water hardness is 10° dH or more, we rec- ommend using the filter cartridge. If you do not know the hardness of your water, you can find this out first (see Chapter 1 ‘Preparing and using for the first time –...

  • Page 42: Changing The Filter

    5 Maintenance T Empty the drip tray and coffee grounds container and put them back into the machine. ‘Filter’ ‘Filter rinsing complete.’ The machine heats up. ‘Please select product:’ appears on the display. Your GIGA is once more ready for use. Changing the filter E After 50 litres of water have flowed through or after two months, the filter will cease to work.

  • Page 43: Cleaning The Machine

    ‘Add cleaning tablet.’. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. ‘Press the Rotary Switch.’ k T Press the Rotary Switch.

  • Page 44: Descaling The Machine

    Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from specialised dealers. E If you use a CLARIS Blue filter cartridge and this is activated, you will not be prompted to descale.

  • Page 45

    ‘Pour descaling agent into water tank.’ T Remove and empty the water tank. T Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a receptacle holding 600 ml of water. This may take several minutes.

  • Page 46: Cleaning The Bean Container

    T Turn the blue locking device inwards. T Pull the red sliding catch completely forwards. T Refit the service cover and fix it by pressing above the JURA logo. It will click into place audibly. T Fill the bean container with coffee beans and close the...

  • Page 47: Descaling The Water Tank

    5 Maintenance Descaling the water tank Limescale deposits may form in the water tank. To ensure correct function of the machine, descale the water tank from time to time. T Remove the water tank. T If you use a CLARIS Blue filter cartridge, remove this. T Descale the tank with a mild conventional descaling agent in accordance with the manufacturer's instructions.

  • Page 48: Display Messages

    6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank.’ The water tank is empty. You cannot T Fill the water tank (see Chapter 1 prepare any products. ‘Preparing and using for the first time – Filling the water tank’). ‘Empty coffee The coffee grounds container is full.

  • Page 49

    ‘Please check the The ventilation slats on the top of T Contact customer support in your ventilation slats.’ the machine cannot be opened. country (see Chapter 11 ‘JURA You cannot prepare any products. contact details / Legal information’).

  • Page 50: Troubleshooting

    7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action Insufficient foam is The dual spout is dirty. T Rinse and clean the dual spout (see produced when the milk Chapter 5 ‘Maintenance – Cleaning is frothed, or milk sprays the milk system’). from the dual spout.

  • Page 51

    Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).

  • Page 52: Transport And Environmentally Friendly Disposal

    8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the In order to protect the GIGA from frost during transport, the system system must be emptied. Precondition: ‘Please select product:’ is displayed. T Place one receptacle under the dual spout and another under the hot-water spout.

  • Page 53: Technical Data

    32  41.5  48 cm Information for testers (repeat test in accordance with DIN VDE 0701-0702): The central grounding point (CGP) is located on the back of the machine below the JURA logo (remove service cover, turn JURA logo anti-clockwise).

  • Page 54: Index

    Index 10 Index Cup grille 4 Customer support 59 Addresses 59 Aroma preservation cover Bean container with aroma preservation Date 29 cover 4 Descaling Automatic switch-off 30, 31 Machine 44 Automatic switch-on 30 Water tank 47 Display 5 Display messages 48 Background 34 Display settings 34 Bean container...

  • Page 55

    Instant coffee At the touch of a button 16 Ground coffee 17 Cappuccino 15 Internet 9 Coffee 15 Espresso 15 JURA Ground coffee 17 Contact details 59 Hot water 20 Internet 9 Latte macchiato 15 Ristretto 15 Two speciality coffees 16...

  • Page 56

    Index Querying information 35 Technical data 53 Quick installation 11 Tel 59 Quick mode 24 Time 29 Time format Programming mode 32 Rinsing the coffee system 36 Timer 30 Ristretto 15 Transport 52 Rotary Selection 15 Troubleshooting 50 Product selector 17 Two products 16 Rotary Switch 5 Units 32...

  • Page 59: Jura Contact Details / Legal Information

    11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. Directives The machine complies with the following directives: 2006/95/EC –...

  • Page 60

    11 JURA contact details / Legal information Checklist for first-use training Preparation Control options Checking the scope of supply Operation using the multi-function buttons Setting up and connecting the machine Operation with the Rotary Switch Filling with coffee beans Demonstrating the beans à la carte function...
