(Type 768)
Instructions for Use

Advertisement

Table of Contents
loading

Summary of Contents for Jura 768

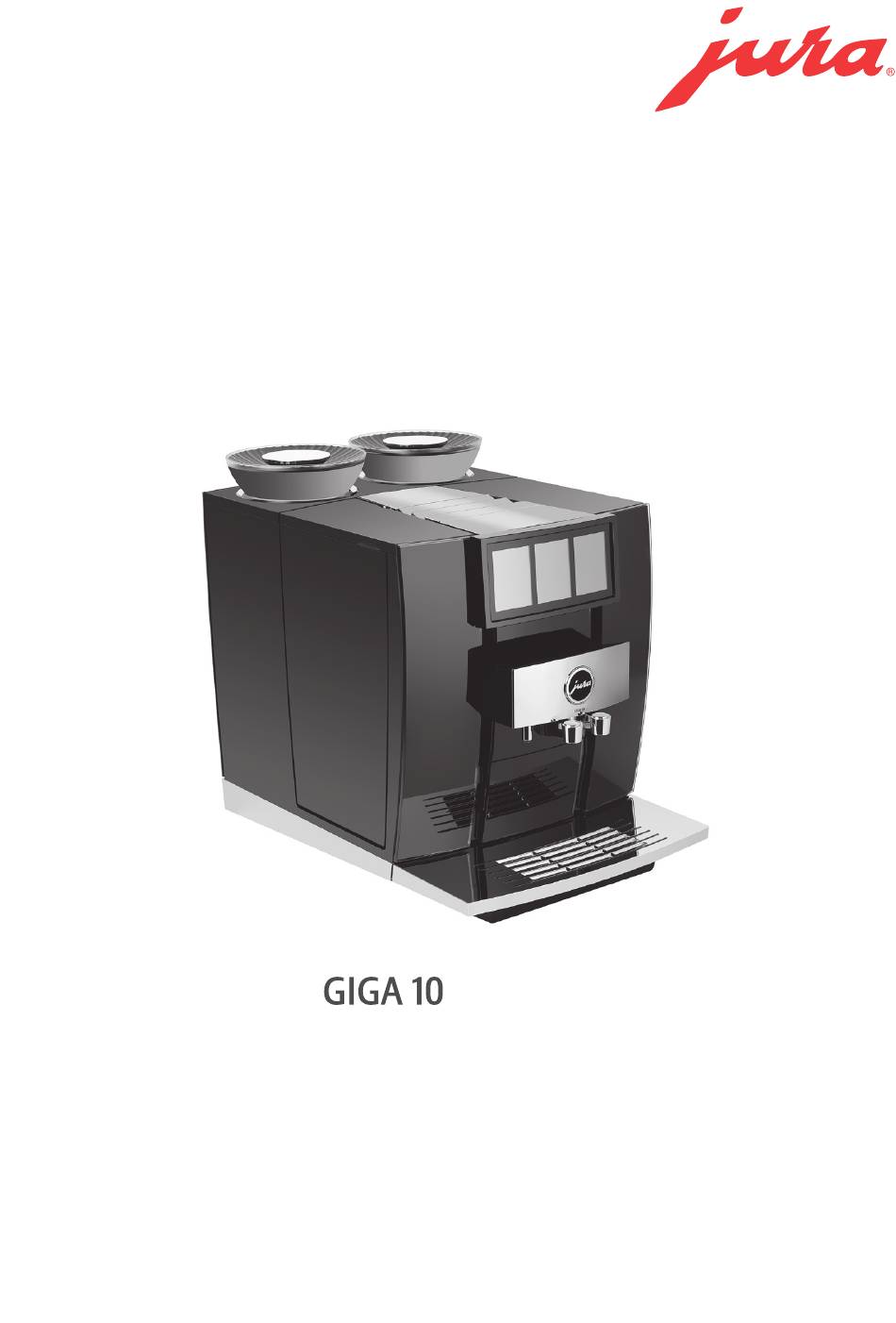

  • Page 1 (Type 768) Instructions for Use...
  • Page 2: Table Of Contents

    Setting up the machine ������������������������������������������������������������������������������������������� Filling the bean container ����������������������������������������������������������������������������������������� Determining the water hardness �������������������������������������������������������������������������������� First-time use ��������������������������������������������������������������������������������������������������������� Managing your GIGA – the JURA Cockpit �������������������������������������������������������������������� Connecting milk ����������������������������������������������������������������������������������������������������� 4 Preparation ���������������������������������������������������������������������������������������������������������� Preparation with preselection (Aroma Selection) ����������������������������������������������������������� Cold Brew �������������������������������������������������������������������������������������������������������������...
  • Page 3 Cleaning the bean container ������������������������������������������������������������������������������������ 8 Display messages ������������������������������������������������������������������������������������������������� 9 Troubleshooting ���������������������������������������������������������������������������������������������������� 10 Transport and environmentally friendly disposal ������������������������������������������������������� Transport / Emptying the system ������������������������������������������������������������������������������ Disposal �������������������������������������������������������������������������������������������������������������� 11 Technical data ������������������������������������������������������������������������������������������������������ 12 Index ������������������������������������������������������������������������������������������������������������������ 13 JURA contact details / Legal information �������������������������������������������������������������������...
  • Page 4: Control Elements

    1 Control elements 1 Control elements Bean container with aroma preservation cover Storage compartment cover Measuring spoon for ground coffee Ventilation slats Touch display Height- and width-adjustable dual spout Coffee grounds container cover (pivoting) Insert for drip tray Cup grille Drip tray Coffee grounds container Hot-water spout...
  • Page 5 1 Control elements Filler funnel cover Filler funnel for ground coffee On/Off button Q (under cover) Service cover (open by pressing with your finger) Locking device Sliding catch Service socket with JURA WiFi Connect Container for milk system cleaning...
  • Page 6: For Your Safety

    When using the CLARIS Smart filter cartridge or a JURA WiFi Connect, wireless connections are estab- lished� Specific details on the frequency band used...
  • Page 7: Use By Children

    Only then should you remove the mains plug from the power socket� Replace a damaged plug-in mains cable with an original JURA mains cable� Unsuitable mains cables may result in consequential damage� Preventing damage To avoid damage to the machine and the mains...
  • Page 8 On/Off button Q and at the power switch and remove the mains plug from the power socket� Only use original JURA maintenance products� Use of products that are not explicitly recom- mended by JURA could damage your GIGA�...
  • Page 9: Danger Of Electric Shock

    2 For your safety Danger of electric Water conducts electricity. Do not bring water shock and electricity into contact with one another: Never touch the mains plug with wet hands� Do not immerse the GIGA and/or mains cable in water� Do not put the GIGA or any individual parts in the dishwasher�...
  • Page 10: Preparing And Using For The First Time

    3 Preparing and using for the first time 3 Preparing and using for the first time Setting up the machine When setting up your GIGA, please note the following: Place the GIGA on a horizontal surface that is not sensitive to water�...
  • Page 11: First-Time Use

    3 Preparing and using for the first time First-time use WARNING If the machine is operated with a defective mains cable, there is a danger of potentially fatal electric shock�   Never use a machine which is damaged or has a defective mains cable�...
  • Page 12   Touch ‘Next’� ‘Connections’ ‘Wi-Fi connection’ E The GIGA is fitted with JURA WiFi Connect� If you want to use the GIGA in conjunction with the JURA app J�O�E� , scan the ® QR code to download J�O�E�...
  • Page 13: Managing Your Giga - The Jura Cockpit

    3 Preparing and using for the first time Managing your GIGA – the The JURA Cockpit allows you to manage your GIGA� Touch the time JURA Cockpit area at the top to open the JURA Cockpit� Symbol Meaning ‘Machine settings’ area (green) ‘Maintenance’...
  • Page 14: Preparation

    E If the screensaver is active, touch the display to return to the start screen� E Coffee tastes best served hot� A cold porcelain cup cools the beverage – and impairs the taste� We therefore recommend prewarming the cups� You can purchase a JURA cup warmer from your specialised dealer�...
  • Page 15: Preparation With Preselection (Aroma Selection)

    4 Preparation Preparation with With the Aroma Selection function on your GIGA, you can change preselection (Aroma the coffee strength of any given product before preparing it� You Selection) can also choose which bean container is used to prepare a coffee and select additional settings: ‘Cold Brew’...
  • Page 16: Espresso And Coffee

    4 Preparation Espresso and coffee Example: Coffee   Place a cup under the dual spout�   Touch ‘Coffee’� The preset amount of water for coffee flows into the cup� Latte macchiato, cappuccino Your GIGA prepares the following speciality coffees with milk at the and other speciality coffees touch of a button: with milk...
  • Page 17: Espresso Doppio

    4 Preparation Espresso doppio ‘Doppio’ is Italian for ‘double’� When you select Espresso doppio, two espressi are prepared one after the other� The result is an extra full-bodied and aromatic speciality coffee� Americano and lungo For the americano and lungo, the GIGA blends the coffee with hot water using a special preparation method�...
  • Page 18: Hot Water

    4 Preparation Hot water The GIGA allows you to prepare different variants of hot water: ‘Hot water’ ‘Hot water for green tea’ (Product must be added to the start screen� To do this, tap and hold any product for 2 seconds, then use the ‘Replace product’...
  • Page 19: Daily Operation

    5 Daily operation 5 Daily operation Switching the machine on and off   Place a receptacle under the dual spout�   Open the cover of the On/Off button�   Press the On/Off button Q� ‘Machine is rinsing’ Your GIGA is switched on or off� E When the machine is switched off, the system is only rinsed if a speciality coffee has been prepared�...
  • Page 20: Maintenance Actions

    5 Daily operation Maintenance actions Optimal coffee quality depends on many factors� One important prerequisite is regular maintenance of your GIGA� Carry out the fol- lowing steps: Maintenance action Daily If necessary Note Empty the drip tray and coffee Always empty the coffee grounds grounds container and rinse with container when the machine is warm water...
  • Page 21: Machine Settings

    ‘Connections’ ‘Wi-Fi connection’ Establish a wireless connection between your GIGA (only displayed if and the JURA app J�O�E� or disconnect it again ® JURA WiFi ‘Connect accessory’ Establish a wireless connection between your GIGA...
  • Page 22: Maintenance

    If a maintenance programme needs to be initiated, the time area on the start screen appears with a red background� Touch the time area to open the JURA Cockpit� Here, maintenance programmes that need to be carried out are shown in the form of messages with red backgrounds�...
  • Page 23: Dismantling And Rinsing The Dual Spout

    7 Maintenance Precondition: The start screen is displayed�   Touch the time area to open the Cockpit�   Touch ‘Clean the milk system’�   Touch ‘Next’� ‘Cleaning agent for milk system’ ‘Connect the milk tube’   Remove the milk pipe from the milk container or milk cooler�  ...
  • Page 24   Rinse all the parts under running water� If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml water and one dosing unit of JURA milk system cleaner� Then rinse the individual parts thoroughly�...
  • Page 25: Inserting/Changing The Filter

    E The cleaning programme lasts approximately 20 minutes� E Do not interrupt the cleaning programme� The quality of cleaning will be impaired if you do so� E JURA cleaning tablets are available from specialised dealers� Precondition: ‘Clean’ is displayed in the Cockpit�...
  • Page 26: Descaling The Machine

    The operation is interrupted, ‘Add cleaning tablet’�   Open the cover of the filler funnel for ground coffee�   Insert a JURA cleaning tablet into the filler funnel�   Close the cover of the filler funnel�   Touch ‘Next’� ‘Machine is being cleaned’, water flows out of the dual spout...
  • Page 27 If the descaling agent comes into contact with sensitive surfaces (e�g� marble), damage cannot be ruled out�   Clean up any splashes immediately� E The descaling programme lasts approximately 45 minutes� E JURA descaling tablets are available from specialised dealers� Precondition: ‘Descale’ is displayed in the Cockpit�   Touch ‘Descale’�...
  • Page 28: Performing A Self-Diagnosis

      Remove the water tank�   If you use a CLARIS Smart filter cartridge, remove this�   Completely fill the water tank and dissolve 3 JURA descaling tab- lets in it�   Leave the water tank with the descaling solution for several hours (e�g�...
  • Page 29   Turn the blue locking device inwards�   Pull the red sliding catch completely forwards�   Refit the service cover and fix it by pressing above the JURA logo� It will click into place audibly�   Fill the bean container with coffee beans and close the aroma...
  • Page 30: Display Messages

    8 Display messages 8 Display messages Messages on the start screen Message Cause/Result Action ‘Fill water tank’ The water tank is empty� You cannot Fill the water tank (see chapter 5 prepare any products� ‘Daily operation – Filling the water tank’)�...
  • Page 31: Troubleshooting

    Grinder is making a very There are foreign objects Contact customer support in your loud noise� in the grinder� country (see chapter 13 ‘JURA contact details / Legal information’)� ‘Error 2’ ‘Error 5’ If the machine has been Warm the machine at room tempera- displayed�...
  • Page 32: Transport And Environmentally Friendly Disposal

    (see chapter 13 ‘JURA contact details / Legal information’)� E If you were unable to solve the problem, contact customer support in your country (see chapter 13 ‘JURA contact details / Legal information’)� 10 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your GIGA�...
  • Page 33: Technical Data

    Interchangeable milk spout CLARIS filter cartridge Smart (RFID technology) Frequency band 13�56 MHz Max� transmission power < 1 mW JURA WiFi Connect Frequency band 2�4 GHz Max� transmission power < 100 mW JURA type Information for testers (repeat test in accordance with DIN VDE 0701-0702): The central grounding point (CGP) is located under the cover of the storage compartment�...
  • Page 34 12 Index 12 Index Declaration of Conformity 36 Descaling Machine 26 Water tank 28 Addresses 36 Diagnosis 28 Adjusting the product settings 18 Display Americano 17 Cockpit 13 Aroma preservation cover Touch display 4 Bean container with aroma preservation Display messages 30 cover 4 Disposal 32 Aroma Selection...
  • Page 35 12 Index Product settings Adjusting 18 JURA Proper use 6 Contact details 36 RFID 33 Latte macchiato 16 Rinsing Locking device 5 Machine 22 Lungo 17 Safety information 6 Macchiato 16 Self-diagnosis 28 Machine Service cover 5 Cleaning 25 Service socket 5...
  • Page 36 J75111/GIGA 10 /en/202208 (EA/SA/INTA) 13 JURA contact details / Legal information 13 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel� +41 (0)62 38 98 233 E You can find additional contact details for your country at jura.com.

This manual is also suitable for:

Giga 10
