Husqvarna H346SL Owner's Manual

46 inch mower grass catcher
Hide thumbs

Advertisement

Quick Links

532413532 03.05.07 BY
OWNER'S MANUAL
Model Number H346SL
Product No. 960 73 00-12
(MFG. ID. No. 96073001200)
46 Inch Mower
Grass Catcher
Assembly
Operation
Customer Responsibilities
Repair Parts
Printed in U.S.A.

Advertisement

Table of Contents
loading

  Also See for Husqvarna H346SL

  Related Manuals for Husqvarna H346SL

  Summary of Contents for Husqvarna H346SL

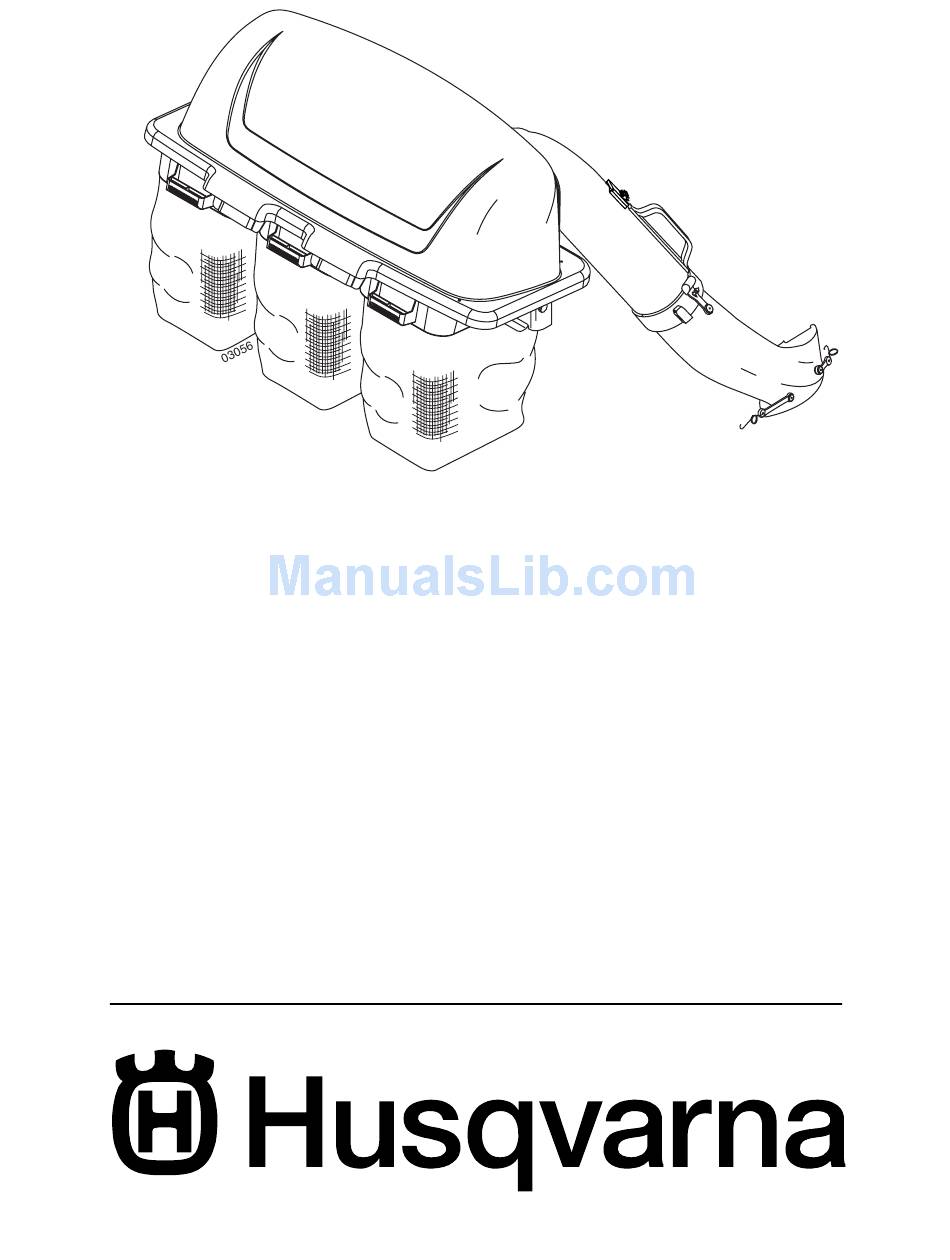

  • Page 1 OWNER’S MANUAL Model Number H346SL Product No. 960 73 00-12 (MFG. ID. No. 96073001200) 46 Inch Mower Grass Catcher • • • • 532413532 03.05.07 BY Assembly Operation Customer Responsibilities Repair Parts Printed in U.S.A.
  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug...
  • Page 3: Table Of Contents

    Safe Operation Practices for Ride-On Mowers IV. TOWING • Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point. • Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes. •...
  • Page 4 KNOW YOUR GRASS CATCHER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS CATCH ER. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to prevent injury to yourself and others.
  • Page 5: Assembly

    BAGGER SUPPORT ASSEMBLY (See Fig. 1) 1. Remove and discard the upper bolt on both sides of the drawbar. Using the same holes, install the shoulder bolts supplied and tighten securely. 2. Align support assembly pin with hole in drawbar and hang assembly over the shoulder bolts.
  • Page 6 CONTAINER MOUNTING (See Fig. 3) 1. Install one container to left side fi rst. Install another container to center position and one in right position. NOTE: Left edge of right con tain er should always over lap right edge of left con tain er at center supports. 2.
  • Page 7 UPPER CHUTE (See Figs. 5A and 5B) 1. Lower mower to its lowest cutting position. 2. Assemble upper chute by inserting curved end into hole in back of cover. TIP: Holding upper chute as shown and twisting while installing in cover will help keep the rubber seal in place. NOTE: Handle carefully so as not to damage full bag in di - ca tor.
  • Page 8: Operation

    TIPS FOR IMPROVED BAGGING OPE RA TION: Follow the mower operation instructions in your tractor owner's manual. When operating your grass catcher on a lawn where grass and leaf bagging equipment has not been used, you are picking up thatch and debris that has accumulated for long periods of time.
  • Page 9: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES GENERAL RECOMMENDATIONS Always observe safety rules when performing any main- te nance. • Before each use check for loose fasteners. • Clean unit thoroughly after each use. BLADE CARE For best results mower blades must be kept sharp. Re place bent or damaged blades.
  • Page 10: Repair Parts

    REPAIR PARTS GRASS CATCHER - MODEL NUMBER H346SL (PRODUCT NO. 960 73 00-12) PART DESCRIPTION 532069180 Nut, Crown lock #10-24 532127533 Screen, Cover 532193010 Cover Assembly (Includes 34 & 37) 532411397 Chute, Upper 818021008 Screw, Special #10-14x1/2 532130933 Full Bag Indicator...
  • Page 11: Warranty Statement

    It is the Owner’s and Retailer’s responsibility to make certain that the Warranty Registration Card is properly filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase in order to confirm the warranty and to facilitate post-sale service.
